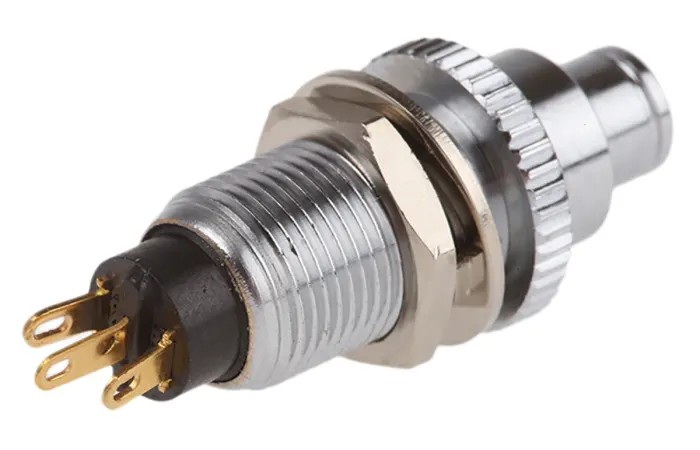

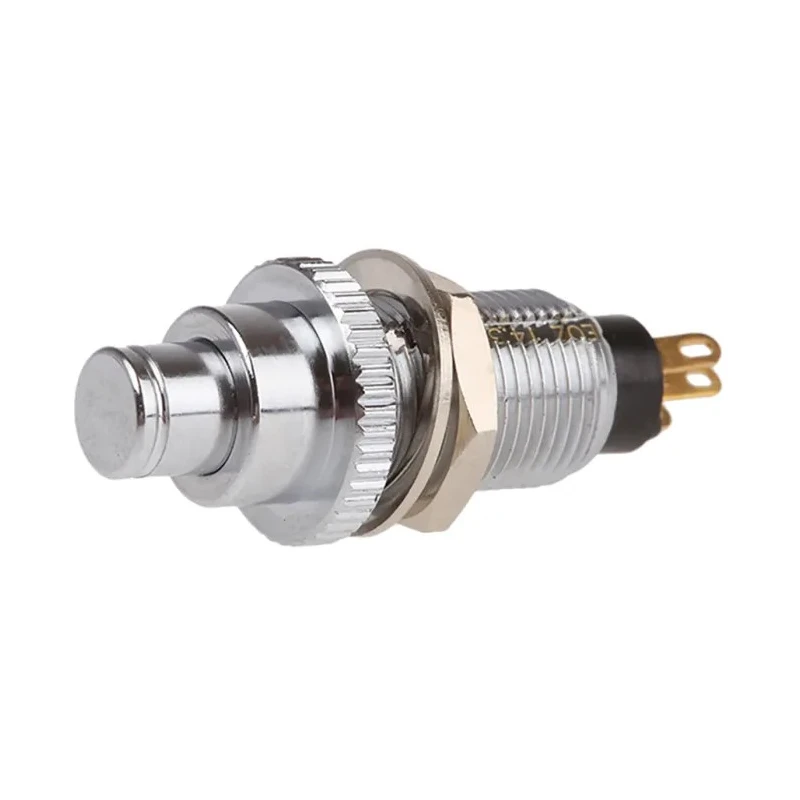

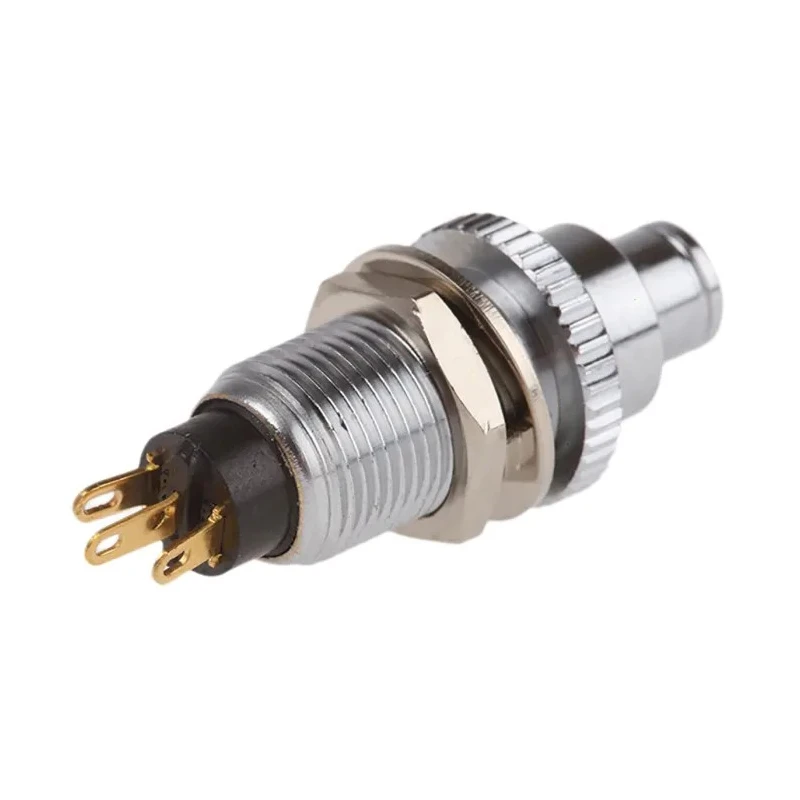

EOZ DJET Series Momentary Push Button Switch Panel Mount 10 mm Cutout SPST 110 V AC 17.17552.21

EOZ 17.17552.21 Momentary Push Button Switch is engineered for panel mount applications requiring reliable momentary electrical contact. This switch features a 10 mm panel cutout size and a chrome finish, enhanced by gold contact material to provide excellent corrosion resistance and long service life.

The switch operates in a momentary fashion - electrical contact is made only while the button is held down, and it returns to its original off position upon release. Designed with a single pole single throw (SPST) configuration, it controls a single circuit efficiently.

Mounting is straightforward by inserting the switch into the panel hole and securing it with a fixing nut. The solder-type terminal connections ensure reliable wiring attachment.

Operating reliably across a wide temperature range from -40°C to 85°C, this switch is suitable for demanding environments including telecommunications, military, aviation, medical equipment, and power supplies. It has a contact current rating of 2.5 A AC at 110 V AC, making it compatible with various industrial and commercial electrical controls.

Momentary operation ideal for temporary contact needs. Durable chrome and gold contact materials enhance longevity. Panel mount with 10 mm cutout for flexible installation. Single pole single throw configuration for single circuit control.

Wide operating temperature range for diverse applications. Solder terminal type ensures secure electrical connections. Rated for 2.5 A AC contact current at 110 V AC voltage. RoHS compliant indicating environmentally safe manufacturing.

This EOZ Push Button Switch is widely used in industrial automation, control panels, electrical systems, and instrumentation where momentary contact switching is required. Explore the range of EOZ switches and panels available on EnvMart for your automation and electrical needs.
