C & K PCB Slide Switch DPDT 6A Nylon S202031MS02Q

Free Delivery in India | Lowest Global Shipping Charges

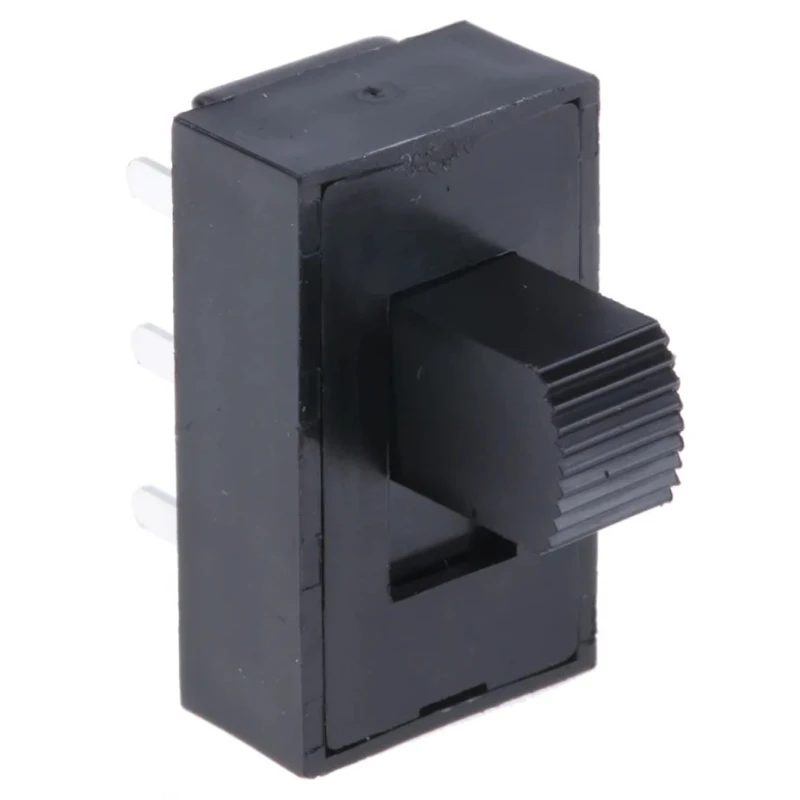

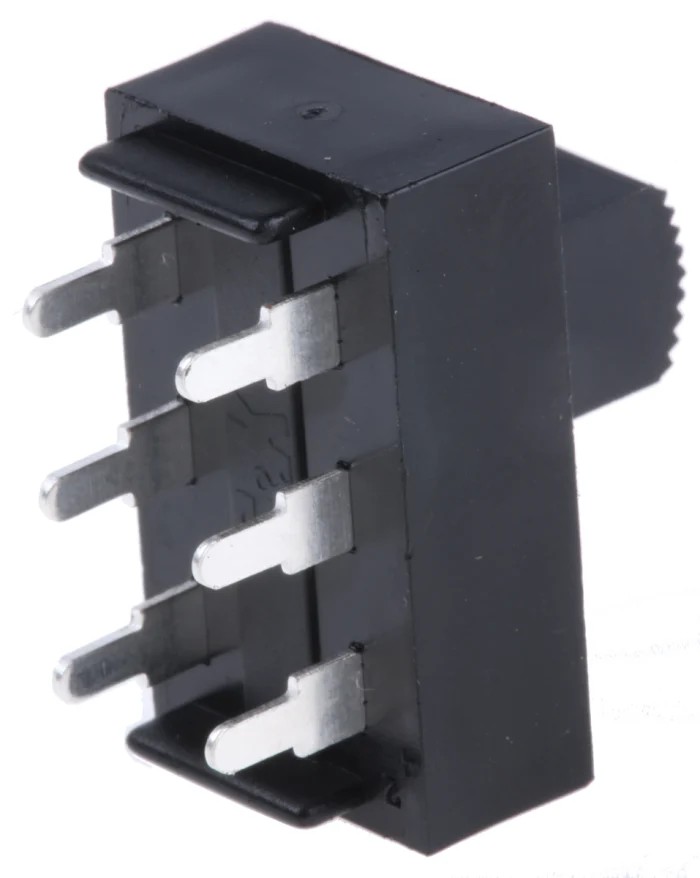

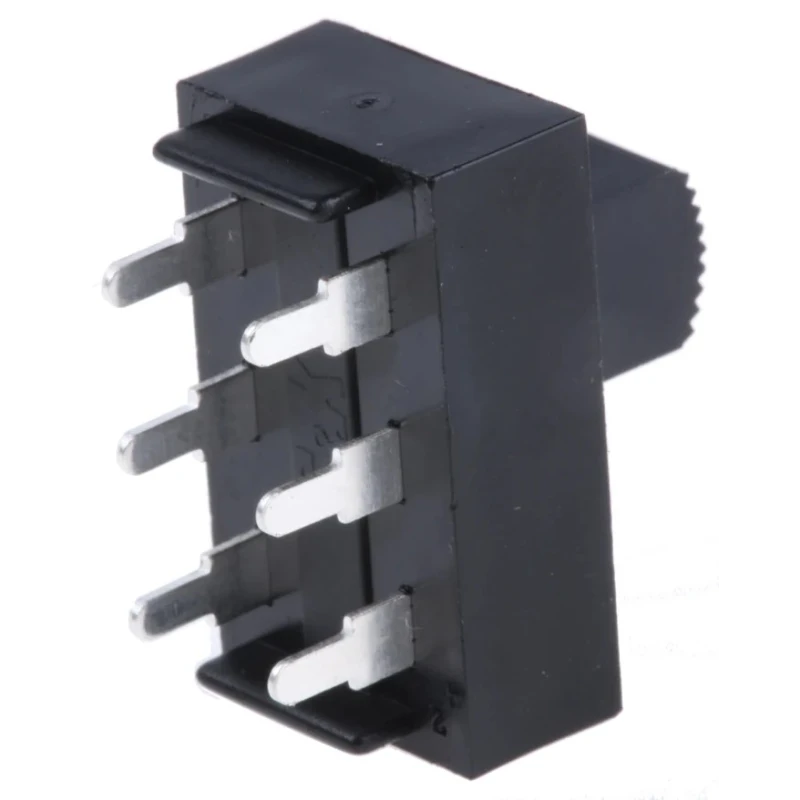

C & K PCB Slide Switch DPDT 6A Nylon S202031MS02Q

Name: C & K PCB Slide Switch DPDT 6A Nylon S202031MS02Q
Brand: C & K
SKU: 97157
Price: 6.5 USD
Availability: InStock



Category PCB Slide Switch Brand C & K Condition New

Specifications

Country of Origin	a compact housing.
Brand	C & K
Length	22.99mm
Model	S202031MS02Q
Depth	15.62mm
Width	13.46mm
Mount Type	PCB
Series	S
Maximum Operating Temperature	65°C
Contact Configuration	DPDT
Switch Configuration	On-On
Minimum Operating Temperature	-30°C
Terminal type	Through Hole
Standards/Approvals	CSA, UL
Contact DC Voltage	125V dc
Switch Contact Current	6A
Mechanical Life	10000Operations
Contact AC Voltage	250V ac
Actuator Material	Nylon
C & K Panel Mount Slide Switch DPDT 11 A @ 250 V ac SlideBrand	C & K

Key Features

Double Pole Double Throw (DPDT) contact configuration provides versatile circuit control.
Rated for 6A continuous current, suitable for PCB mounting.
Durable nylon actuator and case material ensures mechanical strength and insulation.
Switch configuration is On-On type with silver contacts for excellent conductivity.
Mechanical life of 10,000 operations under full load ensures long-term reliability.
Approved to CSA and UL standards for safety and compliance.
Operating temperature range from -30°C to +65°C accommodates various environments.
Through-hole terminal mounting facilitates secure PCB installation.

Product Description

C & K S202031MS02Q PCB Slide Switch DPDT 6A Nylon is engineered for high reliability in electrical and automation applications requiring robust switching performance. This slide switch features a double pole double throw (DPDT) contact configuration, capable of handling currents up to 6 amperes at 250 volts AC, making it ideal for PCB mounting in portable tools, small appliances, and floor care products.

The switch is constructed with a durable nylon 6.6 actuator and case, rated UL 94-V2 for flame retardancy, ensuring electrical insulation and mechanical strength under various usage conditions. Its silver contacts provide excellent conductivity and corrosion resistance, enhancing electrical performance.

The device supports an On-On switching configuration with a minimum mechanical life of 10,000 operations under full load, guaranteeing dependable long-term operation. Designed with a compact form factor - measuring 22.99 mm in length, 13.46 mm in width, and 15.62 mm in depth - it suits compact PCB layouts while maintaining durability.

Operating temperature ranges from -30°C to +65°C accommodate diverse environmental conditions. The switch terminals are through-hole mounted for reliable PCB attachment. Safety certifications include CSA and UL approvals, attesting to robust quality and compliance standards.

Double Pole Double Throw (DPDT) switch configuration suitable for multiple circuit control scenarios. High current rating of 6A at 250 VAC enables use in demanding electrical applications. Nylon 6.6 actuator and case offer strong mechanical and insulating properties.

Silver contacts ensure superior conductivity and resistance to wear. Minimum 10,000 mechanical operations guarantee durability. Compact dimensions facilitate use in space-constrained electronic devices. Through-hole terminal type for secure PCB mounting.

Wide operating temperature range for versatile deployment. Certified to CSA and UL safety standards. Non-illuminated switch design for straightforward application.

This product is suited for industrial, electronic manufacturing, automation systems, and laboratory equipment applications requiring precise and reliable switching on printed circuit boards. Browse more C & K switches and related components on EnvMart for your electrical needs.
