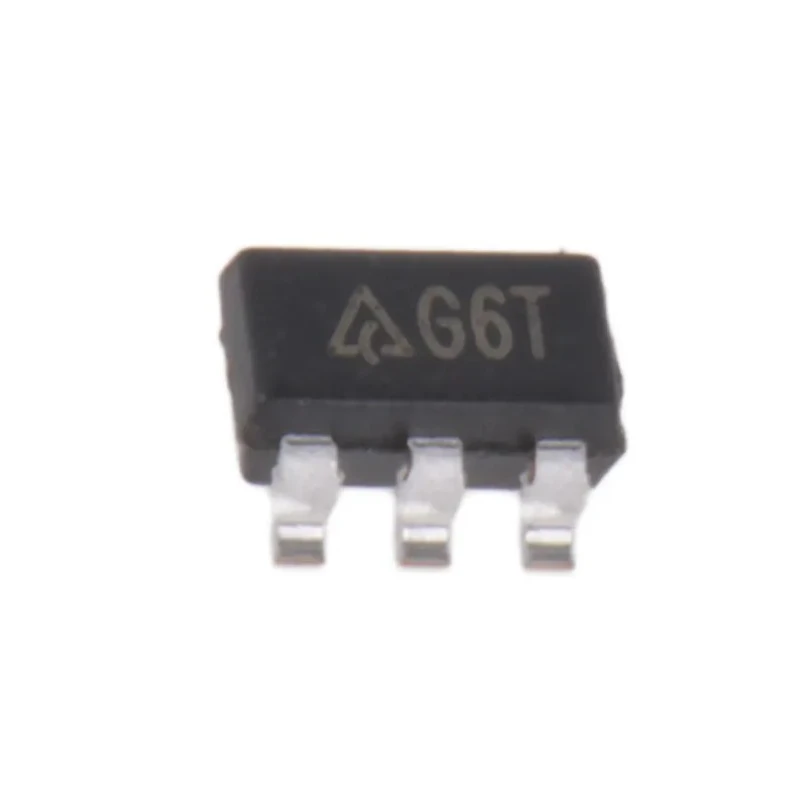

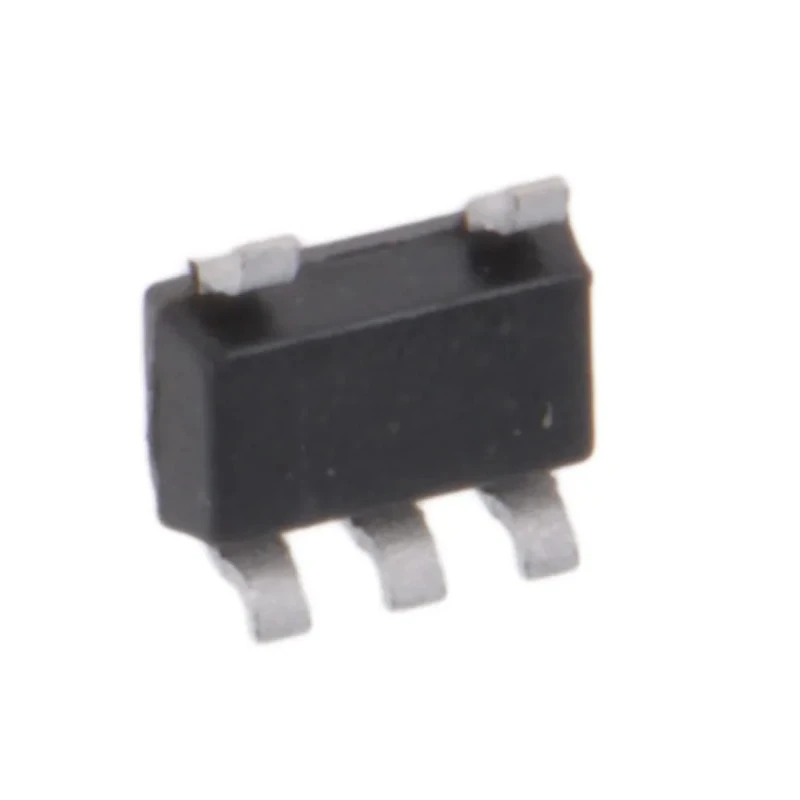

DiodesZetex Operational Amplifier 5-Pin SOT-23 3V-36V Supply Voltage AS321KTR-G1

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex Operational Amplifier 5-Pin SOT-23 3V-36V Supply Voltage AS321KTR-G1

Name: DiodesZetex Operational Amplifier 5-Pin SOT-23 3V-36V Supply Voltage AS321KTR-G1
Brand: DiodesZetex
SKU: 379416
Price: 0.16 USD
Availability: InStock



Category Operational Amplifier Brand DiodesZetex Condition New

Specifications

Country of Origin	India
Brand	DiodesZetex
Height	1.3mm
Length	3.1mm
Model	AS321KTR-G1
Width	1.7mm
Mount Type	Surface
Series	AS321
Output Current	40mA
Maximum Operating Temperature	85°C
Package Type	SOT-23
Minimum Operating Temperature	-40°C
Number Of Channels	1
Pin Count	5
Maximum Supply Voltage	36V
Minimum Supply Voltage	3V
Input Bias Current	200 nA
Vos - Input Offset Voltage	2 mV
Input Offset Current	100 nA

Key Features

Single channel operational amplifier designed for surface mount applications.
Compact SOT-23 package with dimensions 3.1 mm length, 1.7 mm width, and 1.3 mm height.
Low input bias current of 200 nA and input offset current of 100 nA for precise amplification.
Wide operating temperature range from -40°C to 85°C suitable for industrial environments.
Maximum output current of 40 mA to drive varied loads effectively.
Input offset voltage of 2 mV ensures accurate signal processing.
Meets industry standards with no automotive certification, suitable for general semiconductor amplifier applications.
Ideal for electronic components, power and connectors used in amplifiers and comparators.

Product Description

DiodesZetex AS321KTR-G1 is a single channel operational amplifier packaged in a 5-pin SOT-23 surface mount device suitable for modern electronics assembly. It supports a broad supply voltage range from 3 V up to 36 V, enabling flexible deployment in various industrial, laboratory, and commercial semiconductor circuits.

The compact form factor measures 3.1 mm in length, 1.7 mm in width, and 1.3 mm in height, facilitating PCB space optimization. Its low input bias current of 200 nA and input offset current of 100 nA deliver high precision in signal amplification, essential for sensitive analog circuits. The device operates reliably in harsh temperature conditions from -40°C to 85°C, making it suitable for demanding environments.

With a maximum output current of 40 mA, the amplifier can effectively drive varied loads, while the low input offset voltage of 2 mV ensures minimal distortion in signal processing. This model is not automotive certified but meets general semiconductor quality standards.

Single channel operational amplifier in surface mount SOT-23 package. Wide supply voltage range of 3 V to 36 V for versatile applications. Low input bias current of 200 nA and input offset current of 100 nA. Compact package size: 3.1 mm x 1.7 mm x 1.3 mm.

Operating temperature from -40°C to 85°C suited for industrial use. Maximum output current of 40 mA for varied load driving. Low input offset voltage of 2 mV for accurate signal amplification. Compliant with standard semiconductor specifications, no automotive rating.

This operational amplifier is ideal for applications in electronics manufacturing, PCB design, power and connector systems, laboratory instrumentation, and general industrial electronics. Its compact size and electrical performance enable its use in consumer electronics, instrumentation, and general analog circuits.

For additional design resources, PCB footprints, and technical documentation, designers can download compatible design software packages and access 3D models to streamline integration into existing manufacturing workflows.
