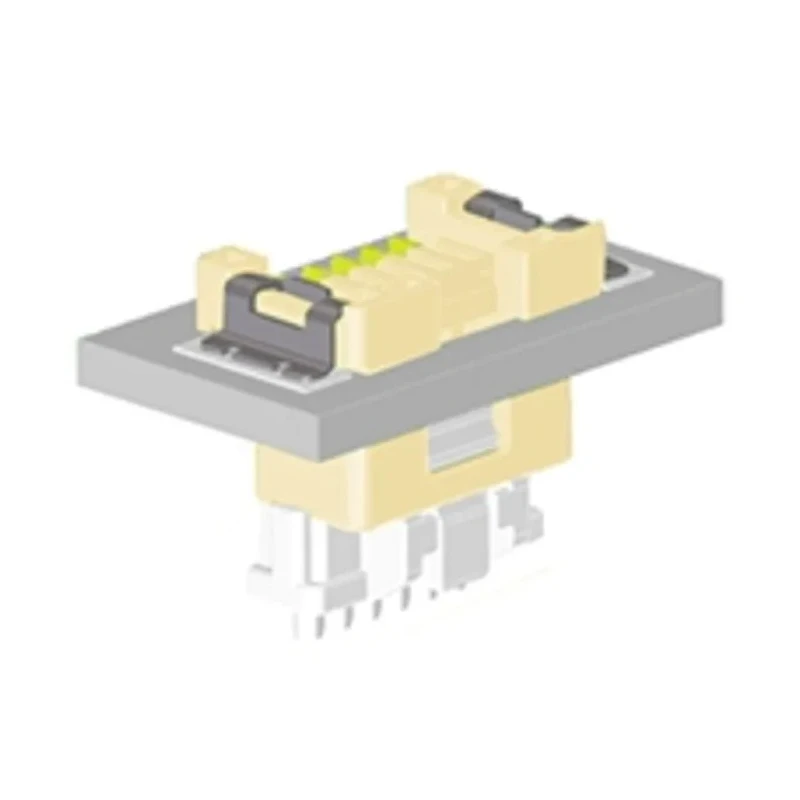

Molex CLIK-Mate Series Straight Surface PCB Socket 6-Contact 1 Row 1.5 mm Pitch Solder 503395-0610
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 100V |
| Brand | Molex |
| Orientation | Straight |
| Current | 12A |
| Mount Type | Surface |
| Contact Material | Copper |
| Series | CLIK-Mate |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Wire-to-Board |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1.5mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Female |
| Connector System | Wire-to-Board, Signal |
Key Features
- Features a straight surface mount design for space-efficient PCB assembly.
- Rated for 12A current and 100V voltage applications.
- Constructed with copper contacts plated with tin for reliable electrical connection.
- Operates safely within a temperature range of -40°C to 105°C.
- Complies with RoHS standards ensuring environmentally friendly manufacturing.
- Ideal for LED lighting and other compact electronic applications requiring simplified assembly.
- Designed as a bottom entry wire-to-board PCB receptacle in the CLIK-Mate series.
Product Description
Molex 503395-0610 CLIK-Mate Series Straight Surface PCB Socket is a precision-engineered PCB socket featuring 6 contacts in a single row with a 1.5 mm pitch, designed for surface mounting and solder termination. This wire-to-board connector system is part of the CLIK-Mate series, known for simplified assembly and space-saving capabilities, making it ideal for compact electronic applications including LED lighting.
Constructed with high-quality copper contacts plated in tin, this socket ensures excellent conductivity and durable mechanical performance. It is rated for an electrical current of 12A and supports operating voltages up to 100V. The device operates reliably across a wide temperature range from -40°C minimum to 105°C maximum, suitable for harsh industrial environments.
The socket's straight orientation and surface mount design facilitate easy integration on printed circuit boards, improving assembly efficiency. Compliance with RoHS standards confirms its environmentally friendly materials and process compliance. The product is manufactured in Japan and is suitable for industrial electronics, power connectors, and signal wire applications requiring compact and robust PCB Sockets.
Features a straight surface mount design for space-efficient PCB assembly. Rated for 12A current and 100V voltage applications. Constructed with copper contacts plated with tin for reliable electrical connection. Operates safely within a temperature range of -40°C to 105°C.
Complies with RoHS standards ensuring environmentally friendly manufacturing. Ideal for LED lighting and other compact electronic applications requiring simplified assembly. Designed as a bottom entry wire-to-board PCB receptacle in the CLIK-Mate series.
This socket is an excellent choice for electronic manufacturing, offering reliable connectivity in demanding industrial and commercial applications. Explore the Electronics Components category for compatible products and related solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket is rated for a current of 12A and can operate at voltages up to 100V.
It features a 1.5 mm pitch and has 6 contacts arranged in a single row.
This model uses solder termination for secure connections.
The contacts are constructed from copper and are plated with tin to ensure reliable electrical connection.
It operates safely within a temperature range of -40°C to 105°C.
Yes, it complies with RoHS standards, ensuring environmentally friendly manufacturing.
This model has a straight orientation, designed for surface mounting on PCBs.
The PCB socket is manufactured in Japan.
It is ideal for compact electronic applications, including LED lighting and other wire-to-board connections.
The straight surface mount design allows for space-efficient PCB assembly, improving integration and assembly efficiency.
This socket is part of a wire-to-board connector system, suitable for signal applications.
The contact gender of this model is female, designed for receiving connections.
