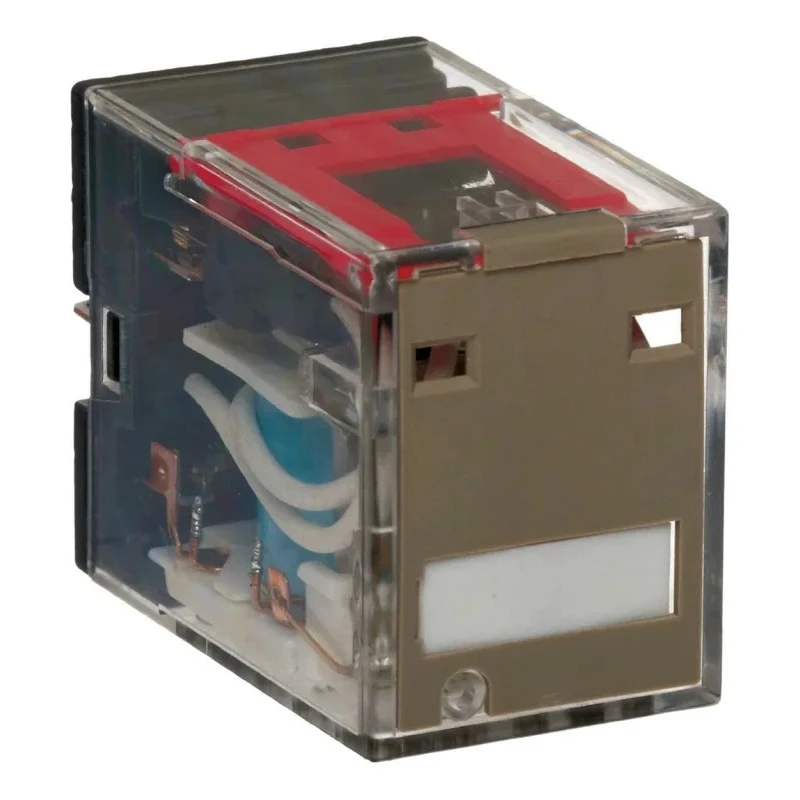

Omron Power Relay 24V DC Coil 5A Switching Current 4PDT Contact Configuration MY4ZN-D2 24VDC (S)
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 28mm |
| Length | 21.5mm |
| Model | MY4ZN-D2 24VDC (S) |
| Width | 21.5mm |
| Contact Material | Gold Plated |
| Series | MY4 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -55°C |
| Switching Current | 5A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ |
| Standards/Approvals | CSA, UL |
| Coil Resistance | 636Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 900mW |
| Switching Power | 0.9W |
Key Features
- Suitable for automation and electronic control systems requiring precise relay operation.
- Compact PCB pin terminal design enables easy circuit board integration.
- Gold-plated contacts provide strong conductivity and durability.
- Supports switching of up to 250V AC and 125V DC voltages.
- Operating temperature range from -55°C to 70°C ensures dependable function in various environments.
- Coil resistance of 636Ω and power consumption of 900mW for efficient operation.
- Offers approximately 100,000 electrical operations and up to 20 million mechanical operations lifespan.
- Provides 2kV AC isolation between coil and contacts for safety and noise reduction.
Product Description
Omron MY4ZN-D2 24VDC (S) Power Relay features a 24V DC coil and 4PDT contact configuration, designed for robust switching in industrial and electronic automation applications. It supports a 5A switching current and switching power up to 0.9W, capable of handling maximum switching voltages of 250V AC and 125V DC.
The relay's compact design with PCB pin terminals ensures straightforward installation on circuit boards and efficient integration in control panels. Gold-plated contact material enhances electrical conductivity and contact reliability, reducing resistance to 50mΩ for stable signal transmission.
Engineered to operate reliably within -55°C to 70°C, this relay includes coil resistance of 636Ω and a coil power of 900mW, balancing power efficiency with performance. The isolation between coil and contacts is rated at 2kV AC, providing safety and minimizing interference in sensitive electronics.
With approximately 100,000 electrical cycles and up to 20 million mechanical operations, the relay ensures long service life in demanding industrial, laboratory, HVAC, manufacturing, and automation control scenarios. Suitable for low voltage switching and precise relay action in various electronic and mechanical systems, it stands as a dependable component for control and signal conditioning.
Suitable for automation systems requiring reliable switching. Compact plug-in PCB design for easy installation. Gold-plated contacts for improved durability and conductivity. High isolation rating enhances safety and reduces electrical noise.
Wide operating temperature range supports diverse environments. Long mechanical and electrical lifespan for cost-effective usage. Efficient coil power and resistance for stable operation. Capable of switching AC and DC voltages up to specified limits.
Originating from Japan, this product complements industrial electrical setups and control architectures. Browse further in the Power Relay category at EnvMart for compatible components and advanced relay solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switching current of this relay is 5A.
It can handle maximum switching voltages of 250V AC and 125V DC.
The coil voltage for this model is 24V DC.
The contact configuration is 4PDT (Four Pole Double Throw).
The operating temperature range is from -55°C to 70°C.
It features PCB pin terminals for easy installation on circuit boards.
The contact resistance is 50mΩ, enhancing stable signal transmission.
The coil resistance is 636Ω and the power consumption is 900mW.
It is rated for approximately 100,000 electrical operations.
This relay is certified by CSA and UL.
The dimensions are 28mm in height, and 21.5mm in both length and width.
It has a lifespan of up to 20 million mechanical operations.
