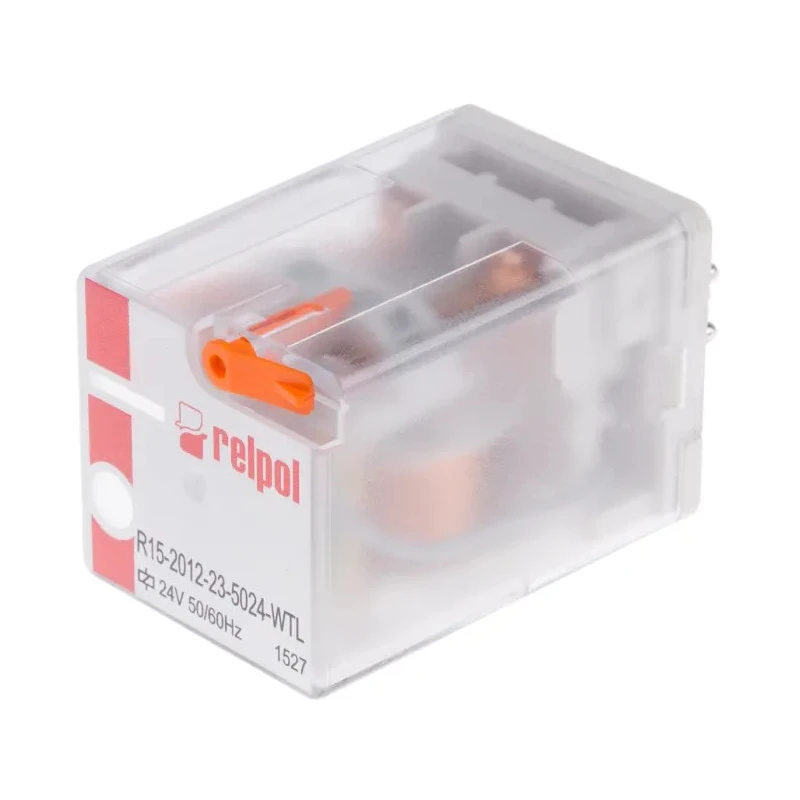

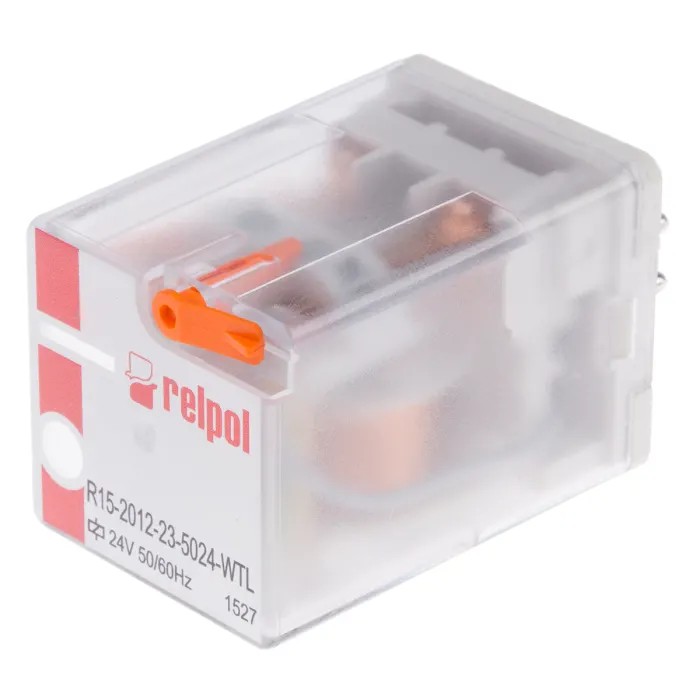

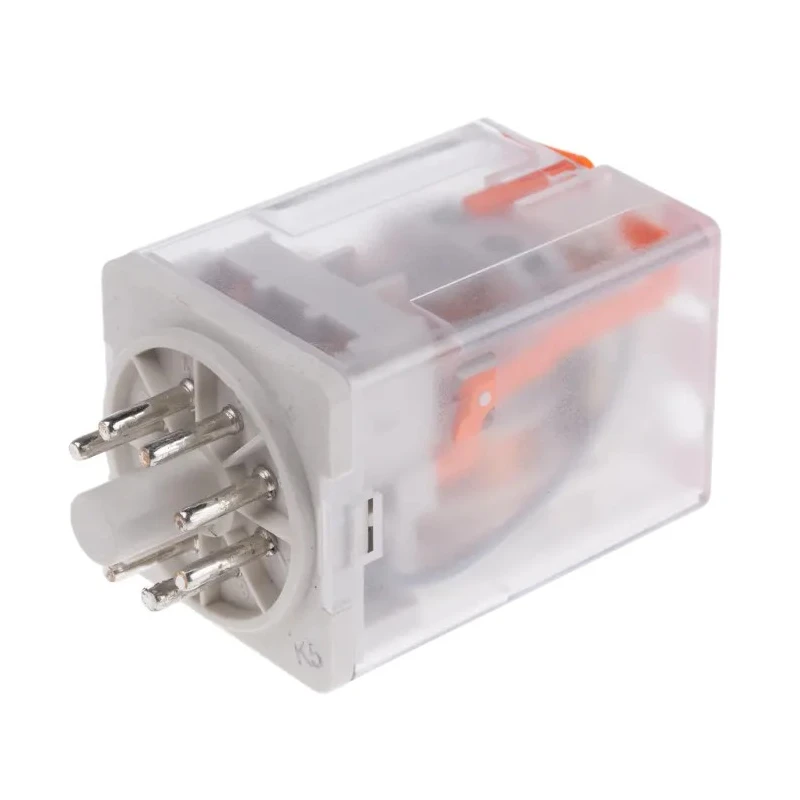

Relpol Power Relay 24V AC Coil 10A Switching Current DPDT R15-2012-23-5024-WTL
Specifications
| Country of Origin | Poland |
|---|---|
| Brand | Relpol |
| Height | 35mm |
| Length | 35mm |
| Model | R15-2012-23-5024-WTL |
| Width | 54.4mm |
| Contact Material | Silver Alloy |
| Series | R15 |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Plug-In |
| Standards/Approvals | UR, UL, CSA |
| Coil Resistance | 75Ω |
| Coil Voltage | 24V ac |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 440V |
| Coil Power | 2.8W |
| Switching Power | 1.5W |
Key Features
- Operates at coil voltage of 24 volts AC with coil power of 2.8 watts.
- Double pole double throw (DPDT) contact arrangement ensures flexible switching.
- Rated switching current capacity of 10 amperes suitable for medium power circuits.
- Compact dimensions with length and height of 35mm, width of 54.4mm for easy socket mounting.
- Contact material made of silver alloy for reliable conductivity and durability.
- Wide operating temperature range from -40°C to 55°C for harsh environments.
- Coil resistance of 75 ohms ensures predictable coil performance.
- Designed for plug-in terminal use with lockable front test button feature.
Product Description
Relpol's R15-2012-23-5024-WTL power relay is a robust industrial-grade electrical component designed for efficient switching applications. It features a 24V AC coil and a 10A switching current capacity with a double pole double throw (DPDT) contact configuration. This relay belongs to the R15 series, known for miniature industrial relay construction suitable for general and commercial uses requiring reliable contact control.
The relay's contacts utilize silver alloy material, ensuring high conductivity and long operational life. It operates effectively in temperatures ranging from -40 degrees Celsius to 55 degrees Celsius, making it suitable for diverse industrial environments. Compact with dimensions of 35mm length, 54.4mm width, and 35mm height, it is designed for easy mounting in plug-in sockets equipped with mechanical indicators and lockable test buttons.
Its coil resistance is precisely 75 ohms, providing stable coil power consumption of 2.8 watts. The switching power rating is 1.5 watts, suitable for controlling various AC and DC voltages including up to 440V AC and 24V DC for switching operations. Certified under UR, UL, and CSA standards, this relay meets critical safety and performance benchmarks for industrial automation and electrical control systems.
Operates with a 24V AC coil voltage and 2.8W coil power. Double pole double throw (DPDT) contact configuration for versatile switching. Maximum switching current capacity of 10 amperes. Compact size facilitates efficient installation into plug-in sockets with lockable test button.
Silver alloy contact material ensures reliable electrical performance. Wide operational temperature range from -40°C to +55°C for industrial conditions. Meets UR, UL, and CSA standards for industrial safety compliance.
This power relay is ideal for use in industrial automation, electrical control panels, HVAC systems, manufacturing machinery controls, and other commercial electrical applications requiring reliable switching with precise voltage and current ratings. Its compact size and plug-in terminal design simplify maintenance and replacement tasks.
Relpol's commitment to quality and compliance makes the R15-2012-23-5024-WTL an excellent choice for engineers and procurement professionals seeking dependable relay components for long-term industrial use.
Explore EnvMart's comprehensive selection of Power Relays and related electrical components from top manufacturers to support your system requirements with assured quality and technical performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 24V AC.
This model has a maximum switching current capacity of 10 amperes.
The relay features a double pole double throw (DPDT) contact configuration.
The relay has dimensions of 35mm in height, 35mm in length, and 54.4mm in width.
The coil power consumption is 2.8 watts.
It operates effectively in a temperature range from -40°C to 55°C.
This model is designed for plug-in terminal use.
The contacts are made of silver alloy, which ensures reliable conductivity.
It meets UR, UL, and CSA standards for safety and performance.
The coil resistance is 75 ohms.
The maximum AC voltage for switching is 440V.
It is suitable for industrial automation, electrical control panels, and HVAC systems, among other applications.
