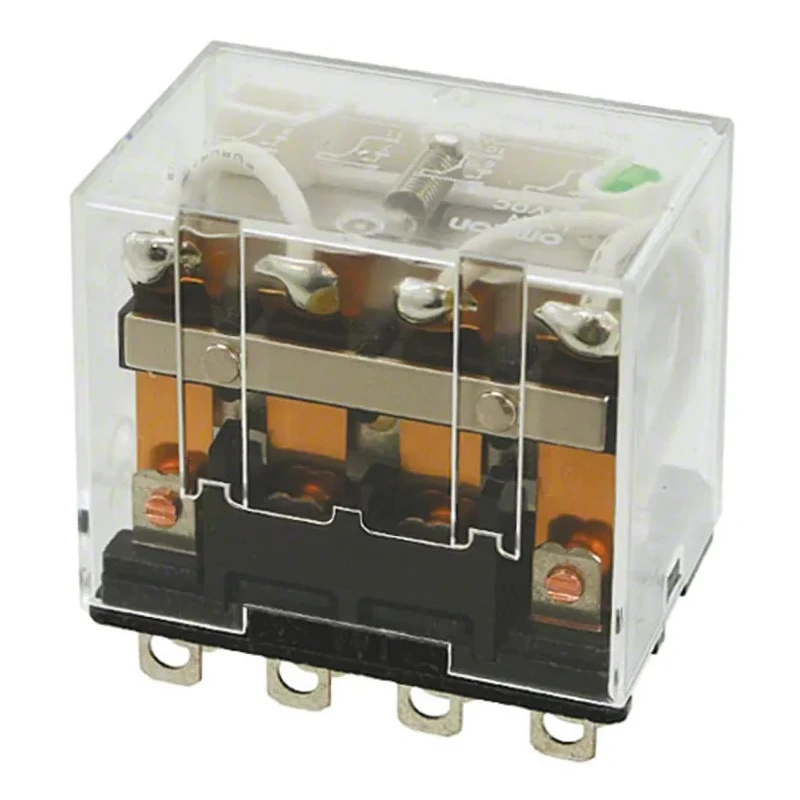

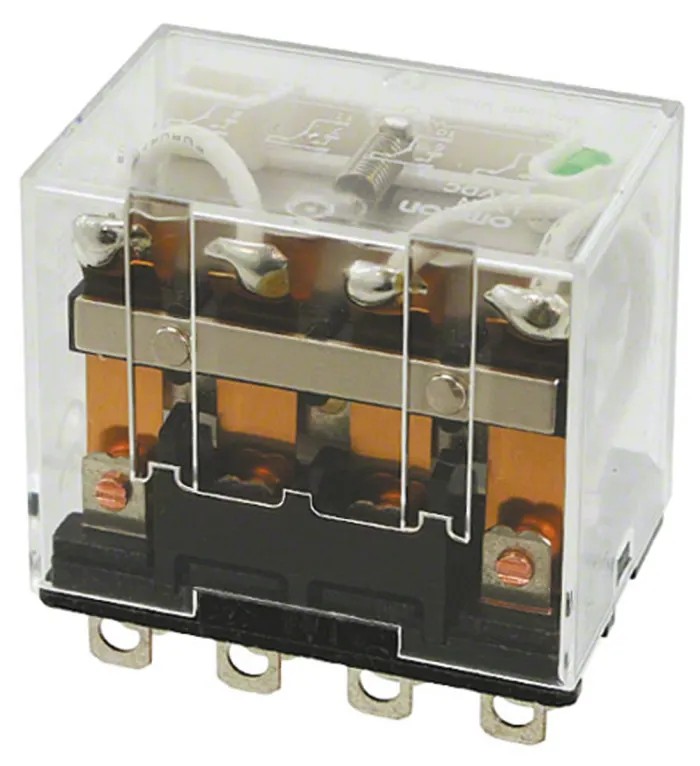

Omron Power Relay 120V AC Coil, 10A Switching Current, 4PDT Contact Configuration LY4F AC120
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 44mm |
| Length | 41.5mm |
| Model | LY4F AC120 |
| Width | 35.5mm |
| Contact Material | Silver Alloy |
| Series | LY4F |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -25°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ |
| Standards/Approvals | CSA, UL |
| Coil Resistance | 4430Ω |
| Coil Voltage | 120V ac |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 2.5W |
| Switching Power | 1.5W |
Key Features
- This power relay features a 4-pole double-throw contact configuration for complex switching requirements.
- The coil voltage is rated at 120V AC with a power consumption of 2.5W and coil resistance of 4430Ω ensuring predictable coil current.
- Silver alloy contacts minimize contact resistance to 50mΩ, enhancing conductivity and longevity.
- Suitable for switching moderate AC and DC loads up to 125V and 10A, with a switching power rating of 1.5W.
- Designed for PCB pin terminal mounting with dimensions 44mm height, 41.5mm length, and 35.5mm width.
- Operates reliably within a temperature range from -25°C to 55°C, suitable for typical industrial environments.
- Certified with CSA and UL approvals, ensuring compliance with recognized safety standards.
Product Description
Omron LY4F AC120 power relay with 120V AC coil voltage and 10A switching current is a compact electromechanical device designed for reliable control and signal tasks in industrial control panels and electronic assemblies. Featuring a 4-pole double-throw (4PDT) contact configuration, it can handle multiple circuit switching in automation and machinery control applications.
The coil consumes 2.5W power with a resistance of 4430Ω, providing predictable coil current draw. Silver alloy contacts ensure low contact resistance of 50mΩ for efficient switching and durability. The relay supports switching of AC and DC voltages up to 125V with a rated current of 10A and switching power of 1.5W, ideal for moderate power electrical loads.
It is mounted via PCB pin terminals, measuring 44mm in height, 41.5mm in length, and 35.5mm in width, facilitating easy board-level installation. The operating temperature range extends from -25°C to 55°C, making it suitable for indoor industrial environments.
The LY4F AC120 relay is UL and CSA approved, confirming its conformity with internationally recognized safety standards for use in electrical distribution and automation systems. This relay uses silver alloy contacts for enhanced conductivity and reduced resistance.
The coil voltage is rated at 120V AC, consuming 2.5W for efficient standard mains-driven operation. The contact configuration is 4PDT, enabling multiple circuit controls. Rated switching current is 10A for handling moderate electrical loads.
Temperature operation range of -25°C to 55°C suits typical industrial applications. PCB pin terminals provide secure mounting on printed circuit boards. Dimensional specifications are 44mm height, 41.5mm length, and 35.5mm width.
Compliant with CSA and UL safety standards.
This Omron power relay is widely suited for automation control panels, industrial machinery control relays, electrical distribution modules, and signal routing in complex electronic systems. Its reliable switching performance and regulatory approvals ensure dependable use in industrial, manufacturing, and commercial environments.
Explore a wide range of Power Relays and industrial components within EnvMart's Electronics & Electricals category to meet varied automation and control system requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is rated at 120V AC.
This relay can handle a maximum switching current of 10A.
It features a 4-pole double-throw (4PDT) contact configuration.
The relay measures 44mm in height, 41.5mm in length, and 35.5mm in width.
The coil consumes 2.5W of power.
The contact resistance is minimized to 50mΩ, enhancing conductivity.
It operates reliably within a temperature range of -25°C to 55°C.
This model is designed for PCB pin terminal mounting.
It is certified with CSA and UL approvals, ensuring compliance with recognized safety standards.
It supports switching of AC and DC voltages up to 125V.
The coil resistance is rated at 4430Ω.
This relay is suitable for automation control panels, industrial machinery control, and signal routing in electronic systems.
