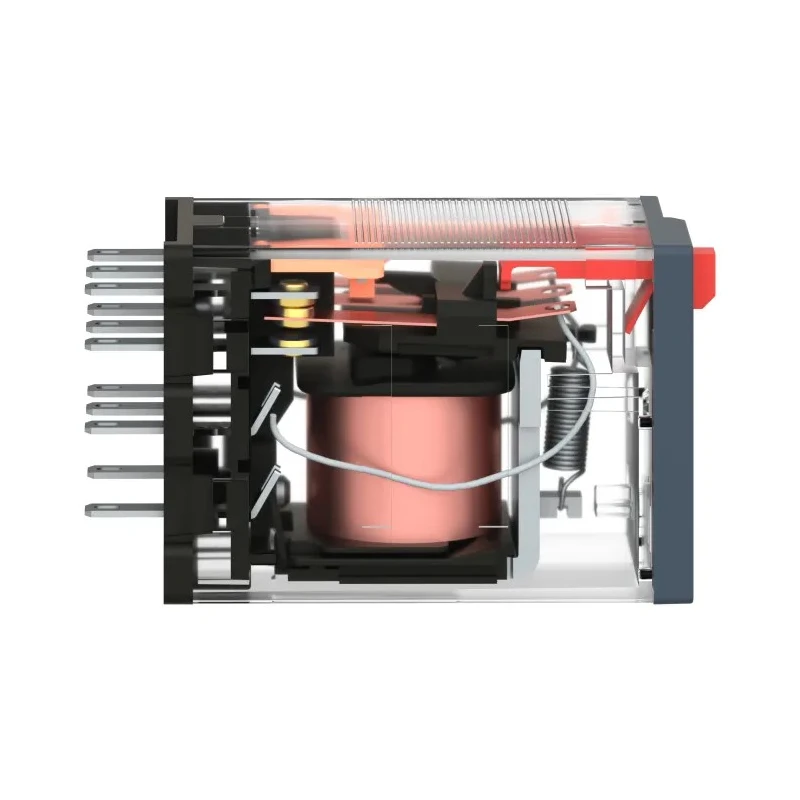

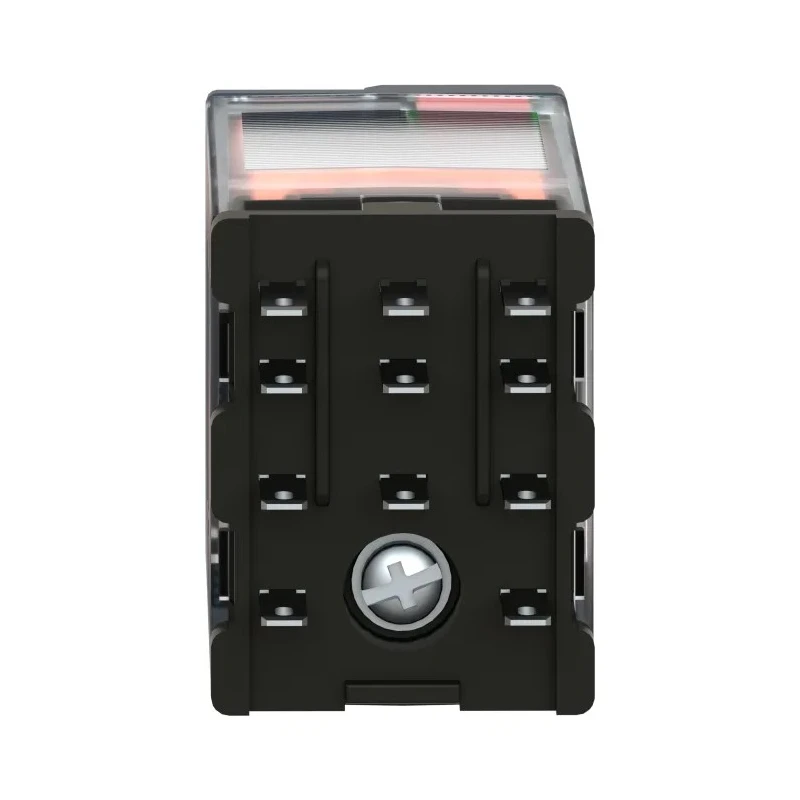

Schneider Electric Power Relay 230V AC Coil 10A Switching Current 3PDT RXM3AB1P7

Schneider Electric RXM3AB1P7 Power Relay features a 230V AC coil and supports a switching current of 10A with a 3PDT contact configuration. It belongs to the Harmony Relay RXM series of electromechanical plug-in relays designed to enhance electrical enclosure functions for industrial automation systems. This miniature relay is suitable for applications in industrial machines, packaging systems, textile manufacturing, HVAC units, automation control panels, low-medium voltage switchgear, motor control, PLC interfaces, power supplies, building, medical equipment, and lighting controls.

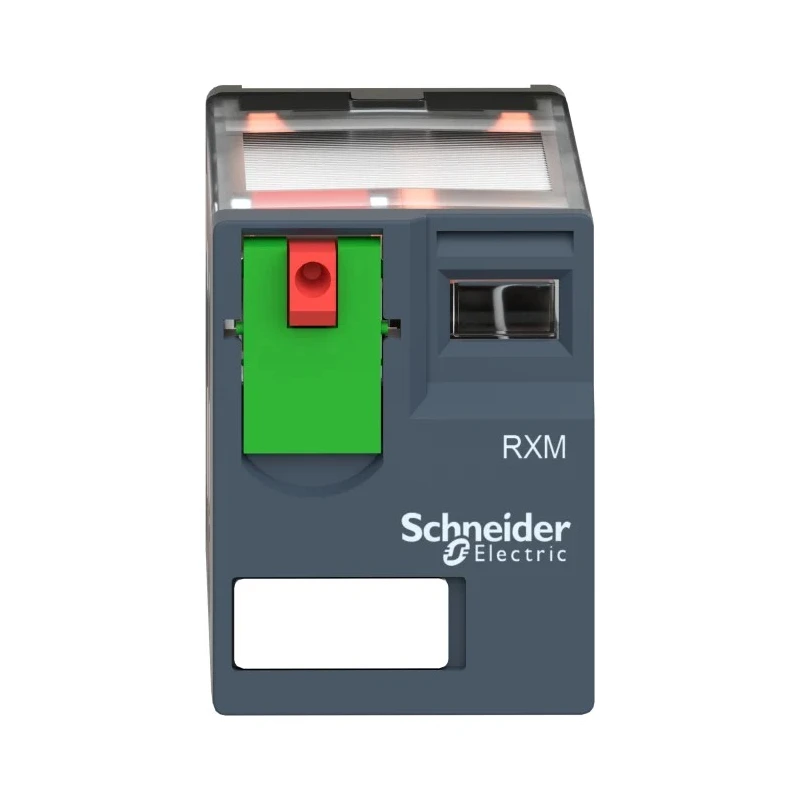

The relay includes a one-step lockable test button and a mechanical indicator that clearly displays the contact status via an orange flag. It is designed to be mounted on RXZE sockets (available with screw clamp, screw connector, or push-in terminals) and allows for additional vibration protection through plastic or metal clamps. Protection modules and marking legends can also be added for enhanced functionality.

The device operates reliably within a temperature range from -40°C to 55°C, with robust silver alloy contacts and a coil resistance of 15kΩ consuming 1.2W coil power. The compact dimensions (Length: 21mm, Width: 47.7mm, Height: 27mm) facilitate integration into tight spaces typical in industrial control setups.

This relay adheres to stringent international standards including CSA and CE certifications, ensuring dependable performance and compliance with environmental directives like RoHS and REACH. It is a green premium product manufactured in China, emphasizing sustainability alongside industrial utility.

This power relay operates with a coil voltage of 230V AC, suitable for industrial control circuits. It features a 3PDT (3-pole double throw) contact configuration with a switching current rating of 10 amperes. The relay offers a compact design with plug-in terminal type and is part of the Harmony Relay RXM series.

Equipped with a one-step lockable test button and mechanical status indicator for easy operation verification. Rated for operation in temperatures from -40°C to 55°C for reliable industrial performance. Silver alloy contact material ensures durability and high conductivity.

Designed for use with RXZE sockets and compatible with industrial machines, packaging, textile, HVAC, and automation control panels. Conforms to international standards including CSA and CE for quality assurance. Manufactured in China, this relay is a green premium product compliant with RoHS and REACH directives.

Ideal for industrial, electrical, automation, and manufacturing environments, this relay is engineered to complement programmable logic controllers (PLCs) and a broad range of control and power supply systems. Explore more Schneider Electric products and Power Relays at EnvMart for efficient and reliable industrial automation components.
