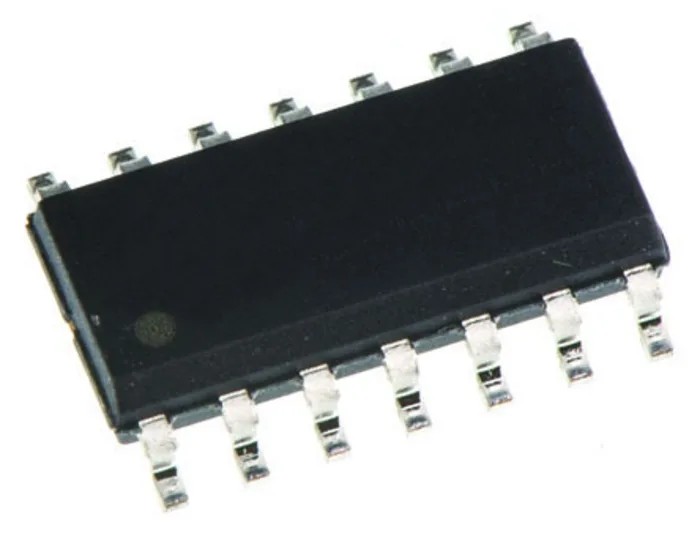

Texas Instruments Operational Amplifier, 4 Channel, 1.2 MHz Gain Bandwidth, 14-Pin SOIC, 2.7V to 18V, AEC-Q100 OPA4170AID
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.5mm |
| Length | 8.75mm |
| Model | OPA4170AID |
| Width | 4mm |
| Mount Type | Surface |
| Series | OPA4170 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 2.7V |
| GBP - Gain Bandwidth Product | 1.2MHz |
| Input Bias Current | ±3.5 nA |
| Vos - Input Offset Voltage | ±1.8 mV |
| Slew Rate | 0.4V/μs |
Key Features
- Operating voltage range from 2.7V to 18V supports diverse electronic applications.
- Input offset voltage is ±1.8 mV, enabling precision signal amplification.
- Input bias current and offset current both ±3.5 nA, suitable for low leakage circuit designs.
- Slew rate of 0.4 V/μs ensures reliable performance in moderate frequency applications.
- Operates in a wide temperature range from -40°C to 125°C, compliant with automotive AEC-Q100 standards.
- Compact dimensions with width 4 mm, length 8.75 mm, and height 1.5 mm for space-efficient PCB integration.
- Package type is SOIC (Small Outline Integrated Circuit) suitable for surface mount technology.
- Designed for general purpose usage in semiconductor amplification circuits and signal conditioning.
Product Description
Texas Instruments OPA4170AID is an operational amplifier designed to provide stable analog signal amplification in electronic circuits. This device incorporates four independent amplifiers in a single 14-pin SOIC package optimized for surface mount applications.
It operates over a wide supply voltage range from 2.7V to 18V, making it suitable for various power levels in industrial and automotive environments. Equipped with an input offset voltage of ±1.8 mV and low input bias and offset currents of ±3.5 nA, the amplifier supports precision amplification and low leakage, critical in sensitive measurement circuits.
The gain bandwidth product is rated at 1.2 MHz, coupled with a slew rate of 0.4 V/μs, allowing effective operation in audio processing, sensor interfaces, and control systems that demand moderate response times.
Engineered to meet AEC-Q100 automotive standards, this amplifier can withstand harsh operational conditions, with an operating temperature range from -40°C to 125°C. The compact SOIC package with dimensions 8.75 mm length, 4 mm width, and 1.5 mm height facilitates efficient PCB design in constrained spaces.
Four channel Operational Amplifier providing reliable multi-signal processing. Wide voltage supply range enabling diverse application compatibility. Low offset voltage and bias currents for accurate signal amplification.
Slew rate supporting effective transient response in dynamic signals. Automotive-grade temperature tolerance ready for demanding environments. Surface mount SOIC package for seamless integration in modern electronics.
This product is ideal for use in industrial electronics, automotive control systems, laboratory instrumentation, audio and signal processing, and other semiconductor amplification needs.
Explore more Texas Instruments electronic components and amplifiers at EnvMart for high-quality industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this model is rated at 1.2 MHz, allowing it to effectively operate in various applications requiring stable analog signal amplification.
The input offset voltage for the OPA4170AID is ±1.8 mV, which supports precision signal amplification in sensitive applications.
The maximum operating temperature for this model is 125°C, which is compliant with automotive AEC-Q100 standards.
This model has dimensions of 8.75 mm in length, 4 mm in width, and 1.5 mm in height, facilitating efficient PCB design.
This operational amplifier features four independent channels, allowing for reliable multi-signal processing in various applications.
The slew rate of the OPA4170AID is 0.4 V/μs, ensuring reliable performance in moderate frequency applications.
It comes in a 14-pin SOIC (Small Outline Integrated Circuit) package, which is suitable for surface mount technology.
The input bias current for the OPA4170AID is ±3.5 nA, making it suitable for low leakage circuit designs.
Yes, this model is compliant with AEC-Q100 automotive standards, ensuring it can withstand demanding operational conditions.
