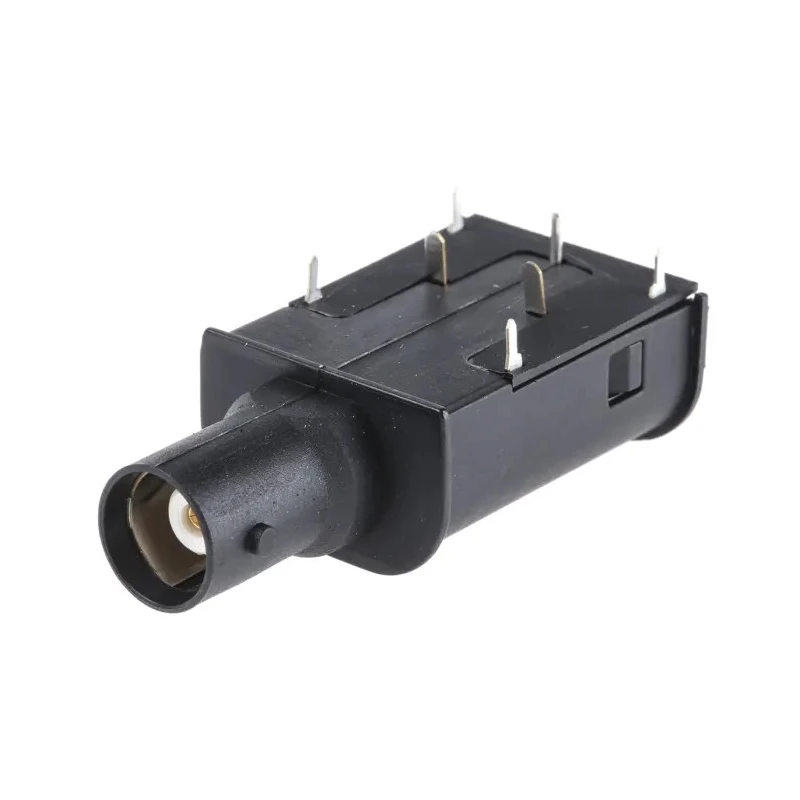

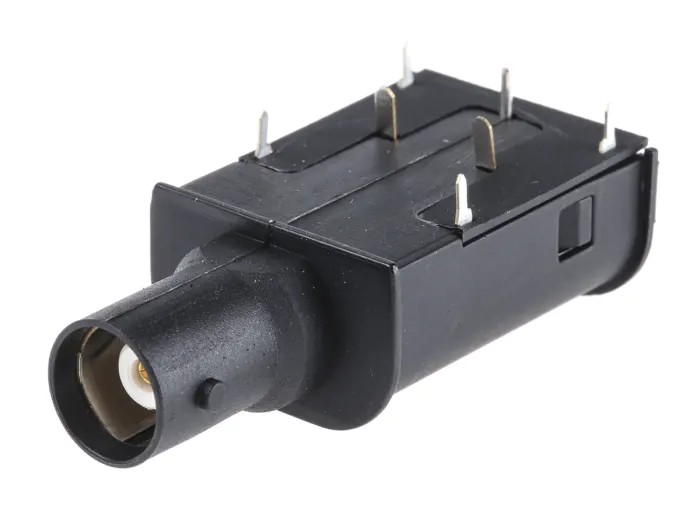

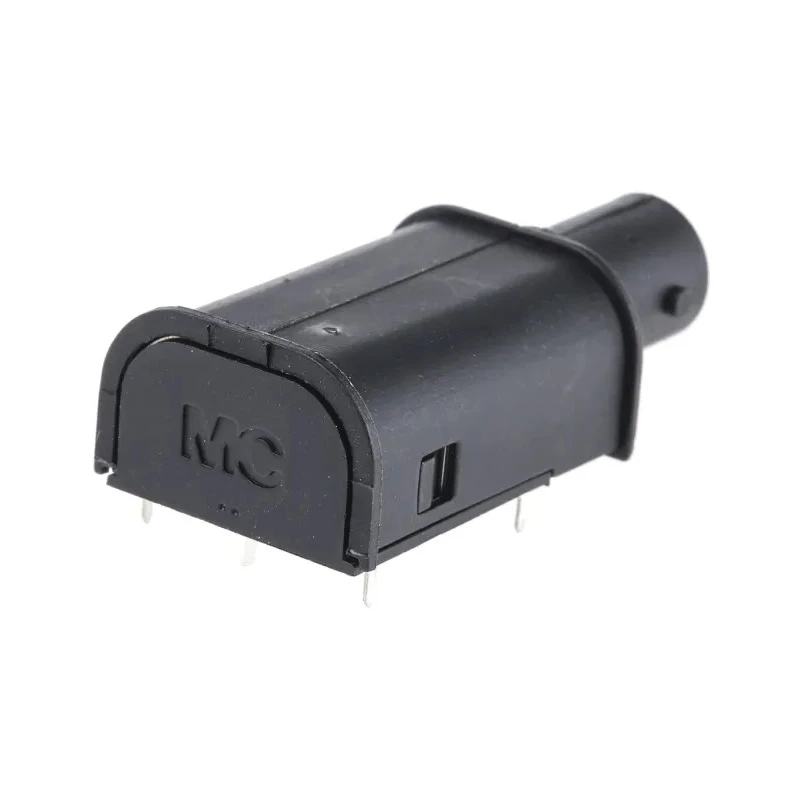

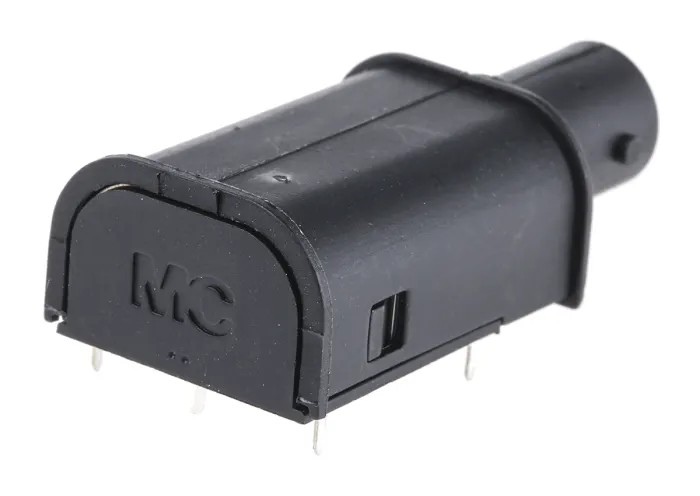

Staubli XBWB-P Series Coaxial Connector PCB Female BNC Right Angle Body Through Hole 67.9569-21

Staubli 67.9569-21 XBWB-P Series Coaxial Connector PCB Female BNC is a right angle body connector designed for printed circuit board mounting with through hole termination. Featuring brass contact material with gold plating, it provides excellent electrical performance for RF applications. The connector supports a standard size and is touch protected to IEC/EN 61010-1 standards, rated at 1000V CAT III and 600V CAT IV for safe operation in demanding environments.

This connector is designed to minimize mechanical stress on the PCB due to its right angle construction and flat surface design. It is compatible with conventional BNC connectors while maintaining the touch protection feature unless unplugged. Applications include industrial testing, laboratory instruments, electronic devices, and other equipment requiring reliable RF connection with safety compliance.

Manufactured in Germany, the connector meets high quality standards and offers durability in rigorous environments. The product is ideal for use in electronics manufacturing, testing setups, telecommunications, and professional audio/video systems that require PCB mounted coaxial connectors.

The BNC interface ensures standardized RF connectivity with excellent signal integrity. Right angle orientation reduces PCB space usage and mechanical strain. Through hole mounting provides secure and stable PCB integration.

Brass contact with gold plating enhances conductivity and corrosion resistance. Safety features support usage in environments with high voltage ratings. Touch protection reduces risk of accidental contact improving operator safety.

This Staubli Coaxial Connector series provides dependable and safe solutions within industrial and commercial electronic equipment setups. Browse our comprehensive Electronics Components category for related connectors and accessories to complement your assembly needs.
