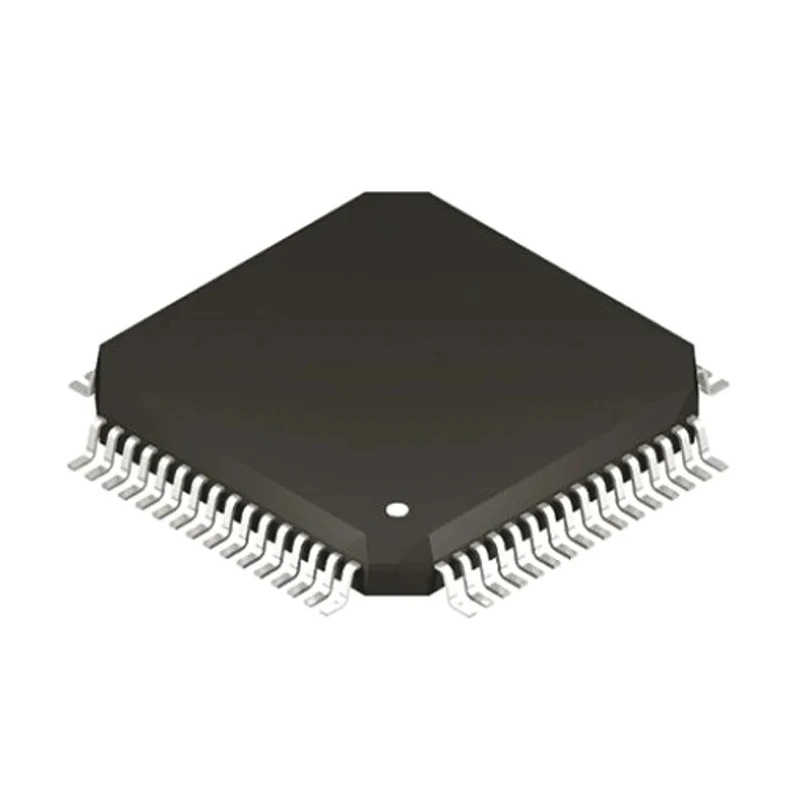

Microchip 16 bit Digital Signal Processor 60 MHz 536kB FLASH 64-Pin TQFP DSPIC33EP512GP806-I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | DSPIC33EP512GP806-I/PT |
| Width | 10mm |
| Mount Type | Surface |
| Core | dsPIC33E/PIC24E |
| Maximum Operating Temperature | 85°C |
| Number Of Cores | 1 |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 52kB |
| ADC Resolution | 12bit |
| Timer Resolution | 32bit |
| Standards/Approvals | IEEE 1149.2, IEC 60730, AEC-Q100 REVG, USB 2.0 OTG-, CAN 2.0B Support |
| Pin Count | 64 |
| Automotive Standard | IEC 60730, AEC-Q100 Rev H Grade 1, AEC-Q100 Rev H |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Program Memory Size | 536kB |
| Maximum Clock Frequency | 60MHz |
| Number of Timers | 4 |
| Instruction Set Architecture | RISC |
| Program Memory Type | FLASH |
| Number of ADCs | 2 |
| Device Million Instructions per Second | 70MIPS |
| Number of PWM Units | 7 |
| PWM Resolution | 8.32ns |
| ADC Channels | 24 |
| Number of PWM Channels | 14 |
| Numeric and Arithmetic Format | Single Cycle (MAC/MPY), Single Cycle Mixed Sign MUL, Code Efficient (C and Assembly) Architecture, Two 40 Bit Wide Accumulators, 32 Bit |
Key Features
- Operates at a maximum clock frequency of 60 MHz.
- Delivers 70 Million Instructions per Second performance.
- Features 16-bit data bus width and 52kB RAM size.
- Program memory includes 536kB of FLASH storage.
- Includes 2 ADCs and 14 PWM channels.
- Supports RISC instruction set architecture.
- Rated for operating temperatures from -40°C to 85°C.
- Compact 64-pin TQFP surface mount package.
Product Description
Microchip DSPIC33EP512GP806-I/PT is a high-performance 16 bit Digital Signal Processor designed for applications requiring precise digital control and processing at up to 60 MHz clock frequency. It features a robust 536kB FLASH program memory and 52kB RAM, packaged in a compact 64-pin TQFP surface mount device suitable for automated assembly.
This DSP utilizes the dsPIC33E/PIC24E core with RISC architecture, capable of delivering 70 MIPS performance. It supports a rich set of peripherals including 2 ADCs with 12-bit resolution, 14 PWM channels with 8.32 ns resolution, and multiple timers that support precision timing and control functions.
Operating voltage ranges from 3 V minimum to 3.6 V maximum, supporting single cycle arithmetic operations with two 40-bit wide accumulators for complex digital signal processing tasks. The device is rated for a wide operating temperature range of -40°C to 85°C and complies with relevant industry and automotive standards, ensuring reliability in harsh environments.
The 64-pin TQFP package measures 10 mm by 10 mm with a height of 1.05 mm, suitable for space-constrained embedded applications. It supports automotive standards AEC-Q100 Rev H Grade 1 and other certifications, making it ideal for motor control, digital audio, speech processing, and other industrial control applications.
Microchip’s dsPIC33EP series DSPs combine digital signal controller performance with microcontroller simplicity, making them a versatile choice for high-speed precision control tasks in industrial, automotive, HVAC, and electronics manufacturing domains.
Operates with a maximum clock frequency of 60 MHz delivering high-speed processing. Incorporates 536kB of FLASH memory for program storage and 52kB of RAM for data handling. Includes 2 analog-to-digital converters and 14 PWM channels for enhanced control.
Compact 64-pin TQFP package designed for surface mounting on PCBs. Supported by multiple industrial standards and automotive certifications. Explore more advanced Digital Signal Processors and microcontrollers at EnvMart to enhance your electronic design projects and industrial applications.
