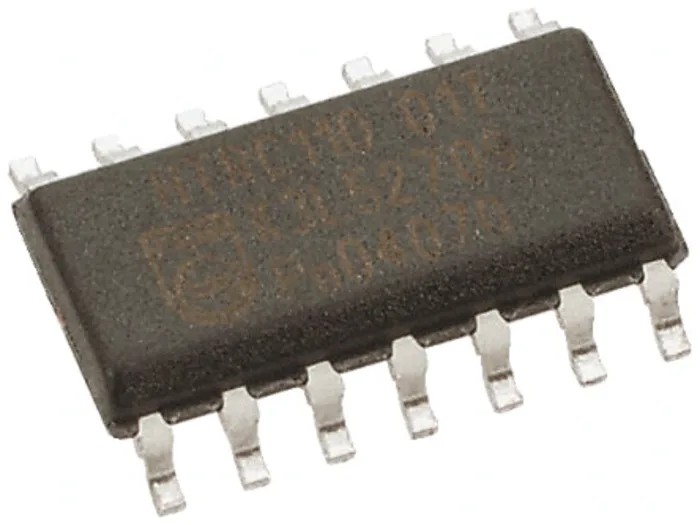

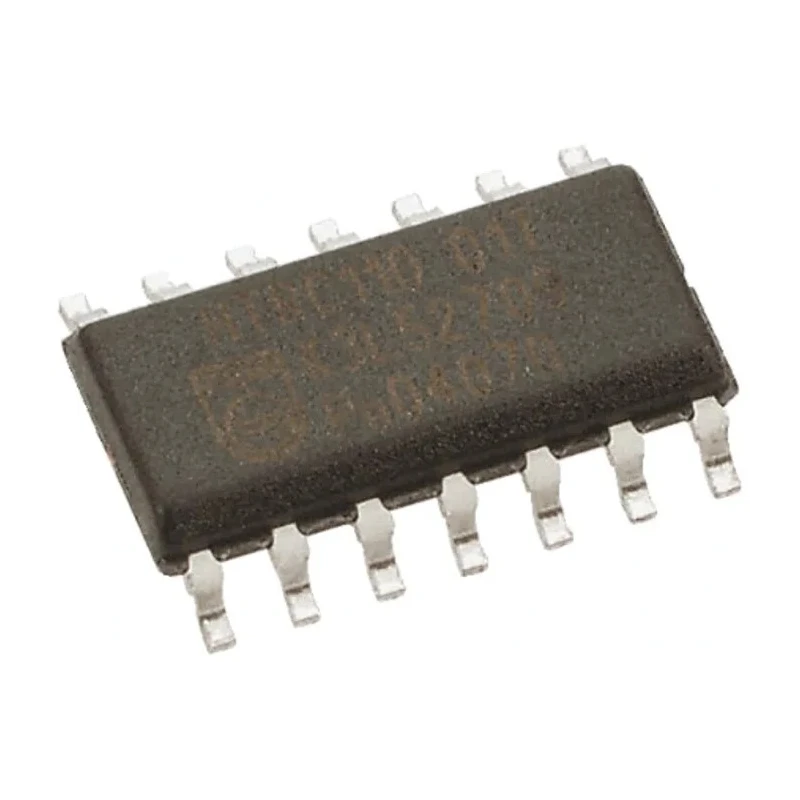

DiodesZetex Operational Amplifier 1 MHz 14-Pin SOIC 2.7V to 5.5V LMV324BG-13

DiodesZetex LMV324BG-13 operational amplifier is designed for electronic applications requiring a reliable general-purpose amplifier with low power supply voltages from 2.7 V up to 5.5 V. This 14-pin SOIC package device comprises four independent amplifiers, making it ideal for multi-channel applications in audio, sensor conditioning, and signal processing sectors.

It features a gain bandwidth product of 1 MHz and a slew rate of 1 V/μs that ensures good frequency response for various analog circuits. The device maintains a low input bias current of 10 nA and an input offset voltage of 7 mV for precise signal amplification.

Operating temperature range from -40°C to 125°C enables use in harsh industrial environments, while its compact dimensions (1.45 mm height, 8.74 mm length, 3.99 mm width) and surface mount SOIC package allow efficient PCB layout design.

This operational amplifier belongs to the LMV321/324/358 series renowned for versatility and performance in industrial, laboratory, instrumentation, and consumer electronics applications. Although no automotive rating is provided, it suits general-purpose amplification tasks requiring stability and repeatability.

Features a gain bandwidth product of 1 MHz for general purpose applications. Includes 4 independent amplifier channels in a single package. Operates reliably between -40°C to 125°C ambient temperature. Low input bias current of 10 nA ensures accurate amplification.

Compact SOIC surface mount package with 14 pins for easy PCB integration. Input offset voltage of 7 mV provides stable output performance. Slew rate of 1 V/μs suitable for moderate frequency signal processing. Height of 1.45 mm, length 8.74 mm, and width 3.99 mm dimensions ensure space-efficient mounting.

This product is commonly used in industrial electronics, manufacturing instrumentation, HVAC systems, and laboratory equipment requiring precision signal amplification. It supports efficient electronic designs in consumer and commercial devices requiring low voltage operation.
