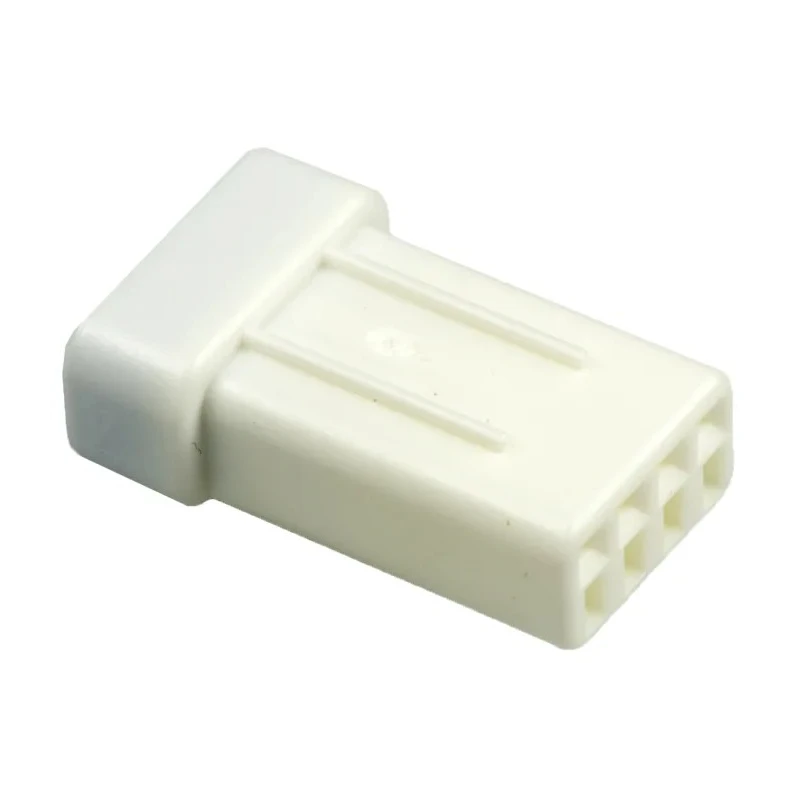

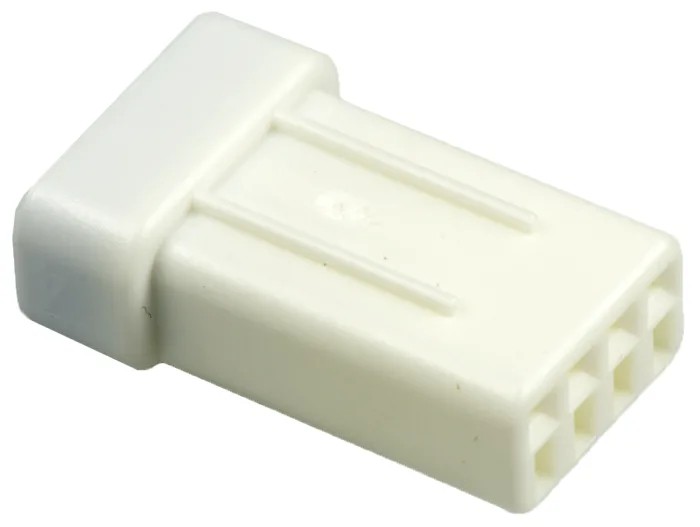

JST JWPF Female Connector Housing 2 mm Pitch 4 Way 1 Row Straight 04R-JWPF-VSLE-S

Free Delivery in India | Lowest Global Shipping Charges

JST JWPF Female Connector Housing 2 mm Pitch 4 Way 1 Row Straight 04R-JWPF-VSLE-S



Category Connector Housing Brand JST Condition New

Specifications

Country of Origin	India
Brand	JST
Orientation	Straight
Length	10.7mm
Model	04R-JWPF-VSLE-S
Width	5.5mm
Mount Type	Cable
Housing Material	Polybutylene Terephthalate
Series	JWPF
Number of Rows	1
Pitch	2mm
For Use With	JWPF Series Receptacle Connector
Number of Contacts	4
Connector Gender	Female
JST, JWPF Female Empty Socket Housing, 2mm Pitch, 4 Way, 1 RowBrand	JST

Key Features

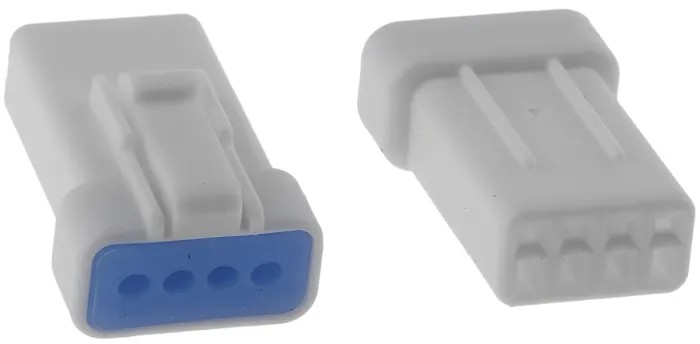

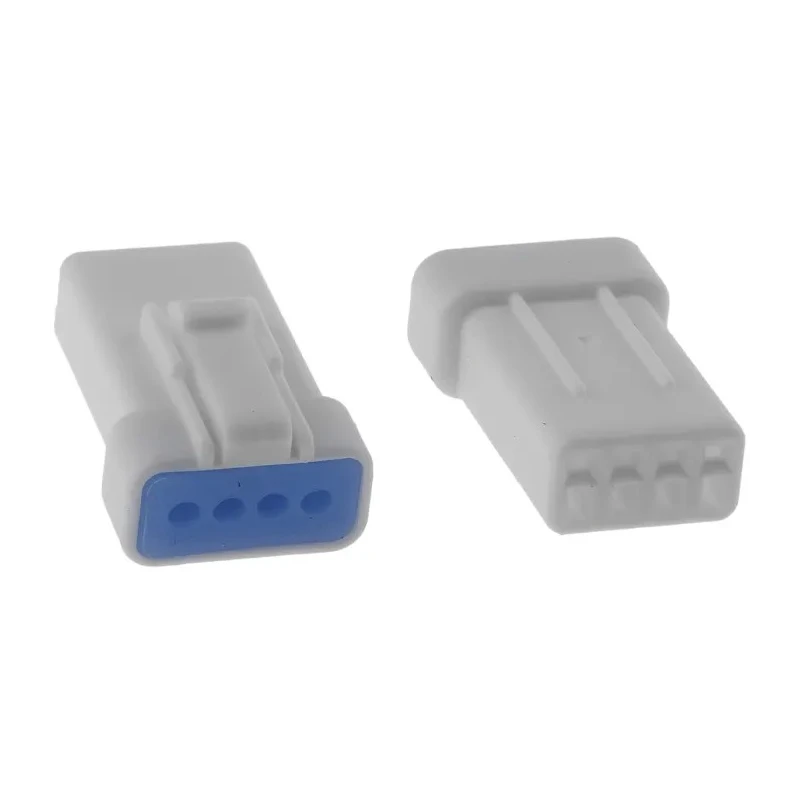

Features a solid rubber seal at the wire side providing waterproof IP67 protection.
Compact design ideal for small applications and secure mating connection.
Contains an inner housing lock and spring action housing to terminal locks for reliable connection retention.
Specifically designed for JWPF series receptacle connectors with 2.00 mm pitch.
Suitable for automotive lighting, appliances, rail industry low current power systems, and factory automation applications.
Constructed from durable polybutylene terephthalate housing material.
Connector orientation is straight with a single row of 4 contacts.
Measures 10.7 mm in length and 5.5 mm in width.

Product Description

JST 04R-JWPF-VSLE-S female connector housing offers a compact and reliable solution for wire-to-wire connections with a 2 mm pitch and 4 contacts arranged in a single straight row. The connector housing employs polybutylene terephthalate material, known for durability and resistance to environmental factors.

Designed to meet the needs of automotive, appliance, rail, and industrial systems, it features an IP67 waterproof rating achieved through a solid rubber seal at the wire side that protects against moisture, dust, dirt, and scratches. The inner housing lock and spring-action locks ensure secure mating and terminal contact retention, crucial for stable electrical connections.

This housing is intended for use with JST's JWPF series receptacle connectors, making it suitable for light cluster units, door mirror controls in vehicles, refrigeration and washing machines, lighting systems, and factory automation equipment requiring compact and robust connectors.

Technical details include a 2.0 mm pitch, straight orientation, and cable mounting type. The housing dimensions are 10.7 mm length by 5.5 mm width, facilitating installation in confined spaces.

IP67 waterproof protection via solid rubber seal. Compact design enabling use in small applications. Inner housing lock for secure mating connection. Spring action locks for reliable contact retention. Female connector with 4 contacts in a single row.

Made from polybutylene terephthalate for durability. Compatible with JWPF series receptacle connectors. 2 mm pitch and straight orientation. Applicable in automotive, appliance, rail, and factory automation industries. Protects against moisture, dust, dirt, and scratches.

Choosing JST Connector Housings ensures high-quality, reliable interconnections for critical electronic systems requiring durable and waterproof connectors. Explore more JST products and accessories on EnvMart to complete your assembly needs.
