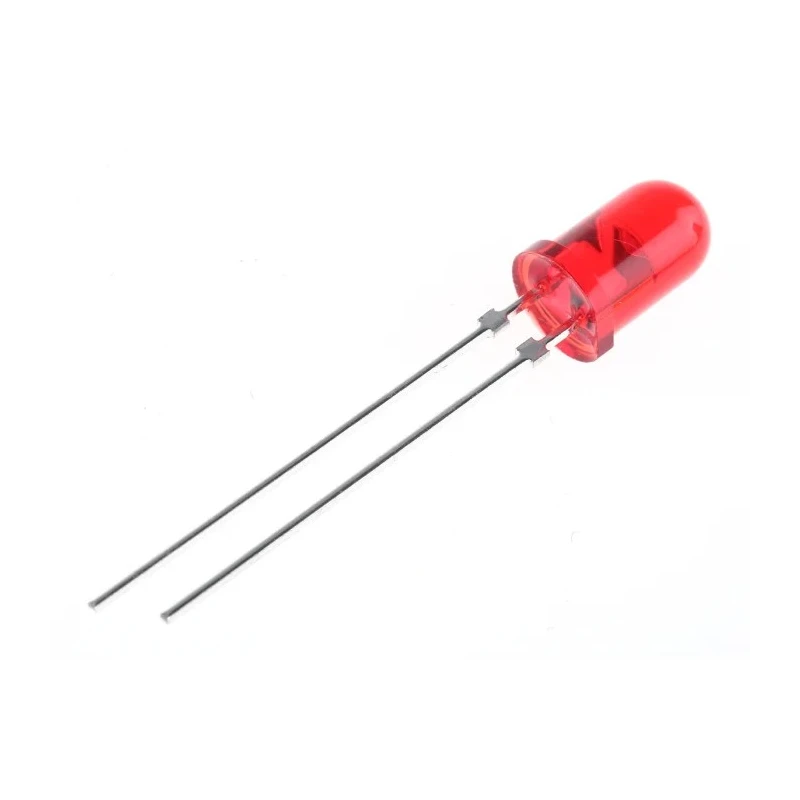

Vishay 3 V Yellow, Red, Green LED 5 mm T-1 3/4 Through Hole TLHR5205

Vishay TLHR5205 is a through-hole LED component engineered for industrial, electronic, and hobbyist applications requiring reliable indicator lighting and visible light signaling. Designed with a 5 mm T-1 3/4 package, this LED supports a maximum forward current of 30mA with a forward voltage of 3 V, making it suitable for low voltage indicator circuits.

The LED features a round, non-diffused red lens with a ±14 degree viewing angle that ensures focused and clear illumination. The lens dimensions of 5.8 mm diameter by 8.7 mm length offer compatibility with standard through-hole mounting techniques for PCB assembly.

Emitting yellow, red, and green light, with a dominant wavelength of 625 nm for the red color, it achieves a luminous intensity of 70 millicandela, ideal for displays, indicators, and other visual status signaling in control panels or instrumentation. The component is halogen-free and meets JEDEC JS709A and RoHS compliance, promoting safer manufacturing and disposal processes.

This 2-pin LED is sourced from China and is designed to fit seamlessly into electronics manufacturing processes, providing a durable and clear solution for light emission needs. Its compact size and robust electrical specifications make it an essential part for electronics prototyping and volume production.

The LED package size is 5 mm (T-1 3/4) with a round, non-diffused lens. Maximum forward current is 30 mA with 100 mW power dissipation. Forward voltage rating is 3 V. Viewing angle is ±14 degrees for focused light emission.

Luminous intensity is 70 mcd, suitable for indicator applications. Compliance with Halogen Free (JEDEC JS709A) and RoHS standards. Ideal for industrial, laboratory, electronic display, indicator lights, and hobbyist projects requiring reliable multicolor LED signaling.
