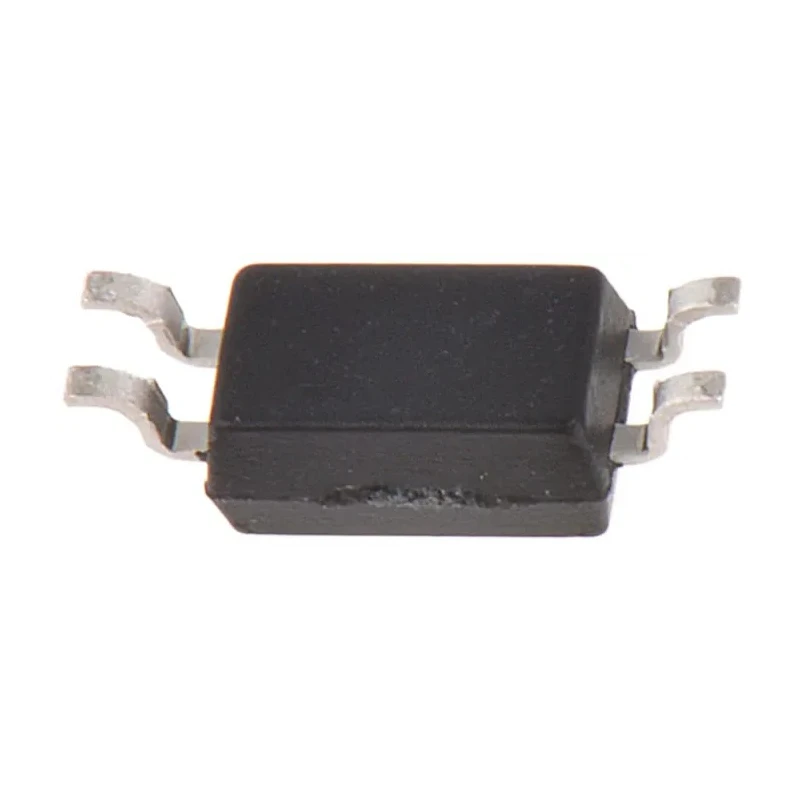

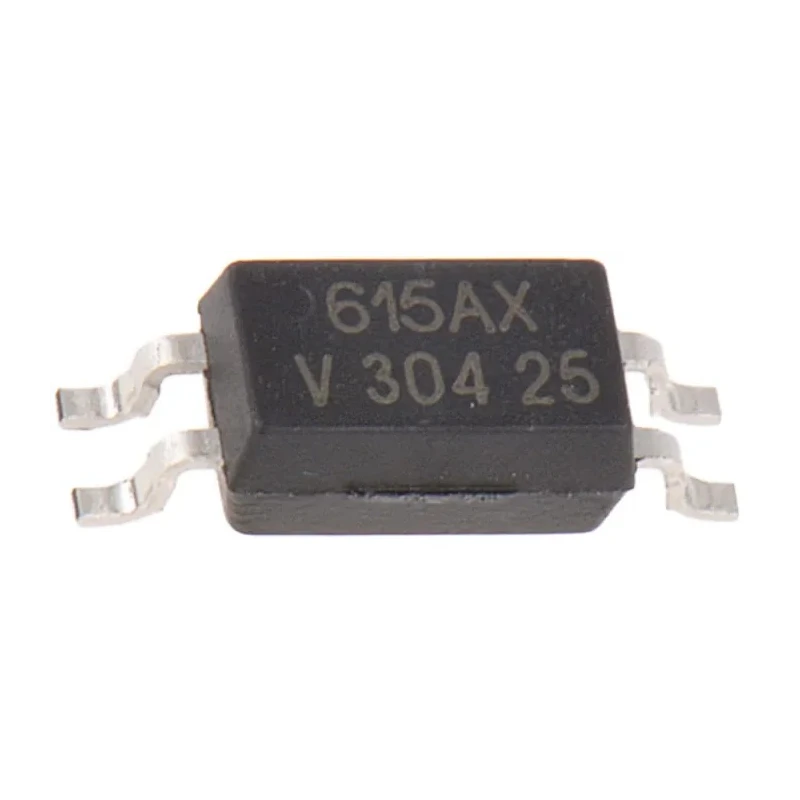

Vishay DC Input Optocoupler Surface Mount 4-Pin SSOP 1 Channel Phototransistor Output VOS615A-X001T

Free Delivery in India | Lowest Global Shipping Charges

Vishay DC Input Optocoupler Surface Mount 4-Pin SSOP 1 Channel Phototransistor Output VOS615A-X001T

Name: Vishay DC Input Optocoupler Surface Mount 4-Pin SSOP 1 Channel Phototransistor Output VOS615A-X001T
Brand: Vishay
SKU: 377051
Price: 0.46 USD
Availability: InStock



Category Optocoupler Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Model	VOS615A-X001T
Packaging	Tape & Reel
Mount Type	Surface
Output type	Phototransistor
Series	VOS
Maximum Operating Temperature	110°C
Package Type	SSOP
Minimum Operating Temperature	-55°C
Maximum input current	50mA
Number Of Channels	1
Standards/Approvals	UL, EN
Maximum Forward Voltage	1.5V
Number of Pins	4
Input Current Type	DC
Typical Rise Time	3μs
Maximum Current Transfer Ratio	6%
Minimum Current Transfer Ratio	40%

Key Features

Designed for signal isolation applications in electronic circuits.
Supports DC input current with a maximum of 50mA.
Provides a high isolation voltage of 3750Vrms for secure communication.
Operates reliably in temperature range from -55°C to 110°C.
Typical rise and fall times of 3μs ensure fast response.
Compact 4-pin SSOP package suitable for surface mounting.
Complies with UL and EN standards for safety and quality.
Packaging available in tape and reel format for automated assembly.

Product Description

Vishay VOS615A-X001T is a high-performance DC input optocoupler designed for isolation of digital signals in electronic circuits. This device features a compact 4-pin SSOP surface mount package with a phototransistor output, enabling effective transfer of electrical signals while maintaining galvanic isolation up to 3750Vrms.

The optocoupler supports a single channel with DC input current of up to 50mA and a maximum forward voltage of 1.5V, making it suitable for low power applications. Typical rise and fall times of 3 microseconds ensure fast switching and response, which is critical in industrial, automotive signal isolation, and communication interface applications.

Engineered to operate across a wide temperature range from -55°C to 110°C, the device offers excellent stability and reliability under harsh environmental conditions. It complies with UL and EN standards, confirming its safety and quality compliance.

The product is supplied in tape and reel packaging, facilitating efficient automated PCB assembly in manufacturing environments. The VOS series optocoupler by Vishay Semiconductor is ideal for applications requiring electrical isolation, noise reduction, and interference suppression in industrial electronics, automation systems, instrumentation, and control circuits.

Designed for signal isolation in industrial and electronic systems. Phototransistor output provides linear and digital switching capabilities. High isolation voltage ensures safety across separated circuits. Surface mount SSOP package minimizes PCB footprint.

Wide operating temperature for harsh environment usage. UL and EN standards certified for high reliability. Typical 3μs switching speeds suitable for fast signal processing. Tape and reel packaging supports volume production assembly.

Explore the Vishay range of Optocouplers at EnvMart for reliable and efficient optoelectronic isolation components suitable for various industrial, electronics manufacturing, and automation system applications.
