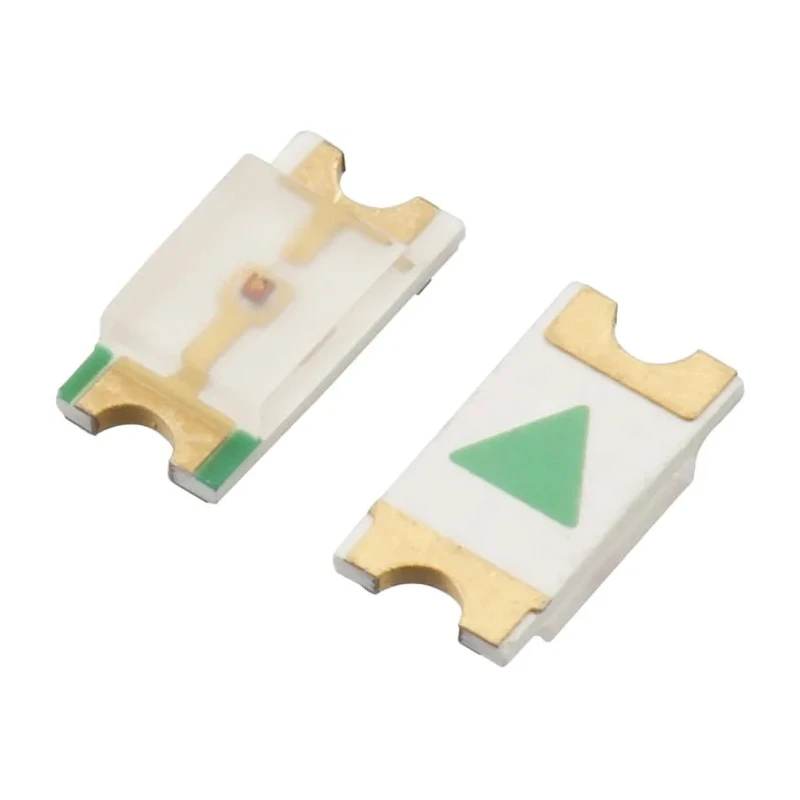

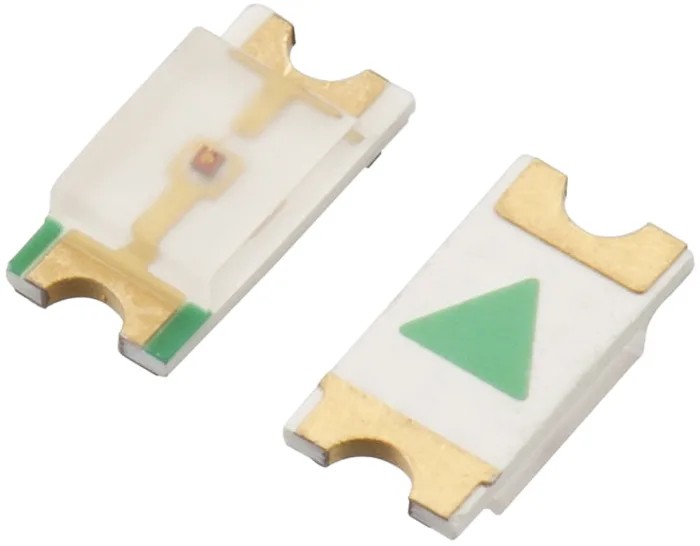

Wurth Elektronik 2 V Amber LED 3216 Surface Mount Tape & Reel 30mA 72mW WL-SMCW 150120AS75000

Wurth Elektronik 150120AS75000 is a high-brightness amber LED in a 3216 compact surface mount package. Operating at a forward voltage of 2 V and a maximum forward current of 30mA, this WL-SMCW series LED is designed for energy-efficient illumination with a maximum power dissipation rating of 72mW. The LED features a clear rectangular lens measuring 3.2 x 1.6 x 0.68 mm, with a wide viewing angle of 140 degrees and a luminous intensity of 140 millicandela, making it suitable for a variety of industrial and electronic applications.

This LED provides a dominant wavelength of 605 nm, emitting a bright amber color that suits indicator lighting, backlighting for mobile and portable devices, messaging displays, and optical indicators. The surface mount device (SMD) with 2 pins is supplied in tape and reel packaging format, facilitating high-volume automated manufacturing processes.

Designed to meet RoHS compliance and other environmental standards, this component ensures sustainability without compromising reliability or longevity. It is available in multiple industry-standard package sizes including 0603, 0805, and 1206, but the 3216 package size offers an excellent balance of brightness and compact footprint.

The WL-SMCW series LEDs are known for high luminous efficacy and low energy consumption, ideal for commercial, industrial, and consumer electronic applications. It finds utility in switch and indicator illumination, message boards, toys, and general lighting solutions where a bright amber light output is required.

Country of origin: China. This product ensures consistent performance with long service life even in demanding operating environments. The LED emits amber light with a 605nm dominant wavelength. Compact 3216 package size suitable for surface mount applications.

Wide viewing angle of 140 degrees for broad illumination. Rated for a maximum forward current of 30mA ensuring energy efficiency. Clear rectangular lens design providing excellent light output of 140 mcd luminous intensity.

Packaged in tape and reel format supporting automated assembly processes. RoHS compliant, making it environmentally friendly and safe for use. Manufactured in China with industry-standard package options including 0603, 0805, and 1206.
