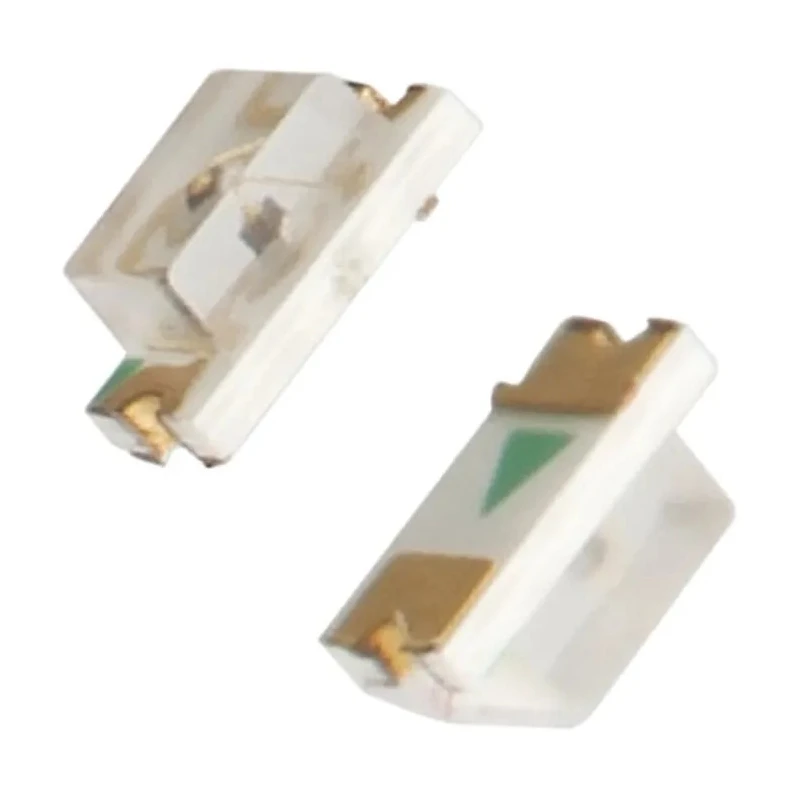

Wurth Elektronik 3.5 V Green LED 0603 Surface Mount WL-SMCW 150060GS75000

Wurth Elektronik 150060GS75000 is a 3.5 V green LED in a compact 0603 surface mount package from the WL-SMCW series. This single colour LED features a water-clear rectangular lens and is designed for top viewing with an exceptionally wide viewing angle of 140 degrees, making it ideal for multiple electronic applications requiring bright and reliable illumination.

Operating at a maximum forward current of 30 mA and power dissipation of 114 mW, this LED emits a luminous intensity of 430 mcd with a dominant wavelength of 520 nm, ensuring vibrant green light output. The package dimensions are 1.6 x 0.8 x 0.7 mm, enabling integration into space-constrained circuit boards using surface mount technology. The device is packaged in tape and reel format to facilitate automated assembly processes.

The WL-SMCW series LEDs are well-suited for use in backlighting for mobile and portable devices, indicator lights, switch illumination, and general display functions in electronic equipment. Their water-clear lenses provide sharp and clear light output, and the components are RoHS compliant, ensuring environmentally friendly manufacturing.

High brightness single colour SMD LED with rectangular lens. Compact 0603 package for space-efficient surface mounting. Wide 140° viewing angle for uniform illumination coverage. Rated for 30 mA forward current and 3.5 V forward voltage.

430 mcd luminous intensity and 520 nm dominant wavelength. RoHS compliant with tape and reel packaging for automated production.

This LED is used widely in industrial electronics, consumer products, laboratory instrumentation, and telecommunications equipment needing clear, efficient green indication. It combines low power consumption with long operational life and high reliability. The product is manufactured in China and meets industry quality standards.
