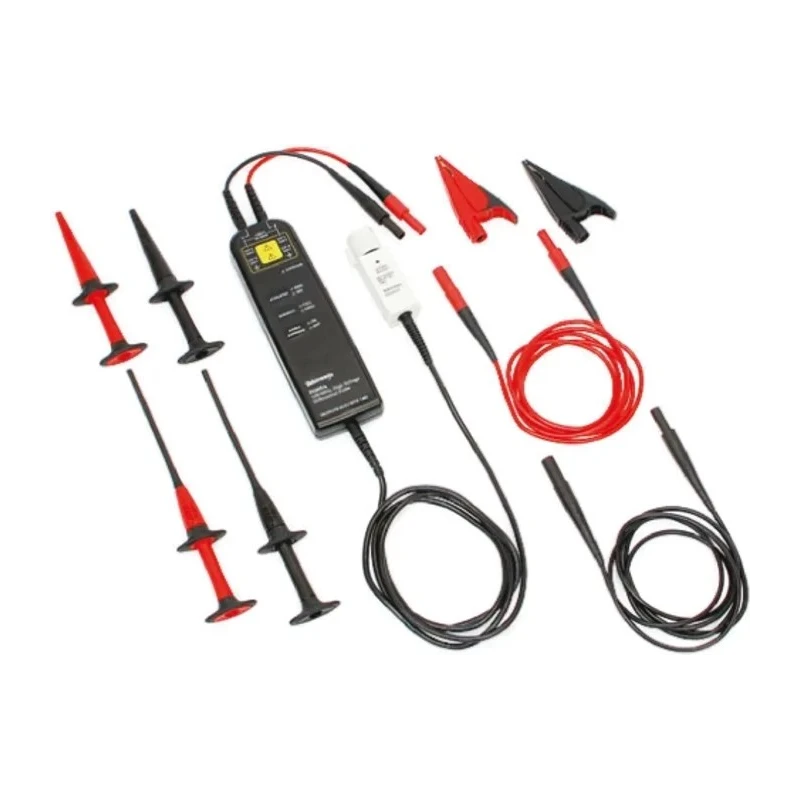

Tektronix High Voltage Differential Oscilloscope Probe 100MHz, 1kV Safety CAT II P5205A
Specifications
| Country of Origin | China |
|---|---|
| Brand | Tektronix |
| Model | P5205A |
| Connector Type | Pincer Clip, Hook Tip, Alligator Clip |
| Bandwidth | 100MHz |
| Series | P52XXA |
| Probe type | Differential, High Voltage |
| Standards/Approvals | CE, ISO 9001 |
| Safety Category Level | CAT ll |
| Safety Category Voltage | 1kV |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 734-5026Brand: TektronixManufacturers Part No.: P5205ADistrelec Article No.: 17628178 |
| Maximum Common Mode Input Voltage | 1kV |
Key Features
- Reliable differential probe performance for measuring floating IGBT circuits.
- High voltage rating with 1kV maximum common mode input voltage and CAT II safety compliance.
- Bandwidth of 100 MHz for accurate signal capture of fast rise times.
- Includes 2 hook clips, 2 pincer clips, 2 alligator clips, and 2 extension cables for flexible connections.
- Compatible with Tektronix oscilloscopes featuring the TEKPROBE® interface.
- Ideal for applications in power converters, motor drives, and electronic ballast design.
- Safety and overrange indicators ensure secure usage in industrial environments.
- Manufactured in China with adherence to CE and ISO 9001 standards.
Product Description
Tektronix P5205A is a high voltage differential Oscilloscope Probe engineered for industrial and laboratory use, providing accurate measurement of fast rise-time signals in floating circuits up to 1kV. It is particularly suitable for applications involving IGBT circuits such as motor drives and power converters. Designed to operate with Tektronix oscilloscopes using the TEKPROBE® interface, it offers seamless scale communication and precise signal acquisition.
This probe has a bandwidth of 100 MHz and supports a maximum common mode input voltage of 1kV, complying with CAT II safety standards for reliable operation in industrial measurement environments. The variety of connector options including pincer clip, hook tip, and alligator clip, together with supplied extension cables and multi-clip accessories, provides extensive versatility for complex testing scenarios.
Tektronix's high voltage differential probes like the P5205A series are essential tools for engineers working in power converter design, power supply evaluation, motor drive circuits, electronic ballast development, and CRT display testing. The probe incorporates overrange indicators and is safety certified under CE and ISO 9001 certifications, ensuring both performance and operator safety.
Reliable differential probe performance for measuring floating IGBT circuits. High voltage rating with 1kV maximum common mode input voltage and CAT II safety compliance. Bandwidth of 100 MHz for accurate signal capture of fast rise times.
Includes 2 hook clips, 2 pincer clips, 2 alligator clips, and 2 extension cables for flexible connections. Compatible with Tektronix oscilloscopes featuring the TEKPROBE® interface. Ideal for applications in power converters, motor drives, and electronic ballast design.
Safety and overrange indicators ensure secure usage in industrial environments. Manufactured in China with adherence to CE and ISO 9001 standards. This package contains all necessary accessories to ensure flexible and precise measurements in laboratory, industrial, and commercial testing environments.
Discover the complete range of Tektronix measuring instruments and probes at EnvMart for advanced test and measurement solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Tektronix P5205A probe has a bandwidth of 100 MHz, allowing for accurate signal capture of fast rise times.
This model supports a maximum common mode input voltage of 1kV, ensuring safe operation in high voltage applications.
The P5205A includes multiple connector types: pincer clips, hook tips, and alligator clips, providing flexibility for various testing scenarios.
It is specifically designed to be compatible with Tektronix oscilloscopes that feature the TEKPROBE® interface.
The probe complies with CAT II safety standards, making it suitable for industrial measurement environments.
This probe is ideal for applications in power converters, motor drives, and electronic ballast design.
The P5205A features safety and overrange indicators to ensure secure usage in industrial environments.
It is manufactured in compliance with CE and ISO 9001 standards, ensuring adherence to quality and safety protocols.
The Tektronix P5205A probe is manufactured in China.
The P5205A is a high voltage differential probe, designed for accurate measurement in floating circuits.
Included with the P5205A are 2 hook clips, 2 pincer clips, 2 alligator clips, and 2 extension cables for flexible connections.
The P5205A is part of the P52XXA series of high voltage differential probes from Tektronix.
