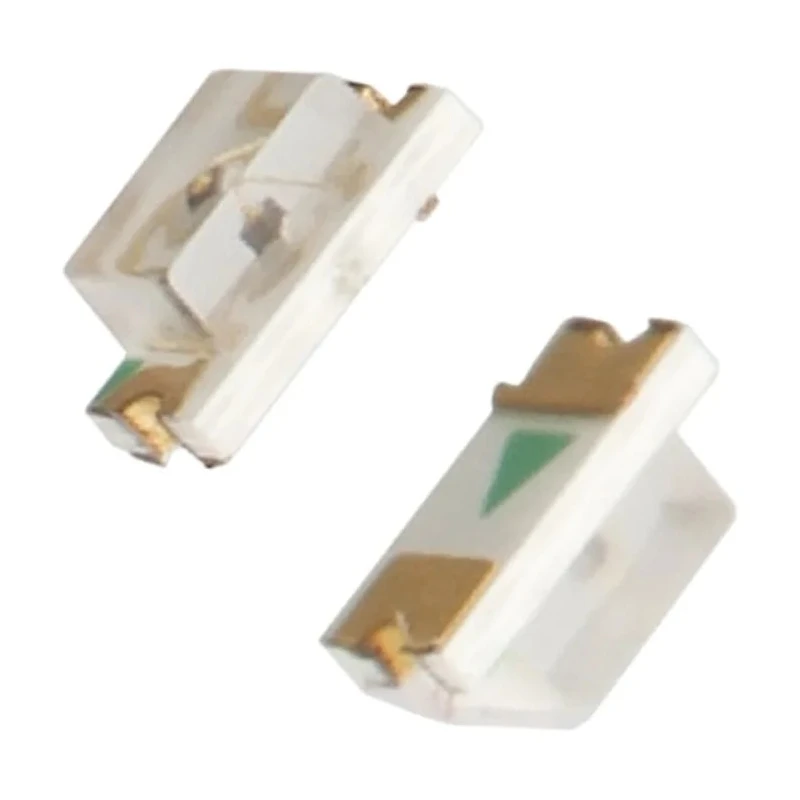

Wurth Elektronik 2.4 V Red LED 0603 Surface Mount WL-SMCW 150060SS75000

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik 2.4 V Red LED 0603 Surface Mount WL-SMCW 150060SS75000

Name: Wurth Elektronik 2.4 V Red LED 0603 Surface Mount WL-SMCW 150060SS75000
Brand: Wurth Elektronik
SKU: 376360
Price: 0.16 USD
Availability: InStock



Category LED Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Model	150060SS75000
Packaging	Tape & Reel
Mount Type	Surface
Series	WL-SMCW
Maximum forward current	30mA
Viewing angle	140 °
Package Type	0603
Standards/Approvals	RoHS
LED Colour	Red
Dominant Wavelength	630nm
Forward Voltage	2.4V
Number of Pins	2
LED Luminosity	60 mcd
Maximum Power Dissipation	72mW
Lens Dimensions	1.6 x 0.8 x 0.7 mm
Lens Shape	Rectangular
Industry-standard packages	0603 / 0805 / 1206

Key Features

The LED features a water-clear rectangular lens with dimensions of 1.6 x 0.8 x 0.7 mm.
Maximum forward current is 30 mA with a forward voltage of 2.4 V and power dissipation of 72 mW.
It has a wide viewing angle of 140 degrees and a luminous intensity of 60 millicandelas.
Mount type is surface mount with industry-standard 0603 package size.
Suitable for backlighting, indicator illumination, message boards, optical indicators, toys, and general lighting.
The chip LED is RoHS compliant and manufactured in China, part of the WL-SMCW series.

Product Description

Wurth Elektronik model 150060SS75000 is a high-quality 2.4 V red LED from the WL-SMCW series, featuring an industry-standard 0603 surface mount package. This LED chip is designed with a water-clear rectangular lens measuring 1.6 x 0.8 x 0.7 mm, providing a wide 140-degree viewing angle and luminous intensity of 60 mcd.

It operates at a maximum forward current of 30 mA with a forward voltage of 2.4 V and power dissipation capped at 72 mW to ensure energy efficiency. The device includes two pins for surface mounting and is supplied in tape and reel packaging to facilitate automated PCB assembly.

This WL-SMCW LED series is known for its high reliability and long service life, making it an excellent choice for industrial, electronic components, laboratory, and commercial applications including backlighting for mobile and portable devices, switch and indicator illumination, message boards, optical indicators, toys, and general lighting.

The LED is RoHS compliant, confirming adherence to environmental and safety standards, and is manufactured in China. The LED features a water-clear rectangular lens with precise dimensions for compact SMT application. Energy-efficient operation with low forward voltage and power dissipation suitable for extended use.

Wide viewing angle enhances visibility in various lighting conditions. Standard 0603 industry package ensures compatibility with existing PCB designs. Robust RoHS certification ensures environmental compliance for industrial and commercial deployment.
