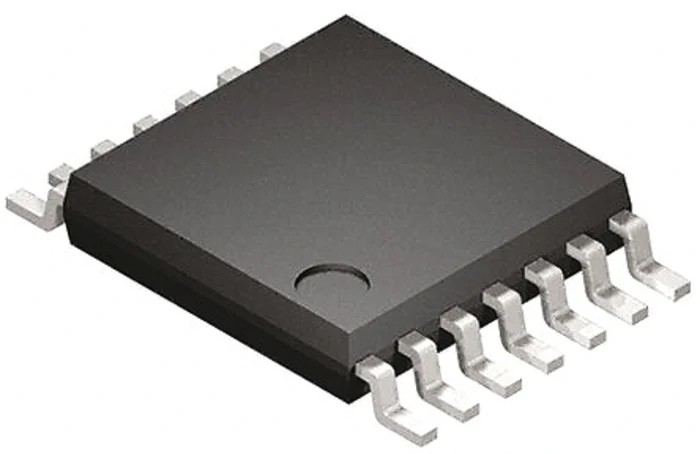

onsemi Operational Amplifier 4.5 MHz, 14-Pin 44V TSSOP MC33074DTBR2G

onsemi MC33074DTBR2G is a high-performance operational amplifier designed for surface mount applications with a 14-pin TSSOP package. It delivers a gain bandwidth product of 4.5 MHz and operates with a wide supply voltage range from 3 V to 44 V, making it versatile for use in diverse industrial, automotive, and electronic circuit designs.

The quad-channel amplifier features a high slew rate of 13 V/μs, enabling fast signal transitions and minimal distortion. Input offset voltage is tightly controlled at 5 mV, complemented by low input bias current of 500 nA and input offset current of 75 nA, ensuring precise amplification and stable performance.

With an output current capability of 30 mA, the MC33074 supports driving moderate loads efficiently while maintaining low harmonic distortion levels, rated at 0.02%. It supports wide input common mode voltage including ground, suitable for single supply operation in industrial control, measurement, and automotive electronics.

The device complies with RoHS environmental directives and meets automotive AEC-Q100 standards, guaranteeing reliability and quality in demanding environments. Package dimensions are compact, only 5.1 mm by 4.5 mm footprint with 1.05 mm thickness, optimizing board space utilization.

Additional notable technical features include fast settling time of 1.1 μs to 0.1%, wide capacitance drive from 0 to 10,000 pF, and excellent phase margin of 60 degrees for stable oscillation-free operation. These characteristics make it suitable for precision amplification tasks in laboratory instrumentation, manufacturing equipment, and embedded systems.

This operational amplifier is widely used in industrial electronics, automotive systems, audio processing, and signal conditioning circuits where swift, accurate analog signal amplification is critical.

Environmentally conscious electronics designers will appreciate the RoHS compliance and robust construction of the MC33074DTBR2G, coupled with its multiple channel integration which reduces component count and complexity.

Explore EnvMart's selection of onsemi Operational Amplifiers for high quality, reliably performing semiconductor amplifiers tailored to complex electronic application requirements.

Four channels integrated into a single package for multi-signal amplification. Wide supply voltage range between 3 V to 44 V supporting various applications. High slew rate of 13 V/μs ensures rapid signal response. Input offset voltage of 5 mV with low bias and offset currents for precision performance.

Robust output current capability of 30 mA suitable for driving loads. Compliant with RoHS standards ensuring environmental safety. Automotive grade AEC-Q100 certified for enhanced reliability in automotive applications. Compact dimensions of 5.1 mm length, 4.5 mm width, and 1.05 mm height in TSSOP form factor.

Wide operating temperature range from -40°C to 85°C for industrial conditions. Fast settling time of 1.1 μs to 0.1% accuracy for stable output signals.
