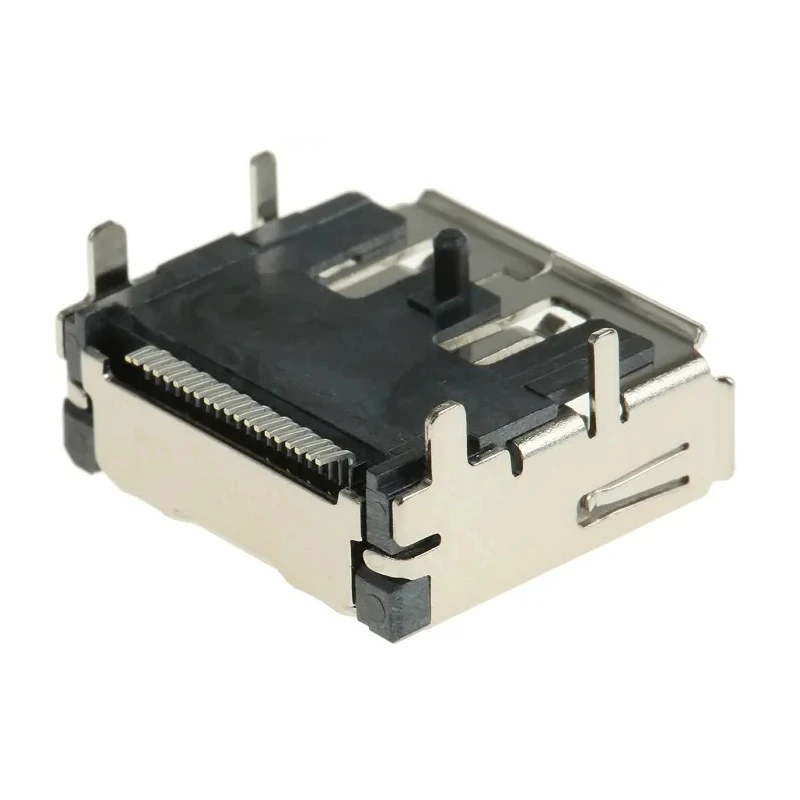

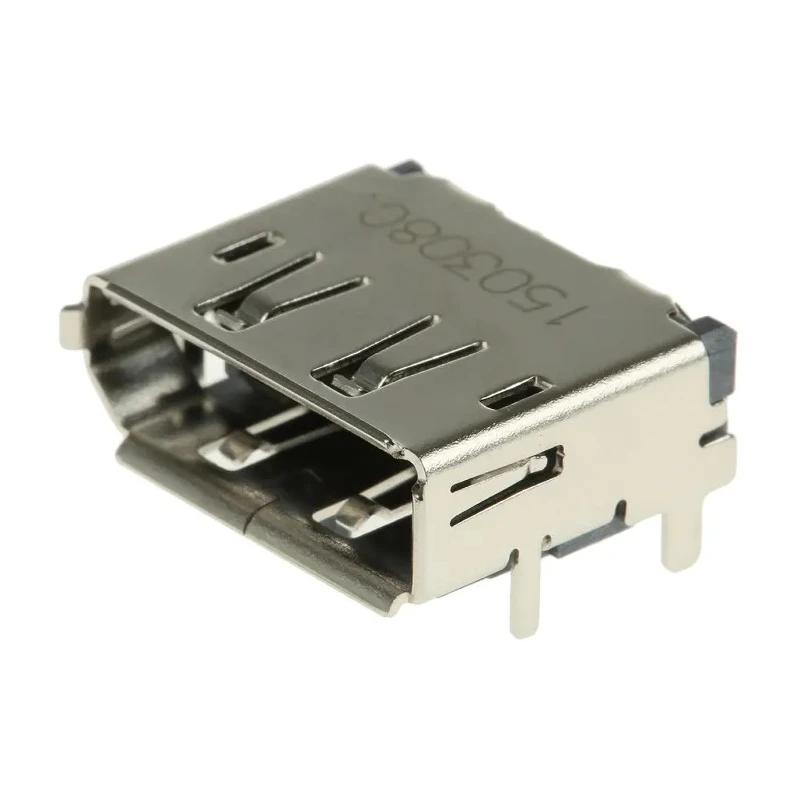

Molex DisplayPort Series Right Angle Surface PCB Socket, 20-Contact, 2 Row, 40V, 0.5 mm Pitch, Solder Termination 47272-0001

Molex 47272-0001 DisplayPort Series Right Angle Surface PCB Socket is a precision-engineered connector designed for reliable high-speed data and power transmission on printed circuit boards. Featuring 20 contacts arranged in 2 rows with a 0.5 mm pitch, this surface-mounted PCB socket enables compact and organized cable-to-board connections primarily in high-definition video applications.

The right-angle orientation facilitates installation in constrained or awkward PCB layouts while maintaining optimum signal integrity. The metal housing is fully shielded, offering robust protection against electromagnetic interference (EMI) and radio-frequency interference (RFI), ensuring interference-free power and data transfer.

Copper alloy contacts plated with gold provide excellent conductivity and resistance to corrosion, contributing to long-term connection reliability. The inclusion of plastic alignment pegs guarantees precise PCB placement, while metal solder pegs deliver enhanced retention and mechanical stability during surface mounting.

This socket supports up to 500 mA current at 40 V, suitable for various industrial, information technology, automotive, and gaming console applications. Its wide operating temperature range from -20°C to 85°C allows dependable function in challenging environments.

Additional features include detent locks and latch holes that secure mating connections firmly, minimizing disconnection risks and maintaining optimal signal quality. Its compact footprint conserves PCB space, making it ideal for space-sensitive projects requiring reliable video interface connectivity.

Right-angle surface mount for space-saving PCB design. 20 contacts in 2 rows at 0.5 mm pitch. Gold-plated copper alloy contacts for durability and conductivity. Fully shielded housing to protect against EMI and RFI. Detent locks and latch holes ensure firm connections.

Plastic alignment pegs and metal solder pegs for mounting precision and retention. Supports 500 mA current and 40 V voltage. Operating temperature range of -20°C to 85°C. Applications in IT, automotive, and gaming console sectors.

Available for use in industrial, laboratory, manufacturing, and commercial video signal applications demanding high reliability and compact connector designs. Browse the PCB Socket category on EnvMart for related products and accessories to enhance your electronic assembly projects.
