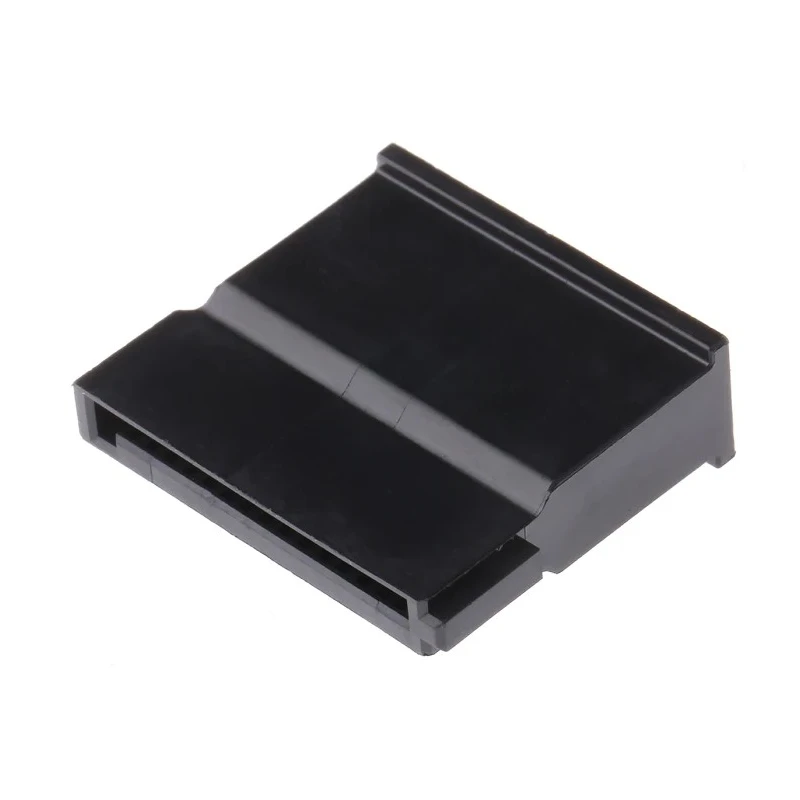

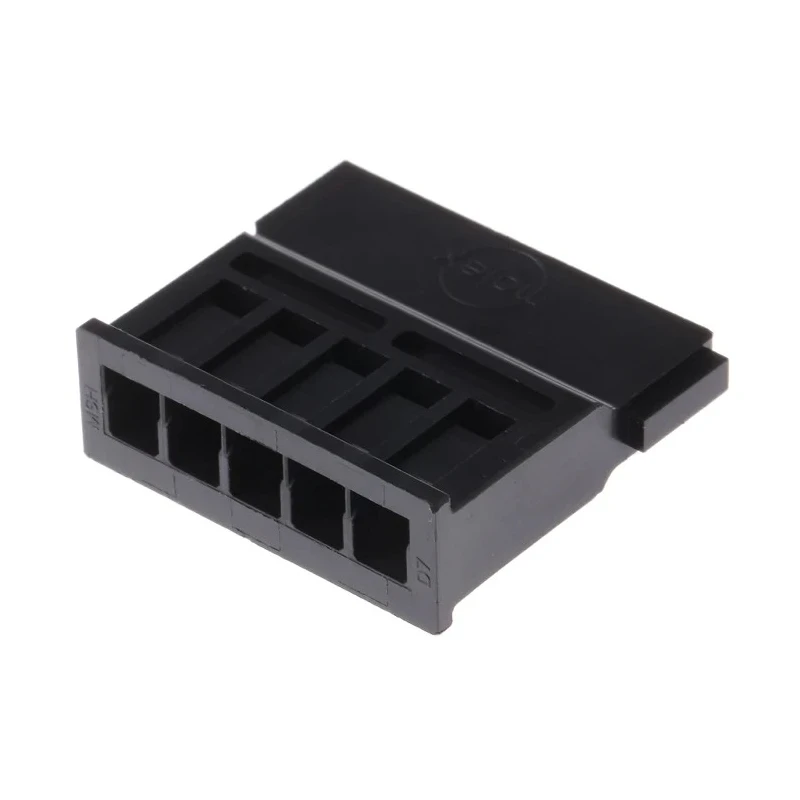

Molex SATA Female Connector Housing 1.27 mm Pitch 15 Way 1 Row Straight 67582-0000

Molex 67582-0000 SATA Female Connector Housing provides a reliable connection solution with a 1.27 mm pitch and 15 way contacts arranged in a single row. Manufactured from impact-resistant polyester, it ensures durability for industrial, electronics, robotics, and automation applications.

This connector housing is specifically designed for cable mounting and mates with the 67581 crimp terminals, which support wire sizes from 22 to 18 AWG and offer gold plating for enhanced conductivity and corrosion resistance. The straight body orientation and keyed design ensure precise PCB header connection without risk of incorrect alignment.

With a lightweight of just 2.16 grams and compact dimensions (24.12 mm length and 7.7 mm width), it reduces system strain while occupying minimal physical space. Its operating temperature range from -35°C to +85°C allows it to perform reliably in harsh working environments.

The housing is flame-resistant, ceasing combustion within 10 seconds in the event of fire, which bolsters workplace safety. It supports serial ATA cable mount applications and is well suited for use in solid-state memory drives, laptops, mainframe computers, and other critical computer electronics.

Industrial sectors such as electronics manufacturing, computer hardware production, and automation engineering can benefit from this connector housing’s robust specifications and ease of integration.

Constructed from durable polyester material ensuring robust and impact-resistant housing. Single row straight connector housing with 15 contacts arranged at 1.27 mm pitch. Compatible with Molex 67581 crimp terminals supporting 22-18 AWG wires.

Lightweight and compact design minimizes system strain and space use. Wide operating temperature range from -35°C to +85°C for demanding environments. Flame-resistant housing enhances workplace safety by stopping flame spread quickly.

Keyed design ensures accurate mating with PCB headers to prevent misalignment. Suitable for computer electronics, robotics, and automation industrial applications. Supports low voltage (15 Vdc) and current (1.5 A per contact) power needs.
