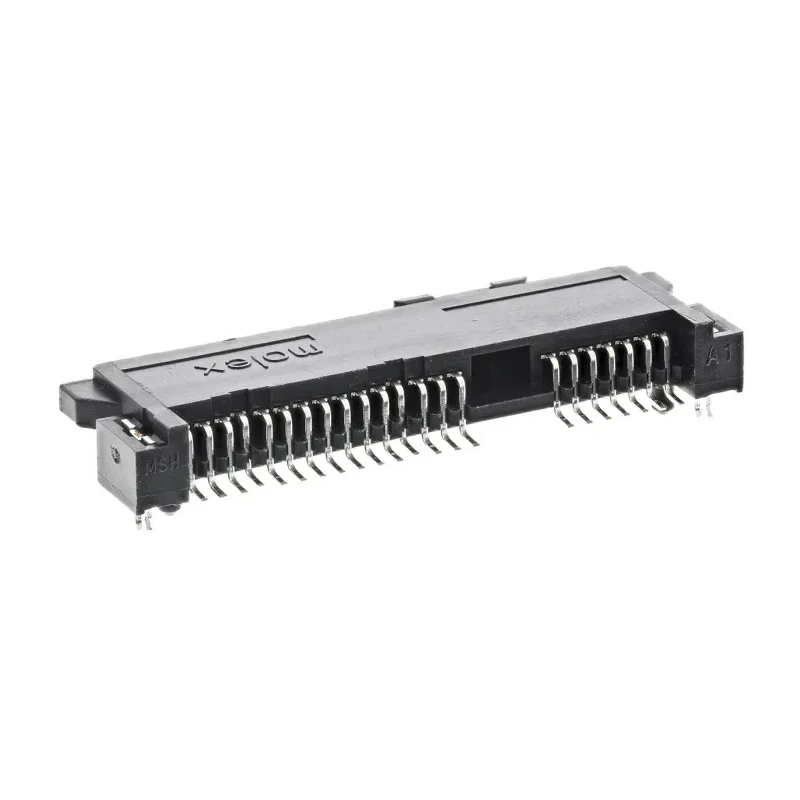

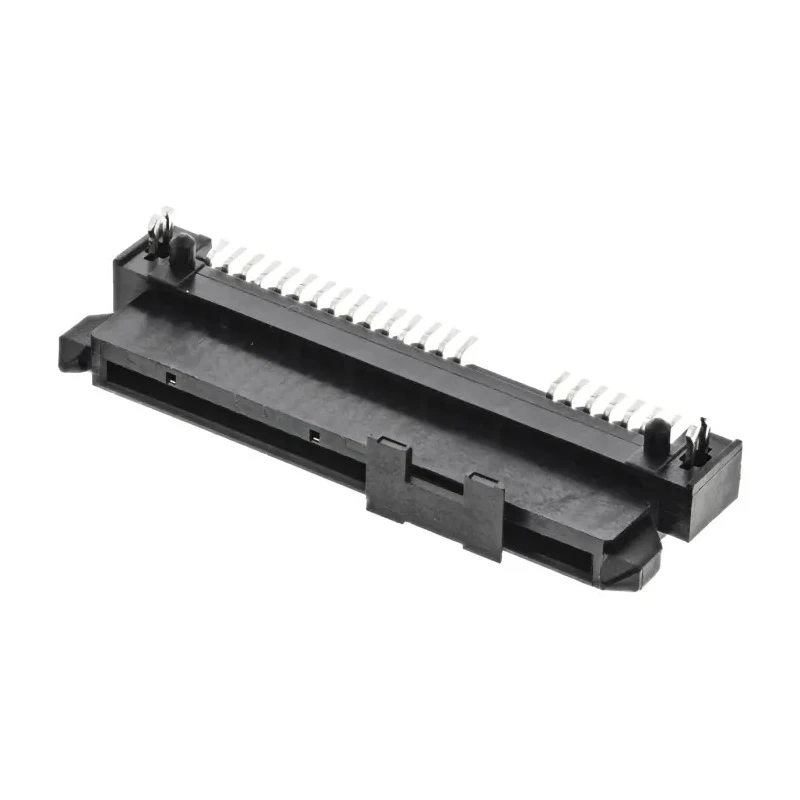

Molex Serial ATA SATA Series Right Angle Surface PCB Socket 22-Contact 1 Row 1.27 mm Pitch 47018-4001
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 15V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1.5A |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Copper |
| Series | SATA |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -35°C |
| Number of Rows | 1 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 22 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Features a right angle orientation for surface mounting on PCBs.
- Employs thermoplastic housing material with gold plated copper contacts for reliable connectivity.
- Supports operating voltage up to 15V and current rating of 1.5A.
- Operating temperature range from -35°C to 85°C suitable for various industrial environments.
- Designed for SMT solder termination ensuring robust mechanical and electrical performance.
- Connector system is board-to-board type with female contact gender.
- Contact plating thickness is 0.76 μm gold ensuring corrosion resistance and signal integrity.
- Series is compliant with Serial ATA specifications supporting 1.5Gbps transfer speeds.
Product Description
Molex 47018-4001 SATA Series Right Angle Surface PCB Socket is a high quality PCB socket designed for industrial applications involving Serial ATA desktop and server storage interconnects. The connector features 22 contacts arranged in a single row with a 1.27 mm pitch. These SMT right angle top mount type sockets provide secure and precise connections on PCBs in demanding environments.
The socket is constructed with a thermoplastic housing and copper contacts plated with gold to ensure excellent conductivity and corrosion resistance. It supports an operating voltage of up to 15V and current rating of 1.5A, meeting typical power requirements for storage interfacing.
Operating temperature ranges from -35°C to 85°C, making this socket suitable for a wide range of industrial, laboratory, and commercial applications. Its board-to-board connector system, right angle orientation, and solder termination type provide ease of installation and reliable mechanical retention on the circuit board.
The Molex SATA Series supports standard form factors including 1.8", 2.5", and 3.5" drives, with compatibility for cabled and direct docking systems. The 0.76 μm gold plated contacts ensure durability and optimal signal transmission for SATA Generation 1 speeds at 1.5Gbps.
Right angle surface PCB socket with 22 female contacts. Thermoplastic housing with gold plated copper contacts. Suitable for Serial ATA storage interconnect at 15V and 1.5A. Operating temperature range -35°C to 85°C for harsh environments.
Board-to-board connector system with solder termination. Compliance with Serial ATA and generational transfer speeds up to 1.5Gbps. Ideal for industrial, laboratory, manufacturing, and commercial electronic assemblies.
This PCB Socket is an essential component for reliable SATA storage hardware designs, enabling durable electrical connections with sustained performance over environmental and mechanical stress. Explore the full range of Molex connectors and industrial electronic components on EnvMart for your projects and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket supports a maximum operating voltage of 15V and a current rating of 1.5A.
The operating temperature range for this model is from -35°C to 85°C, making it suitable for various industrial environments.
This socket features 22 contacts arranged in a single row.
This model employs a solder termination type, ensuring robust mechanical and electrical performance.
The socket is constructed with a thermoplastic housing and features copper contacts that are gold plated for enhanced conductivity and corrosion resistance.
The pitch size of the contacts in this socket is 1.27 mm.
This model utilizes a board-to-board connector system with a female contact gender.
Yes, this socket is compliant with Serial ATA specifications and supports transfer speeds of up to 1.5Gbps.
This PCB socket has a right angle orientation for surface mounting on PCBs.
This socket is designed for industrial applications involving Serial ATA desktop and server storage interconnects.
The contact plating thickness is 0.76 μm of gold, which ensures corrosion resistance and signal integrity.
The country of origin for this PCB socket is China.
