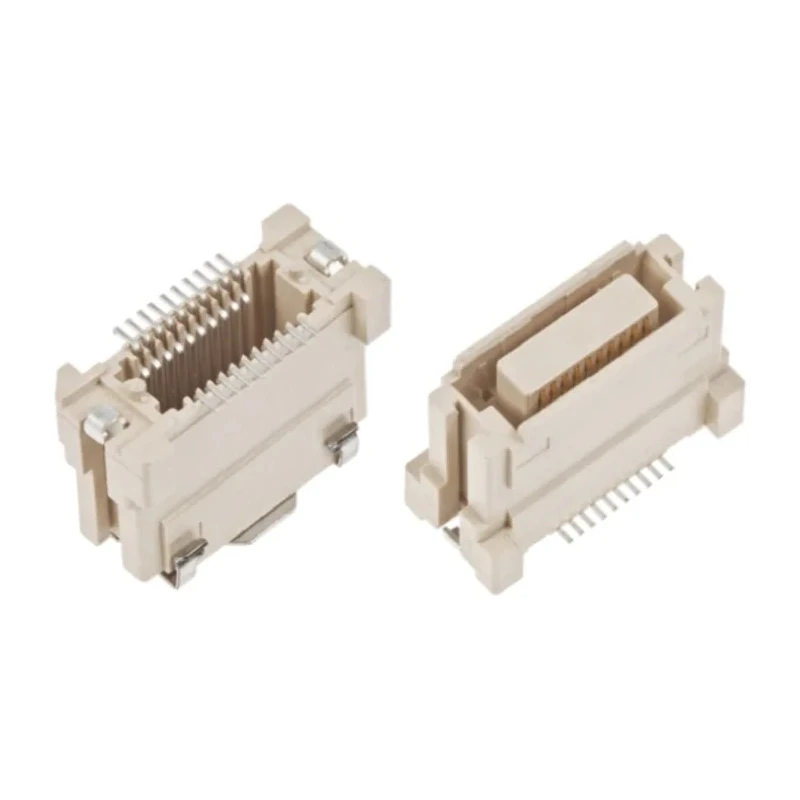

Molex SlimStack Series Straight Surface PCB Socket 40-Contact 2 Row 0.635 mm Pitch 52901-0474

Free Delivery in India | Lowest Global Shipping Charges

Molex SlimStack Series Straight Surface PCB Socket 40-Contact 2 Row 0.635 mm Pitch 52901-0474

Name: Molex SlimStack Series Straight Surface PCB Socket 40-Contact 2 Row 0.635 mm Pitch 52901-0474
Brand: Molex
SKU: 372724
Price: 5.29 USD
Availability: InStock



Category PCB Socket Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	100V
Brand	Molex
Orientation	Straight
Current	500mA
Mount Type	Surface
Housing Material	Thermoplastic
Contact Material	Copper
Series	SlimStack
Termination Type	Solder
Maximum Operating Temperature	105°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.635mm
Contact Plating	Gold
Number of Contacts	40
Contact Gender	Female
Connector System	Signal, Board-to-Board
Row Pitch	2.2mm

Key Features

This PCB socket features a straight surface mount design for easy PCB assembly.
Utilizes gold-plated copper contacts to ensure excellent conductivity and corrosion resistance.
Supports a voltage rating of 100 V and current rating of 500 mA for low-power electronic applications.
Constructed with thermoplastic housing material suitable for operating temperatures from -55°C to 105°C.
The connector system is designed for signal transmission in board-to-board connections.
Compact row pitch of 2.2 mm and female contact gender provide secure mating with corresponding connectors.
Termination is by soldering to ensure permanent and reliable attachment to PCBs.

Product Description

Molex 52901-0474 SlimStack Series Straight Surface PCB Socket is a 40-contact, 2-row surface mount board-to-board connector designed for compact and reliable electronic interconnections. It features a 0.635 mm pitch which supports high-density PCB designs commonly required in telecommunications, computing, and industrial control applications.

The socket has a thermoplastic housing that withstands operating temperatures from -55°C to 105°C, making it suitable for demanding environments. Gold-plated copper contacts provide excellent signal integrity and corrosion resistance, while the solder termination ensures firm attachment to circuit boards.

Designed for signal transmission, this connector supports a voltage of up to 100 V and a current rating of 500 mA. The slimstack design offers a minimal profile with a stack height of approximately 12 mm when mated with compatible plugs, making it ideal for space-saving applications in dense PCB layouts.

This PCB socket is widely used in industrial electronics, instrumentation, telecommunications, embedded systems, and other commercial electronic equipment. Its straight orientation and surface mount configuration facilitate straightforward assembly and maintenance.

This PCB socket offers a space-saving 0.635 mm pitch design. Gold-plated copper contacts ensure reliable electrical performance. Thermoplastic housing supports wide operating temperature ranges. Solder termination type provides secure PCB attachment.

Connectors are suitable for signal, board-to-board applications. Compact and durable for industrial and commercial electronics. Complies with no specific certifications but maintains high build quality standards. Explore the wide range of Molex PCB Sockets and connectors on EnvMart for reliable and efficient electronic component solutions.
