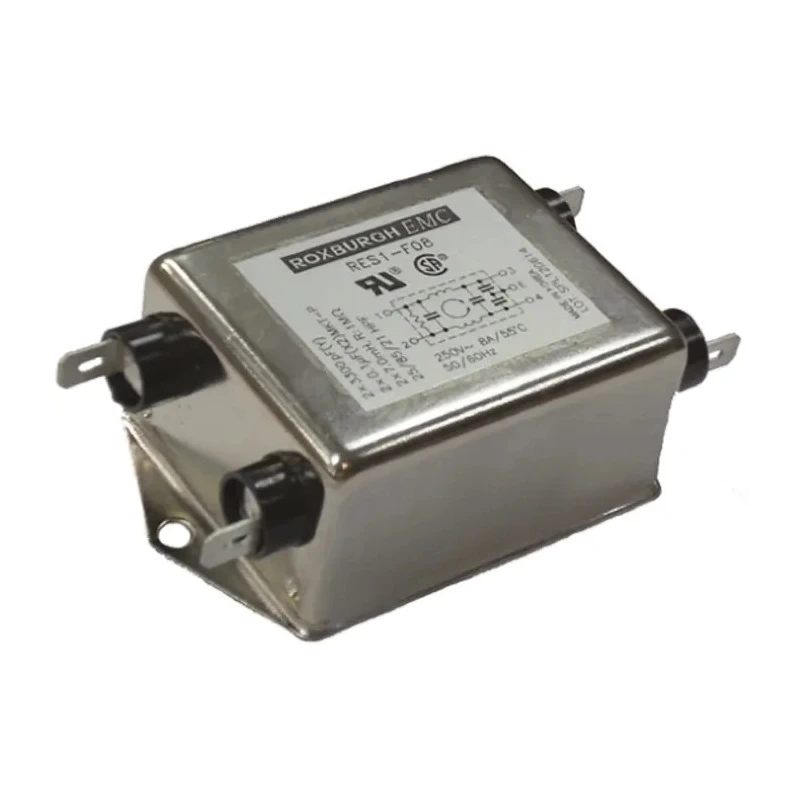

Roxburgh EMC Chassis Mount RFI Filter 15A 250V ac/dc 60Hz, 50Hz Single Phase RES1

Roxburgh EMC RES1 RES1F15 chassis mount RFI Filter is designed for reliable EMI suppression in single-phase AC/DC power line applications operating at 50 and 60 Hz frequencies. This compact, single-stage filter features a robust epoxy molded metal case that provides excellent protection and durability in industrial and portable equipment environments.

With a maximum current rating of 15A and a voltage rating of 250V AC/DC, it effectively reduces unwanted radio frequency interference on the power line while maintaining low leakage current of 500μA, beneficial for sensitive electronic devices.

The filter’s capacitance of 9.4nF enhances its filtering capabilities, ensuring significant differential mode noise attenuation. It is designed for easy chassis mounting using screw terminals and tab-type termination, enabling secure and stable installation in a variety of electrical and electronic systems.

Operating reliably over a temperature range from -25°C to 85°C, the RES1F15 is suitable for diverse industrial, manufacturing, laboratory, and commercial applications where EMI control is critical. It conforms to international safety standards EN 60950 and UL 1283, providing assured quality and compliance.

Compact single-stage EMI filter with chassis mount installation. Epoxy molded metal housing for durability and reliability. Supports 15A current and 250V AC/DC voltage operation. Capacitance of 9.4nF for effective EMI noise reduction.

Low leakage current of 500μA suitable for sensitive equipment. Wide operating temperature range from -25°C to 85°C. Termination via tab style with screw terminals for secure mounting. Compliant with EN 60950 and UL 1283 standards.

This Roxburgh EMC product is ideal for industrial machinery, manufacturing lines, electronic components, laboratory instruments, and commercial power line filtering needs. Explore the Power Line Filters category to find compatible products and solutions.
