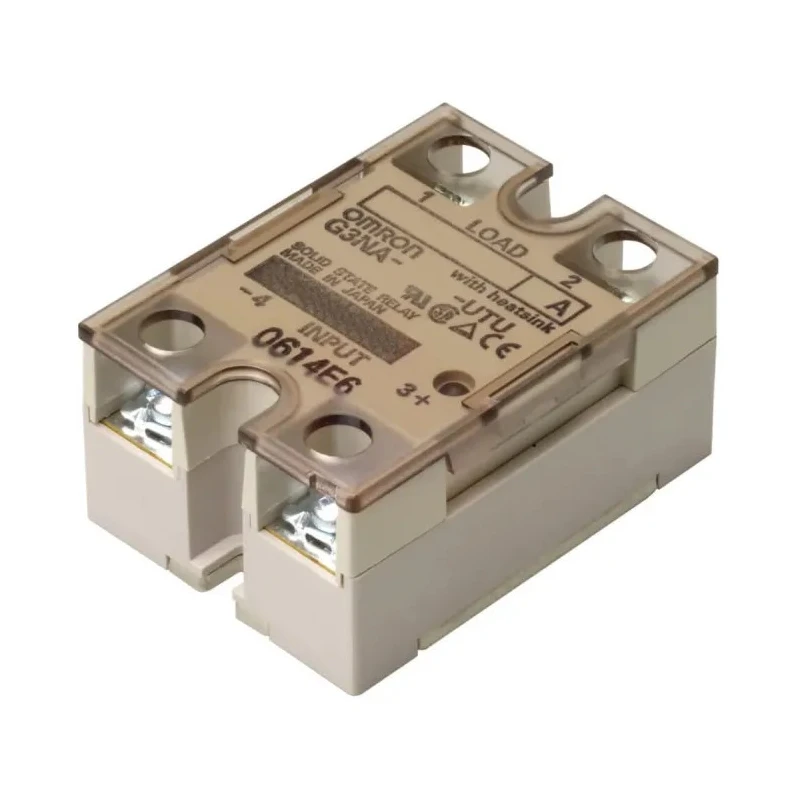

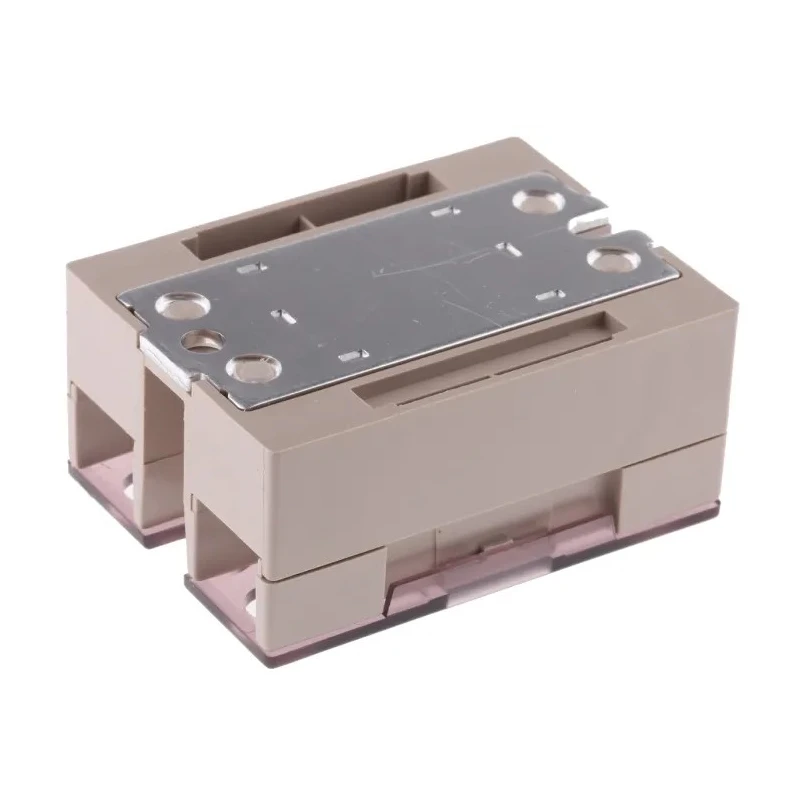

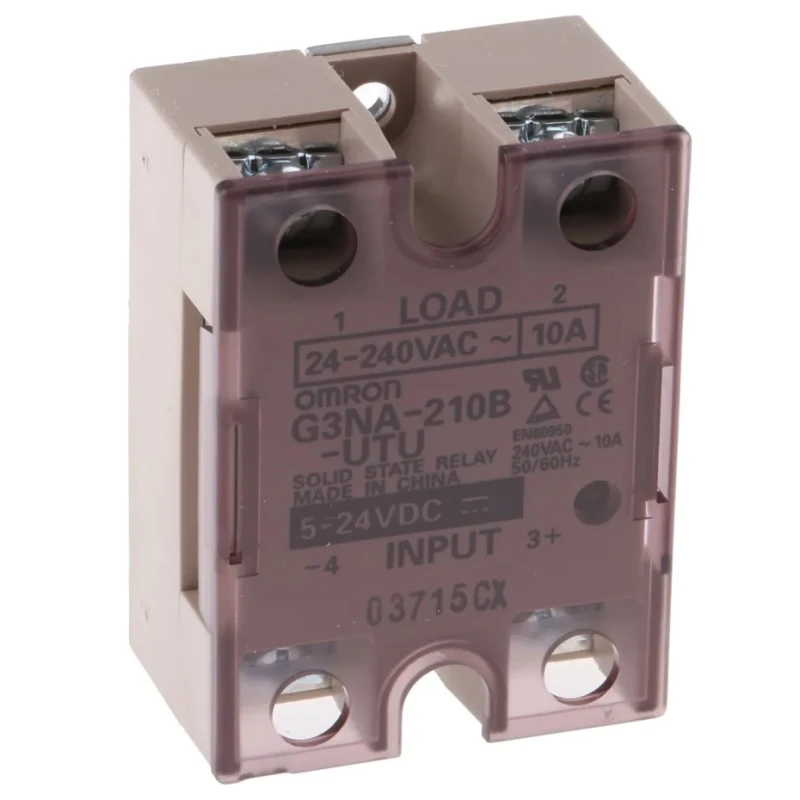

Omron Solid State Relay 10 A Load 240 V AC Load DIN Rail Mount G3NA
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 58mm |
| Length | 27mm |
| Model | G3NA |
| Mount Type | DIN Rail |
| Series | G3NA |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SP |
| Minimum Operating Temperature | -30°C |
| Terminal type | Screw |
| Maximum Load Current | 10A |
| Standards/Approvals | CE, CSA, UL |
| Maximum Load Voltage | 240V ac |
| Minimum Load Voltage | 24V ac |
| Off State Leakage Current | 10mA |
Key Features
- The relay features a screw terminal type for secure and convenient connections.
- It operates reliably within a temperature range of -30°C to 80°C.
- The zero-cross switching function minimizes electrical noise during operation.
- A red LED indicator allows easy visual monitoring of the relay status.
- It has a low off-state leakage current of 10 mA ensuring energy conservation.
- The component complies with CE, CSA, and UL standards for safety and quality assurance.
- Compact dimensions of 58 mm height and 27 mm length optimize space usage in control panels.
- The solid state relay is suitable for applications in waste treatment plants, medical equipment, and the automotive industry.
Product Description
Omron G3NA solid state relay model G3NA-210B-UTU DC5-24 is a DIN rail mount relay designed for industrial electrical switching with a maximum load current of 10 A and a maximum load voltage of 240 V AC. It operates efficiently with a minimum load voltage of 24 V AC and is engineered for high reliability in demanding environments.
This relay incorporates a zero-cross switching function that generates minimal electrical noise, making it suitable for sensitive electronic equipment. The robust screw terminal type allows for simple installation and maintenance.
The operating temperature range from -30°C to +80°C enables usage in diverse industrial and commercial settings including waste treatment plants, medical devices, and automotive applications. The relay’s off-state leakage current is minimal at 10 mA, contributing to energy efficiency.
Built-in protection includes a varistor to absorb transient power surges, and a protective terminal cover safeguards against dust and external contaminants. Its dielectric strength of 2500 V AC assures appropriate insulation and user safety against electrical shocks.
The compact form factor of 58 mm height and 27 mm length conserves panel space and simplifies integration into existing automation setups. Certified to CE, CSA, and UL standards, this product meets international safety and quality requirements.
The relay’s red LED indicator provides easy visual status monitoring. It is designed for reliable and long-term operation without mechanical wear points. Suitable for industrial automation systems requiring noiseless and durable electrical switching.
The Omron G3NA Solid State Relay combines advanced features suited for industrial, construction, automation, and HVAC applications. Explore more reliable relays and automation components in the EnvMart product catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current is 10 A.
It operates efficiently within a temperature range of -30°C to 80°C.
The maximum load voltage is 240 V AC.
It features a screw terminal type for secure and convenient connections.
Yes, it includes a red LED indicator for easy visual monitoring of the relay status.
The off-state leakage current is 10 mA, which helps in energy conservation.
It complies with CE, CSA, and UL standards for safety and quality assurance.
The relay has compact dimensions of 58 mm in height and 27 mm in length.
It is suitable for applications in waste treatment plants, medical equipment, and the automotive industry.
The minimum load voltage is 24 V AC.
This model is designed for DIN rail mounting.
It includes a varistor to absorb transient power surges and a protective terminal cover against dust and contaminants.
