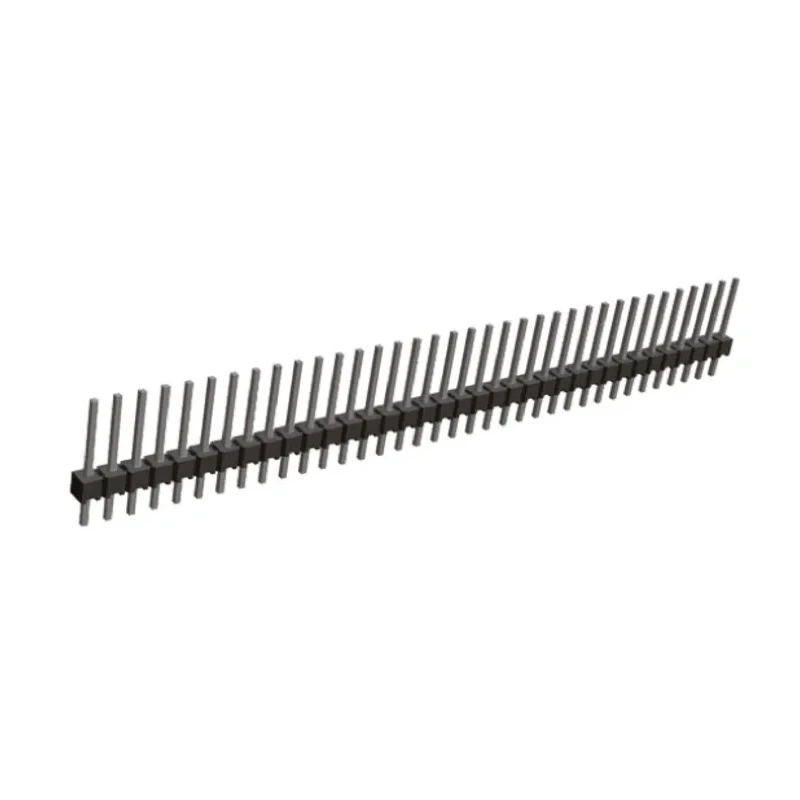

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 40 Contact, 2.54 mm Pitch, 1 Row 9-146285-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 2.29mm |
| Mating Pin Length | 5.84mm |
Key Features
- Designed for board-to-board and wire-to-board connector systems.
- Features unshrouded, straight orientation for efficient through-hole mounting.
- Constructed with liquid crystal polymer housing for durability.
- Phosphor bronze contacts plated with gold ensure excellent conductivity.
- Operates reliably between -65°C and 105°C temperature range.
- Suitable for automotive, industrial, telecommunications, and medical instrumentation applications.
- Pin headers are breakaway style allowing size customization.
- Supports up to 3A current and 750V voltage rating.
Product Description
TE Connectivity 9-146285-0 AMPMODU MOD II Series Straight Through Hole Pin Header is a high-quality electronic component designed for board-to-board and wire-to-board connector systems. It features a single row of 40 male contacts spaced at a 2.54 mm pitch. The housing material is liquid crystal polymer, which offers excellent mechanical strength and thermal stability. This part is unshrouded with a straight orientation and through-hole mount style, facilitating reliable solder termination on printed circuit boards.
The contacts are made from phosphor bronze and plated with gold plating to ensure superior conductivity and corrosion resistance. This pin header supports a maximum current rating of 3A and voltage rating of 750V, making it suitable for various industrial and commercial electronic assemblies. Operating temperatures range from -65°C to 105°C, supporting usage in challenging environments.
The AMPMODU Mod II pin headers are breakaway style, allowing users to customize the length to fit specific PCB layouts easily, thus enhancing installation flexibility and saving labor time. Typical applications include automotive controls, telecommunications equipment, industrial machinery, test equipment, medical instruments, and storage devices.
This product is part of the AMPMODU Interconnect system, a recognized standard in the automation and control industry, known for its compact design, reliability, and economy. The system comprises a range of connectors suited for industrial applications, facilitating seamless integration and durable connections.
Designed for flexible size customization with breakaway feature. Reliable gold plated phosphor bronze contacts for long-lasting performance. Liquid crystal polymer housing offers robust mechanical and thermal properties.
Suitable for a wide range of industrial, automotive, and medical applications. Supports through-hole solder mounting for secure connections. Operating temperature range of -65°C to 105°C supports harsh environmental conditions.
Compact 2.54 mm pitch and single row meeting standard PCB layouts. Rated for 3A current and 750V voltage for versatile use cases. Explore our extensive range of PCB Headers and connectors at EnvMart to find trusted components for your next project or production line.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current rating of 3A.
It has a voltage rating of 750V.
The contacts are spaced at a pitch of 2.54 mm.
The contacts are made from phosphor bronze and plated with gold, while the housing is constructed from liquid crystal polymer.
It operates reliably between -65°C and 105°C.
This model features 40 male contacts.
It supports through-hole mounting for secure connections.
This pin header is unshrouded, allowing for efficient through-hole mounting.
It is designed for board-to-board and wire-to-board connector systems.
The termination type is solder, allowing for reliable connections on printed circuit boards.
The tail pin length is 2.29 mm.
It is suitable for applications in automotive, industrial, telecommunications, and medical instrumentation.
