| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 0.43mm |
| Length | 0.85mm |
| Model | ESD9X5.0ST5G |
| Width | 0.65mm |
| Mount Type | Surface |
| Series | ESD9X |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-923 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 12.3V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6.2V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Peak Pulse Power Dissipation Pppm | 107W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 8.7A |
| Maximum Reverse Leakage Current | 1μA |

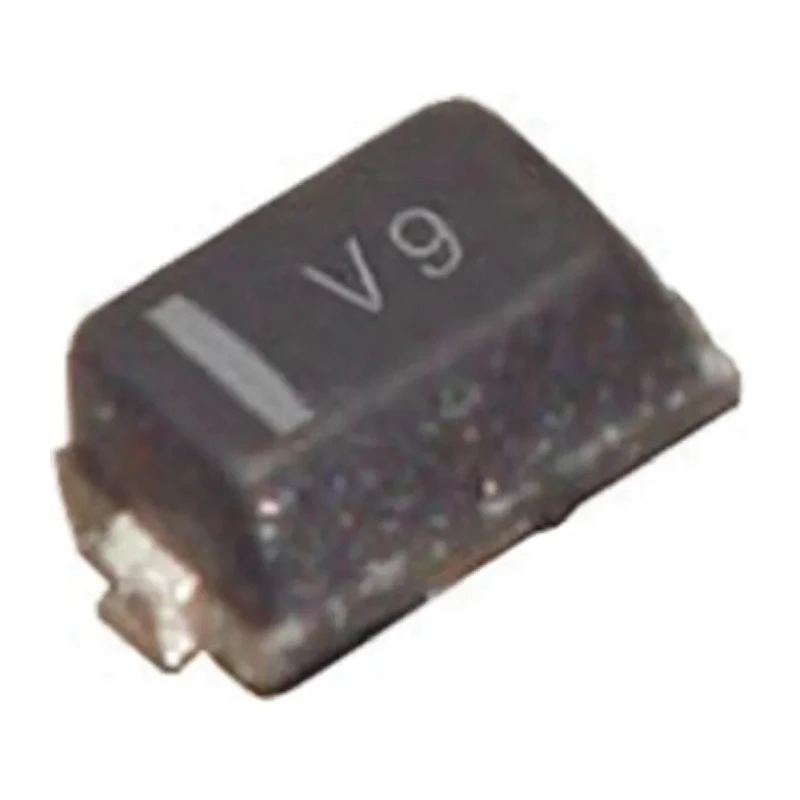

onsemi ESD9X5.0ST5G is a 1-element uni-directional Transient Voltage Suppressor (TVS) diode designed for use in protecting sensitive electronic circuits from transient voltage surges. It features a peak pulse power dissipation rating of 107 W and is housed in a compact 2-pin SOD-923 surface mount package.
This diode exhibits a minimum breakdown voltage of 6.2 V and a maximum reverse stand-off voltage of 5 V, making it suitable for low-voltage circuit protection applications. Its clamping voltage is rated at 12.3 V, which provides effective absorption of voltage spikes.
The device maintains reliable operation in extreme environmental conditions with an operating temperature range from -55°C to 150°C. With a low maximum reverse leakage current of 1 μA, the diode ensures minimal leakage and power wastage.
Compliant with the Automotive Standard AEC-Q101, this TVS diode meets stringent quality and reliability criteria required in automotive applications. Its small form factor with dimensions of 0.85 mm length, 0.65 mm width, and 0.43 mm height fits seamlessly into compact PCB layouts and supports advanced surface mount manufacturing.
Uni-directional TVS diode configuration provides targeted protection against voltage transients. 107 W peak pulse power rating for robust surge absorption. Low leakage current of 1 μA for efficient energy use. Wide operating temperature range of -55°C to 150°C for harsh environments.
Compact 2-pin SOD-923 surface mount package facilitates space-saving designs. Automotive-grade AEC-Q101 certification ensures high reliability standards. Dimensions of 0.85 x 0.65 x 0.43 mm support high-density PCB assembly.
This TVS Diode is ideal for various industrial, automotive, electronics manufacturing, and telecommunications applications requiring ESD and surge protection. It offers a compact, reliable, and high-performance solution to safeguard sensitive semiconductor devices and circuits from transient voltage damage.
