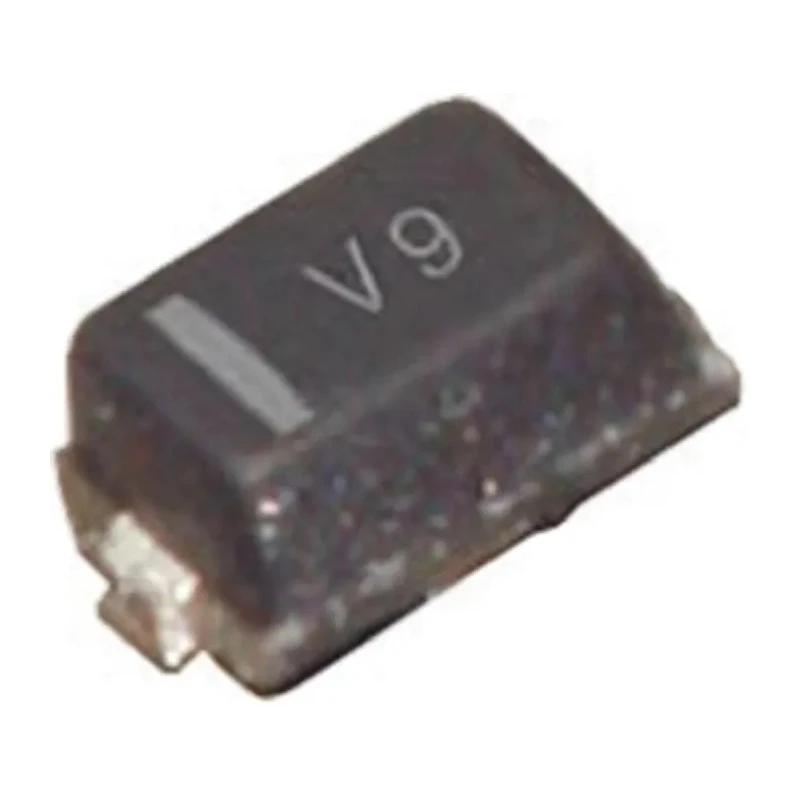

onsemi 1-Element Uni-Directional TVS Diode, 0.15 W Peak Pulse Power, 2-Pin SOD-923 Package ESD9R3.3ST5G
Specifications
| Country of Origin | China |
|---|---|
| Brand | onsemi |
| Height | 0.4mm |
| Length | 0.85mm |
| Model | ESD9R3.3ST5G |
| Width | 0.65mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | SOD-923 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 7.8V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 4.8V |
| Maximum Reverse Stand-off Voltage Vwm | 3.3V |
| Peak Pulse Power Dissipation Pppm | 0.15W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 1A |
| Maximum Reverse Leakage Current | 1nA |
Key Features
- This diode features a single diode configuration for uni-directional operation.
- It provides ESD protection with a peak pulse power dissipation of 0.15 W.
- The package type is compact SOD-923 with dimensions approximately 0.85 mm length, 0.65 mm width, and 0.4 mm height.
- Operating temperature range extends from -55°C to 125°C ensuring reliability in harsh environments.
- The diode has a minimum breakdown voltage (Vbr) of 4.8 V and a maximum reverse stand-off voltage (Vwm) of 3.3 V.
- Clamping voltage (Vc) is at 7.8 V, with a maximum peak pulse current (Ippm) rating of 1 A.
- Maximum reverse leakage current is very low at 1 nA contributing to energy efficiency.
- It complies with automotive industry standard AEC-Q101.
Product Description
onsemi ESD9R3.3ST5G is a high reliability 1-Element Uni-Directional Transient Voltage Suppressor (TVS) diode designed for protecting sensitive electronics from electrostatic discharge (ESD) events. This device supports a peak pulse power of 0.15 W and comes in a small footprint 2-Pin SOD-923 surface mount package allowing for compact PCB layouts.
Featuring a single diode configuration, it offers uni-directional voltage suppression making it suitable for protecting unidirectional signal lines and power rails in automotive, industrial, and consumer electronics applications. The diode’s min breakdown voltage of 4.8 V and max reverse stand-off voltage of 3.3 V ensure tight voltage clamping at 7.8 V, preventing damage to downstream components during transient surge events.
The product operates reliably over a wide temperature range from -55°C to 125°C, suitable for demanding industrial and automotive environments. Its very low reverse leakage current of only 1 nA makes it energy-efficient, minimizing impact on normal circuit operation.
This diode meets the AEC-Q101 automotive qualification standard, verifying its robustness and suitability for automotive system integration. The device is designed expressly for surface mount assembly, allowing for automated and scalable manufacturing processes.
With a compact body size approximately 0.85 mm by 0.65 mm by 0.4 mm, it helps save board space and weight, critical for modern electronic design. Single diode configuration designed for uni-directional transient voltage suppression.
Peak pulse power dissipation rating of 0.15 W ensures protection against ESD events. Compact 2-Pin SOD-923 surface mount package for space-saving PCB layouts. Wide operating temperature range from -55°C to 125°C ensures reliability under harsh conditions.
Low reverse leakage current of 1 nA increases energy efficiency. Compliant with automotive standard AEC-Q101 for stringent quality and reliability. Protects sensitive electronics in automotive, industrial, and consumer segments.
Manufactured in China with high quality semiconductor production standards.
Ideal for engineers and designers needing reliable electrostatic discharge protection in compact electronic assemblies. Browse EnvMart for more semiconductor and electronic component solutions from onsemi and other leading brands.
Explore more products in our TVS Diode category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of this diode is 0.15 W.
The maximum reverse stand-off voltage (Vwm) for this model is 3.3 V.
The clamping voltage (Vc) of this diode is 7.8 V.
The dimensions of the SOD-923 package are approximately 0.85 mm in length, 0.65 mm in width, and 0.4 mm in height.
The minimum breakdown voltage (Vbr) is 4.8 V.
This diode operates over a temperature range from -55°C to 125°C.
The maximum peak pulse current (Ippm) rating is 1 A.
The maximum reverse leakage current is 1 nA.
Yes, this diode complies with the AEC-Q101 automotive standard.
This diode has a single element configuration.
This model supports surface mounting.
This diode is manufactured in China.
