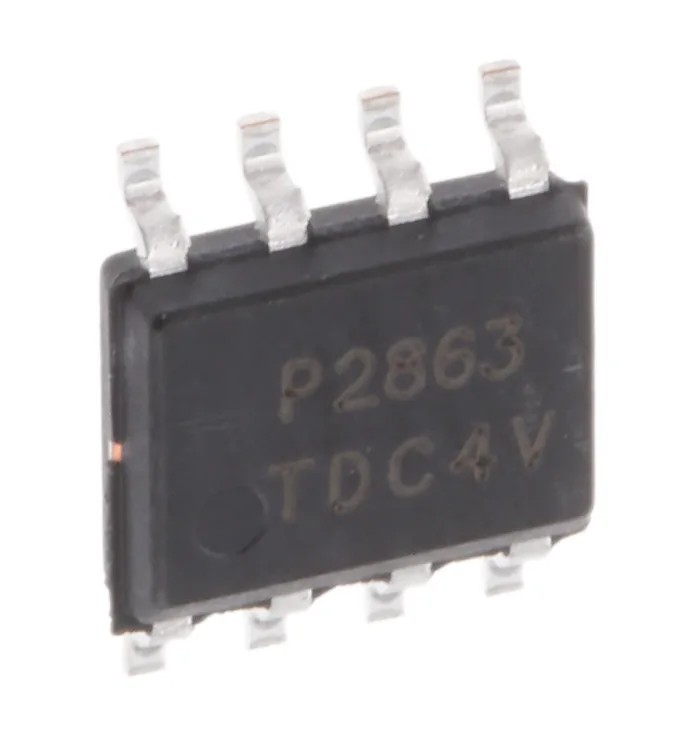

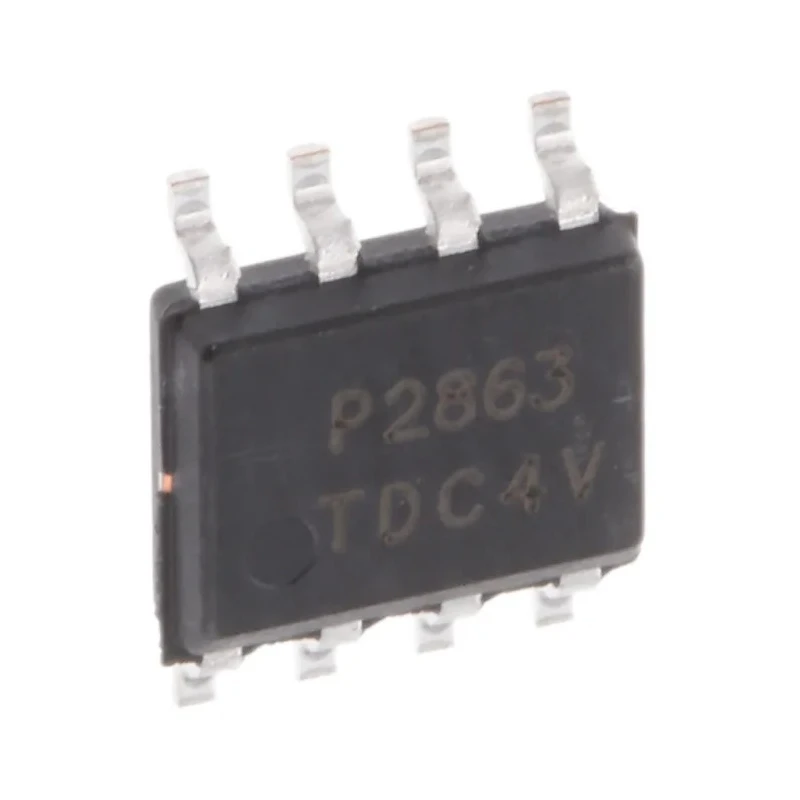

DiodesZetex LED Driver IC , 8-Pin SOP, 40V DC Input Voltage, 4.5V Minimum Output Voltage, 2A Output Current, 30W PAM2863ECR
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1.75mm |
| Length | 5mm |
| Model | PAM2863ECR |
| Width | 4mm |
| Mount Type | Through Hole |
| Series | PAM2863 |
| Output Current | 2A |
| Maximum Operating Temperature | 125°C |
| Package Type | SOP |
| Minimum Operating Temperature | -40°C |
| Maximum Output Power | 30W |
| Input Voltage | 40, 4.5V dc |
| Maximum Output Voltage | 40V dc |
| Number of Pins | 8 |
| Minimum Output Voltage | 4.5V |
| Dimming Operation | PWM |
| DiodesZetex PAM2808BLBR LED Driver IC, 2.5V dc, 6 V dc 1.5 A 8-Pin SOPBrand | DiodesZetex |
Key Features
- Designed for medium voltage DC-DC LED driving applications.
- Supports PWM dimming operation for precise brightness control.
- Maximum output power rating of 30W ensures robust performance.
- Compact 8-Pin SOP package suitable for through hole mounting.
- Operates reliably between -40°C and 125°C temperature range.
- Package dimensions are 5mm length, 4mm width, and 1.75mm height.
- Minimum output voltage of 4.5V supports stable LED operation.
- Manufactured in China with high quality and reliability standards.
Product Description
DiodesZetex PAM2863ECR is a specialized LED Driver IC designed for efficient power delivery in LED lighting applications. Featuring an 8-Pin SOP package, this device supports a maximum output voltage of 40V DC and a minimum output voltage of 4.5V, making it suitable for medium voltage DC-DC LED drivers.
The IC operates with a maximum output current of 2A and a power rating of 30W, enabling robust LED illumination control. It employs PWM dimming operation to provide precise brightness adjustment, ideal for dynamic lighting systems.
Its through hole mount type ensures ease of installation in various electronic components and devices. The compact dimensions of 5mm length, 4mm width, and 1.75mm height allow integration into space-constrained designs.
Operating temperature ranges from -40°C to 125°C ensure reliable performance even in harsh industrial or commercial environments. Although it does not hold specific standards or automotive certifications, it meets general LED driver requirements.
This LED driver IC is manufactured in China and is part of the respected PAM2863 series by Diodes Inc. Typical uses include industrial electronics, LED lighting solutions, manufacturing controls, and power management circuits.
Designed for medium voltage DC-DC LED drivers. Supports PWM dimming for enhanced lighting control. Robust 30W power capacity and 2A output current. Compact 8-Pin SOP package, through hole mount type. Wide operating temperature range from -40°C to 125°C.
Suitable for industrial, manufacturing, and commercial LED applications. Manufactured to high-quality standards in China. Explore more LED Driver ICs and related electronic components on EnvMart for your industrial and commercial lighting projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power rating of this model is 30W, ensuring robust performance in LED lighting applications.
It supports an input voltage of up to 40V DC and a minimum output voltage of 4.5V.
This LED driver IC can deliver an output current of up to 2A.
The package dimensions are 5mm in length, 4mm in width, and 1.75mm in height.
It operates reliably within a temperature range of -40°C to 125°C.
This model features a through hole mount type, facilitating easy installation in various electronic devices.
Yes, it supports PWM dimming operation for precise brightness control in LED applications.
It is part of the PAM2863 series of LED driver ICs by DiodesZetex.
The 8-Pin SOP package allows for compact integration into space-constrained designs while supporting through hole mounting.
This LED driver IC is suitable for industrial electronics, LED lighting solutions, manufacturing controls, and power management circuits.
It is manufactured in China, adhering to high quality and reliability standards.
The minimum output voltage supported by this model is 4.5V, which helps ensure stable LED operation.
