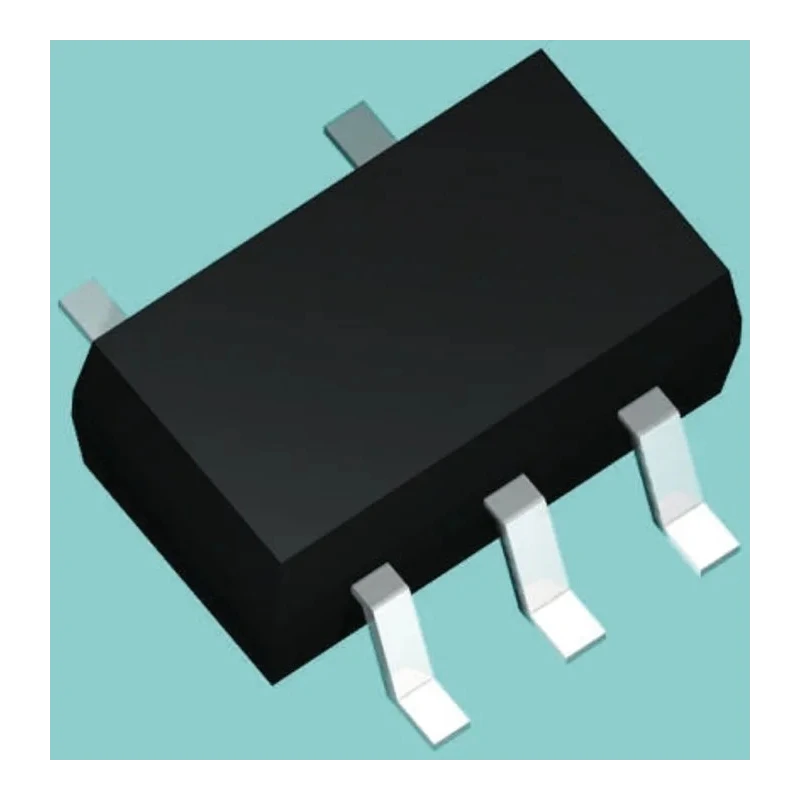

DiodesZetex LED Driver IC 2.5V dc, 6 V dc, 1.5 A Output, 5-Pin TSOT-25 PAM2804AAB010
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1mm |
| Length | 2.9mm |
| Model | PAM2804AAB010 |
| Width | 1.6mm |
| Mount Type | Through Hole |
| Series | PAM2804 |
| Output Current | 1.5A |
| Maximum Operating Temperature | 85°C |
| Package Type | TSOT-25 |
| Minimum Operating Temperature | -40°C |
| Maximum Output Power | 400mW |
| Input Voltage | 2.5, 6V dc |
| Maximum Output Voltage | 6.5V |
| Number of Pins | 5 |
| Minimum Output Voltage | -0.3V |
| Dimming Operation | PWM |
| DiodesZetex AL8808WT-7 LED Driver IC 1.25A 5-Pin TSOT-25Brand | DiodesZetex |
Key Features
- Supports PWM dimming operation for precise LED brightness control.
- Maximum output power rating of 400mW suitable for low voltage LED applications.
- Compact through-hole mount type with dimensions 2.9mm length, 1.6mm width, and 1mm height.
- Operates reliably within temperature range of -40°C to 85°C.
- Maximum output voltage up to 6.5V and minimum output voltage down to -0.3V.
- Manufactured in China with series code PAM2804.
Product Description
DiodesZetex PAM2804AAB010 is a high-performance LED Driver IC designed to deliver efficient and stable current supply for LED lighting applications. It supports low voltage input from 2.5V dc up to 6V dc and provides an output current of 1.5A with PWM dimming capability, ensuring precise control over LED brightness.
The device comes in a compact 5-pin TSOT-25 through-hole package with a length of 2.9mm, width of 1.6mm, and height of 1mm, making it suitable for space-constrained PCB designs. It operates reliably over a wide temperature range from -40°C to 85°C, making it ideal for various industrial and commercial electronic and lighting systems.
This LED driver IC is capable of delivering a maximum output power of 400mW with output voltage ranging between -0.3V minimum and 6.5V maximum. The product does not hold specific standards or approvals but is part of the PAM2804 series, manufactured in China to ensure quality in discrete semiconductor solutions for LED applications.
Key features include PWM dimming for efficient light control, through-hole mounting to fit standard assembly lines, and robust operational temperature tolerance. Its compact form factor and reliable performance make it well-suited for applications in industrial electronics, LED lighting panels, displays, and other optoelectronic components requiring precise current regulation.
Supports PWM dimming operation for precise LED brightness control. Maximum output power rating of 400mW suitable for low voltage LED applications. Compact through-hole mount type with 5-pin TSOT-25 package. Operates within temperature range of -40°C to 85°C for versatile applications.
Input voltage range from 2.5V to 6V dc suits various LED configurations. Manufactured in China with high-quality semiconductor process.
Explore more LED Driver ICs and semiconductor components in the Electronics Components category at EnvMart for comprehensive solutions tailored to your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 2.5V dc to 6V dc, making it suitable for various LED configurations.
This LED driver IC provides a maximum output current of 1.5A, allowing for efficient LED operation.
The TSOT-25 package has dimensions of 2.9mm in length, 1.6mm in width, and 1mm in height.
The maximum output power rating for this model is 400mW, which is suitable for low voltage LED applications.
It operates reliably within a temperature range of -40°C to 85°C, making it versatile for various applications.
Yes, this model supports PWM dimming operation for precise control over LED brightness.
The maximum output voltage of this LED driver IC is 6.5V, with a minimum output voltage down to -0.3V.
This LED driver IC features a 5-pin configuration, suitable for through-hole mounting.
It uses a through-hole mounting type, which is compatible with standard assembly lines.
This product is manufactured in China, ensuring quality in discrete semiconductor solutions for LED applications.
This model is part of the PAM2804 series, which includes various LED driver ICs.
It is suitable for applications in industrial electronics, LED lighting panels, displays, and other optoelectronic components requiring precise current regulation.
