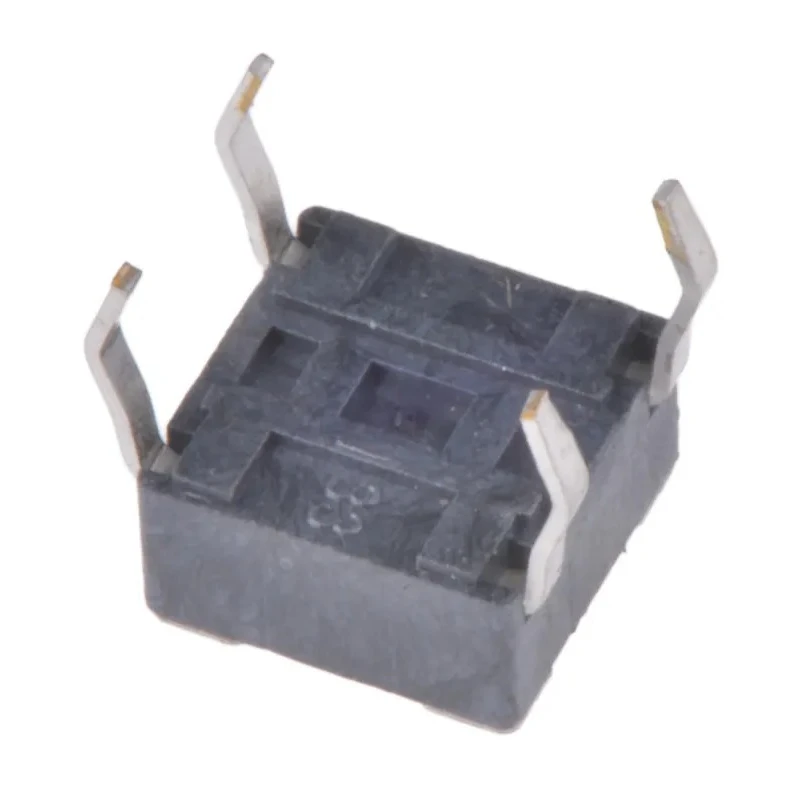

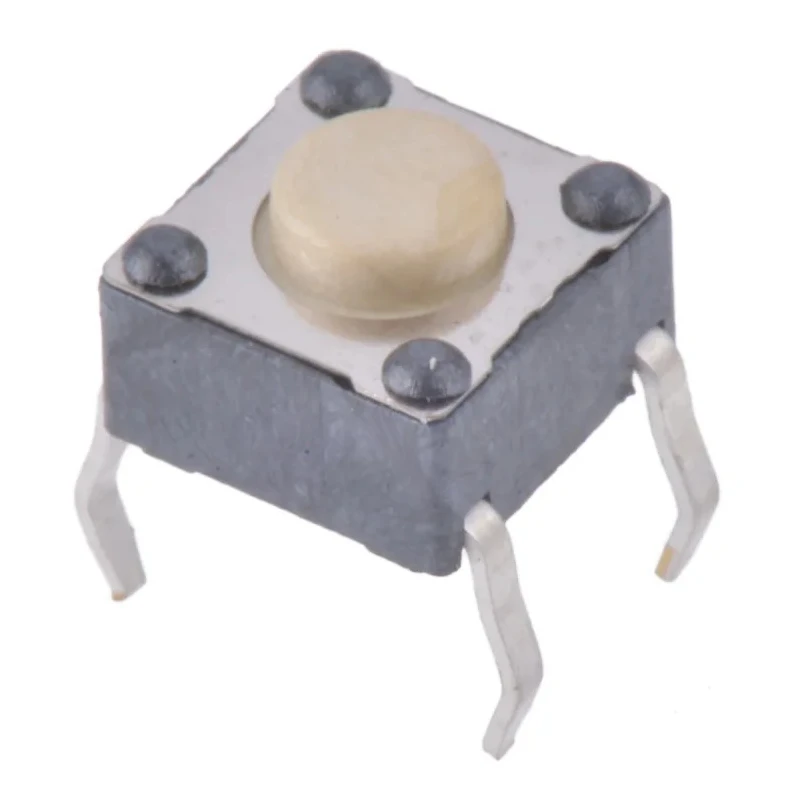

Wurth Elektronik White Tactile Switch 0.9 mm SPST 50mA 12 V dc Through Hole 430156043726

Wurth Elektronik 430156043726 White Tactile Switch is a high-quality, momentary action tactile switch featuring a 0.9 mm actuator travel and a single pole single throw (SPST) contact configuration. Designed for through-hole mounting, it provides reliable electrical switching for low current circuits rated at 50mA and 12 V dc.

The switch features a white actuator that offers tactile feedback with a straight orientation, enhancing user experience in keyboard and keypad applications or other electronic control panels.

Its compact size with dimensions of 6.5 mm length, 6.2 mm width, and 4.3 mm height makes it suitable for space-constrained PCB layouts. The operating force of 2.55N ensures precise actuation, and the component is rated for 200,000 mechanical cycles, highlighting its durability for industrial and commercial electronic equipment.

Constructed with stainless steel contacts having silver cladding and silver-plated through-hole brass terminals, the switch supports high-quality soldering processes including wave soldering at 260°C for up to 10 seconds. It operates reliably within a wide temperature range of -40°C to 85°C, making it appropriate for varied environmental conditions.

Compliance with RoHS standards confirms the product meets environmental safety requirements, making it an excellent choice for modern electronic design projects requiring tactile switching capabilities.

The switch offers momentary operation with a single pole single throw contact configuration. Compact dimensions include 6.5 mm length, 6.2 mm width, and 4.3 mm height with a 0.9 mm actuator travel. Operating force is 2.55N with a mechanical life of 200,000 cycles for extended reliability.

Constructed with stainless steel contacts and silver-plated brass terminals for durable solder connections. Suitable for through-hole mounting with wave soldering compatibility up to 260°C for 10 seconds. Designed to operate between temperatures -40°C and 85°C, compliant with RoHS environmental standards.

This Tactile Switch is ideal for applications in industrial automation, consumer electronics, electrical controls, and other sectors requiring robust, responsive tactile input devices. Browse EnvMart’s full range of high-performance switches and electronic components to find your ideal solution.
