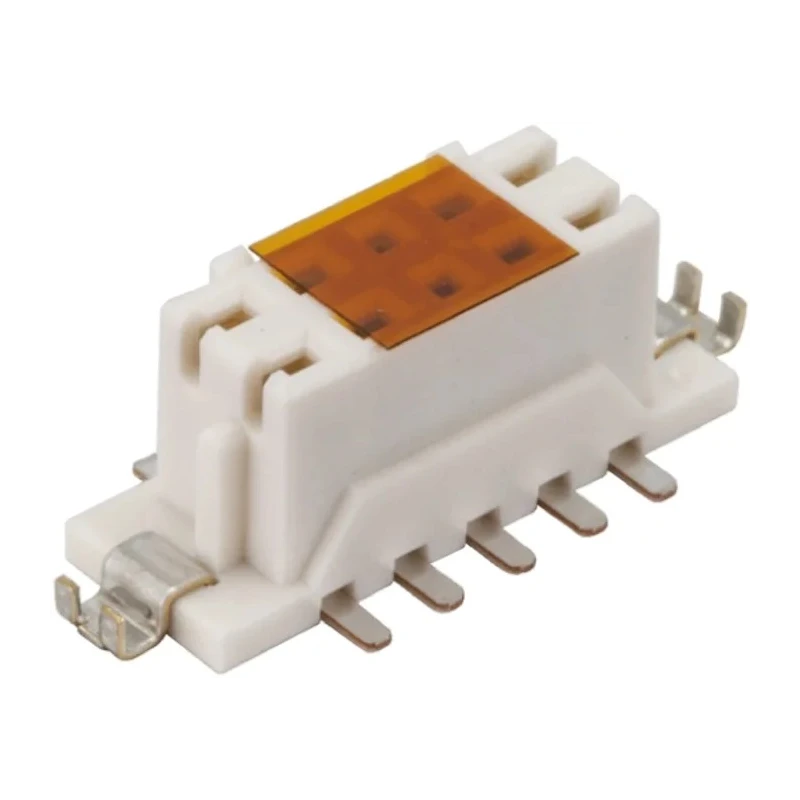

Hirose DF11 Series Straight Surface PCB Socket, 24-Contact, 2 Row, 2 mm Pitch, 12A Current

The Hirose DF11CZ-24DS-2V(52) is a high-quality straight surface mount PCB socket connector from the DF11 series, featuring a compact double row design with 24 contacts at a 2 mm pitch. This socket is engineered for efficient use of PCB space, providing the same footprint as a single row connection but with double the contact count, making it ideal for dense board layouts.

Its robust polyamide housing incorporates guide ribs to prevent incorrect insertion and twisting during mating, ensuring reliable connections. The copper contacts are plated with gold and tin which enhances conductivity and corrosion resistance. Metal fittings on the SMT variants improve mechanical retention and prevent solder peeling, contributing to long-term durability.

This 12A rated connector supports a maximum voltage of 30V, operating effectively in temperature ranges from -30°C to 85°C, suitable for demanding industrial and consumer electronic applications.

Applications include portable electronic devices requiring multiple signal connections with a compact footprint, such as digital cameras, LCD displays, car navigation systems, digital video recorders, access control units, and precision measurement instruments.

The Hirose DF11 series socket mates precisely with DF11 series PCB headers enabling secure wire-to-board and board-to-board connection solutions. Compact double row socket design with less than 5 mm depth maximizes PCB layout efficiency.

Guide ribs and metal fittings enhance mating reliability and mechanical stability. Gold and tin plating on copper contacts ensures excellent electrical performance. Wide operating temperature range from -30°C to +85°C for diverse environmental suitability.

Supports cable-to-board and board-to-board connector systems in advanced electronics.

This component is manufactured in Indonesia under stringent quality controls, offering a reliable interconnection solution well-suited for industrial, laboratory, and commercial electronics assembly environments.
