Hirose A3 Series Straight Surface PCB Socket 14-Contact 2 Row 2 mm Pitch Solder A3-14DA-2SV(71)

Free Delivery in India | Lowest Global Shipping Charges

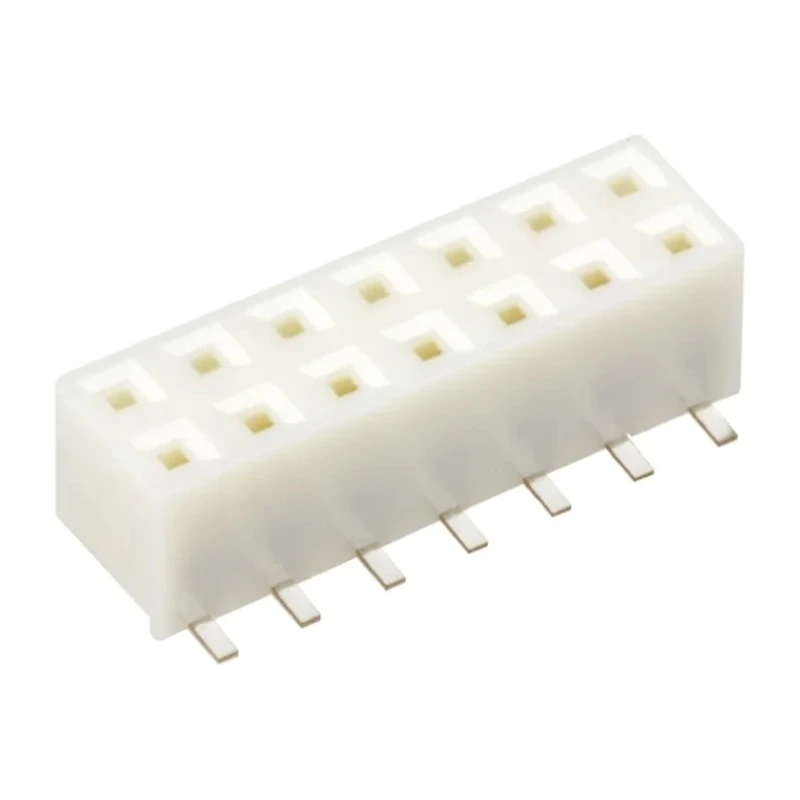

Hirose A3 Series Straight Surface PCB Socket 14-Contact 2 Row 2 mm Pitch Solder A3-14DA-2SV(71)

Name: Hirose A3 Series Straight Surface PCB Socket 14-Contact 2 Row 2 mm Pitch Solder A3-14DA-2SV(71)
Brand: Hirose
SKU: 369115
Price: 1.45 USD
Availability: InStock



Category PCB Socket Brand Hirose Condition New

Specifications

Country of Origin	Japan
Voltage	200V
Brand	Hirose
Orientation	Straight
Current	12A
Model	A3-14DA-2SV(71)
Mount Type	Surface
Housing Material	Polybutylene Terephthalate
Contact Material	Bronze
Series	A3
Termination Type	Solder
Maximum Operating Temperature	85°C
Sub Type	Wire-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2mm
Contact Plating	Gold
Number of Contacts	14
Contact Gender	Female
Stacking Height	6mm

Key Features

The socket features a straight orientation with a stacking height of 6 mm.
Constructed using durable polybutylene terephthalate housing material for high reliability.
Contacts are female, made of bronze, and plated with gold for superior conductivity and corrosion resistance.
Compatible with operating voltages up to 200V and current rating of 12A.
Suitable for operating temperature range from -55°C to 85°C.
Ideal for applications such as vehicle telephones, electronic equipment, and test rigs.
The connector is a miniature SMT receptacle in the Hirose A3 Series, known for high density and lightweight design.
Termination is via soldering to ensure firm and long-lasting connections.

Product Description

Hirose A3-14DA-2SV(71) is a straight surface PCB socket connector from the A3 Series. This connector features 14 female contacts arranged in 2 rows with a 2 mm pitch, designed specifically for wire-to-board applications requiring compact and reliable connections. It supports a current rating of 12A and can handle voltages up to 200V.

The housing is made from robust polybutylene terephthalate material ensuring durability and resistance under industrial conditions. The contacts are fabricated from bronze and plated with gold, providing excellent conductivity and corrosion resistance, making it suitable for demanding electronic applications. Its stacking height is 6 mm, allowing flexible integration into various PCB layouts.

This connector operates reliably in a wide temperature range from -55°C to 85°C, supporting harsh environment applications such as vehicle telephony systems, electronic test rigs, and communication devices. The termination method is solder, promoting secure and stable connections on PCBs.

The miniature SMT receptacle design of the Hirose A3 Series allows for lightweight, compact, and high-density PCB connections, enabling efficient use of PCB space in advanced electronic and communication devices.

The socket has a straight orientation with 14 contacts and 2 rows. Housing material is polybutylene terephthalate for enhanced durability. Contact material is bronze with gold plating for superior conductivity. Rated current is 12A and voltage up to 200V ensuring reliability.

Suitable for operating temperatures from -55°C to 85°C. Designed for wire-to-board connections using solder termination. Manufactured in Japan with standard compliance (UL94V-0).

This connector is an excellent choice for industrial, communication, automotive, and electronic equipment applications requiring miniature, high-density PCB Sockets with reliable performance. Explore more Hirose connectors and related industrial electrical components on EnvMart.
