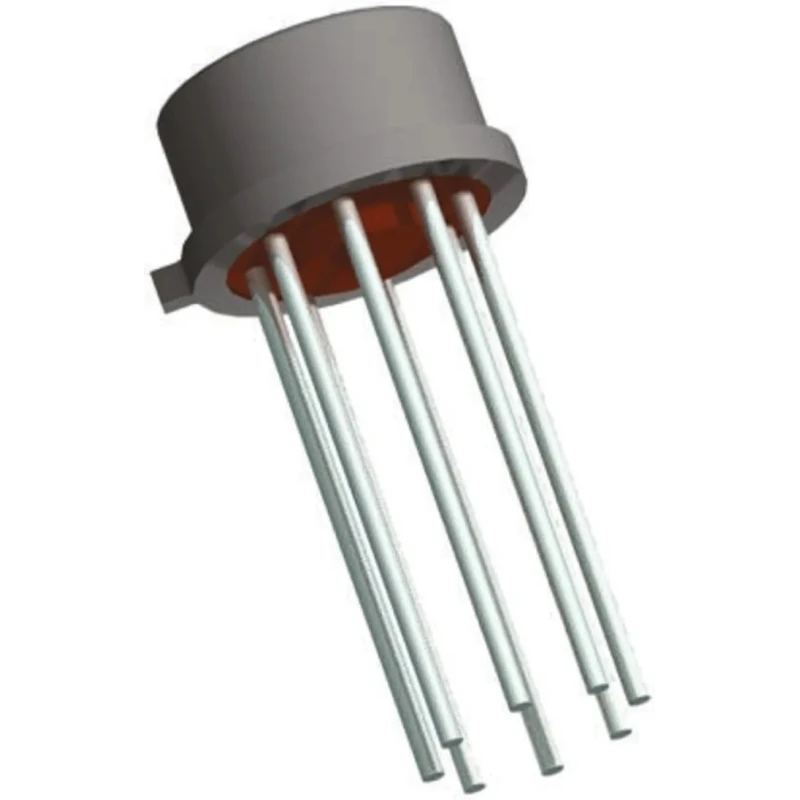

Texas Instruments Operational Amplifier 1.5 MHz Gain Bandwidth, 8-Pin Through Hole TO-99 LM741H/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.7mm |
| Model | LM741H/NOPB |
| Width | 9.4mm |
| Mount Type | Through Hole |
| Series | LM741-MIL |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-99 |
| Minimum Operating Temperature | -55°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS, REACH |
| Pin Count | 8 |
| Maximum Supply Voltage | 22V |
| Minimum Supply Voltage | 10V |
| GBP - Gain Bandwidth Product | 1.5MHz |
| Input Bias Current | 1.5 μA |
| Vos - Input Offset Voltage | 6 mV |
| Slew Rate | 0.5V/μs |
| Input Offset Current | 500 nA |
Key Features
- This operational amplifier supports a maximum supply voltage of 22 V and a minimum of 10 V.
- It features an input offset voltage of 6 mV and a low input bias current of 1.5 μA.
- The device operates within a temperature range of -55°C to 125°C for industrial applications.
- The slew rate measures 0.5 V/μs ensuring moderate response speed.
- The package dimensions include width of 9.4 mm and height of 4.7 mm suitable for various PCB designs.
- Designed for general purpose applications, it delivers reliable performance complying with RoHS and REACH standards.
- It belongs to the LM741-MIL series and is not automotive standard certified.
- The amplifier is well-suited for electronic, laboratory, and industrial circuits requiring precise analog signal control.
Product Description
Texas Instruments LM741H/NOPB is a general purpose operational amplifier providing a gain bandwidth of 1.5 MHz in an 8-pin TO-99 through hole package. This device supports supply voltages from 10 V to 22 V, making it suitable for various industrial, laboratory, and electronic instrumentation applications.
The input offset voltage is specified at a maximum of 6 mV and features a low input bias current of 1.5 μA. Operating temperature ranges from -55°C to 125°C, enabling use in harsh environments. The slew rate of 0.5 V/μs allows for stable and moderate speed analog signal amplification.
Its compact dimensions - 9.4 mm width and 4.7 mm height - facilitate integration into circuit boards requiring through hole mounting. Compliance with RoHS and REACH standards ensures environmental safety and regulatory adherence.
The LM741-MIL series is designed for cost-effective performance in non-specialized operational amplifier applications. Although this model is not certified for automotive standards, it is ideal for electronic component assemblies in industrial, manufacturing, and laboratory settings.
This operational amplifier supports a maximum supply voltage of 22 V and a minimum of 10 V. Input offset voltage is 6 mV with input bias current at 1.5 μA ensuring precision. Operating temperature ranges from -55°C to 125°C for robust industrial use.
Slew rate is 0.5 V/μs, balancing speed and stability. Package is 8-pin TO-99 through hole style with dimensions 9.4 mm wide and 4.7 mm tall. RoHS and REACH compliant, suitable for environmentally regulated environments. LM741-MIL series operational amplifier for general purpose electronic circuits.
Ideal for use in industrial, laboratory, and manufacturing applications. Explore the complete range of Operational Amplifiers and Amplifiers at EnvMart for advanced electronics design and manufacturing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1.5 MHz.
This model supports a supply voltage range from 10 V to 22 V.
The package dimensions are 9.4 mm in width and 4.7 mm in height.
The input offset voltage is specified at a maximum of 6 mV.
It operates within a temperature range of -55°C to 125°C.
The slew rate of this operational amplifier is 0.5 V/μs.
The input bias current is 1.5 μA.
This model has a single channel.
It complies with RoHS and REACH standards.
It features a through hole mounting type.
It belongs to the LM741-MIL series.
No, this model is not certified for automotive standards.
