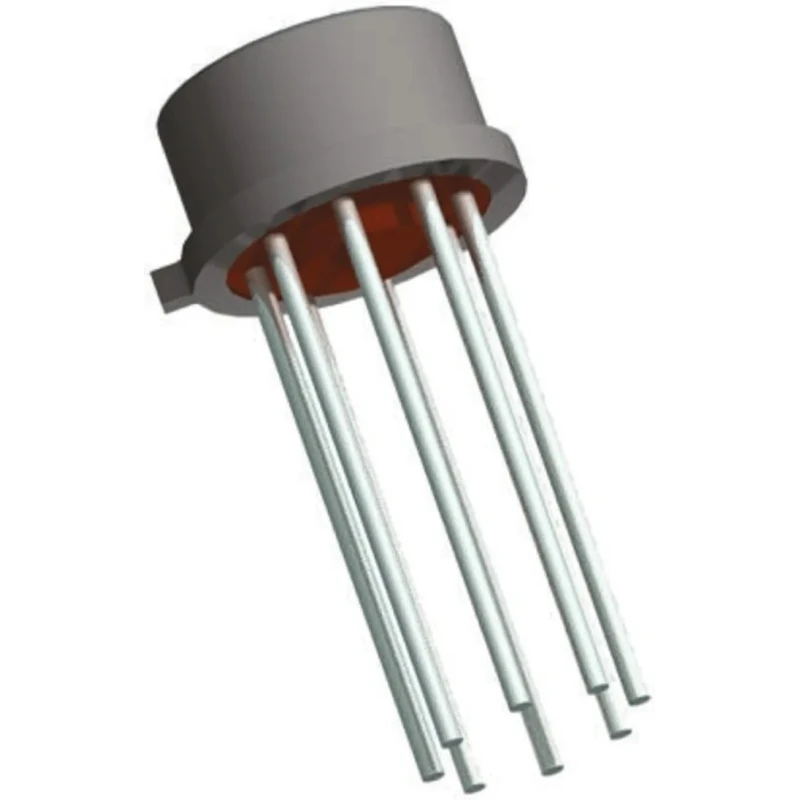

Texas Instruments Operational Amplifier Through Hole, 1 Channel, 8-Pin TO-99 Package, 1.5 MHz Gain Bandwidth LM741H/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.7mm |
| Model | LM741H/NOPB |
| Width | 9.4mm |
| Mount Type | Through Hole |
| Series | LM741-MIL |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-99 |
| Minimum Operating Temperature | -55°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS, REACH |
| Pin Count | 8 |
| Maximum Supply Voltage | 22V |
| Minimum Supply Voltage | 10V |
| GBP - Gain Bandwidth Product | 1.5MHz |
| Input Bias Current | 1.5 μA |
| Vos - Input Offset Voltage | 6 mV |
| Slew Rate | 0.5V/μs |
| Input Offset Current | 500 nA |
Key Features
- Designed for general-purpose amplification applications.
- Operates with supply voltages from 10V to 22V.
- Features low input offset voltage of 6 mV and low input bias current of 1.5 μA.
- Wide operating temperature range from -55°C to 125°C.
- Compact 9.4 mm width and 4.7 mm height TO-99 metal can package.
- Slew rate of 0.5 V/μs for accurate signal amplification.
- RoHS and REACH compliant ensuring environmental standards.
- Single channel operational amplifier ideal for industrial and laboratory use.
Product Description
Texas Instruments LM741H/NOPB operational amplifier is a through hole, 8-pin TO-99 package device featuring a 1.5 MHz gain bandwidth product supporting supply voltages up to 22V. It comes in a robust metal can suitable for varied industrial and laboratory applications where reliable, general-purpose amplification is required.
This operational amplifier offers a low input offset voltage of 6 mV and an input bias current of only 1.5 μA, which contributes to precise signal processing. The device supports a wide operating temperature range from -55°C to 125°C, making it suitable for challenging environments.
The slew rate of 0.5 V/μs ensures faithful reproduction of rapidly changing signals. The TO-99 package dimensions of 9.4 mm width and 4.7 mm height provide an ideal footprint for through-hole mounting in PCB assemblies.
Compliant with RoHS and REACH directives, this amplifier meets environmental regulations, making it an excellent choice for responsible product designs. The LM741H/NOPB from the LM741-MIL series is a versatile, single-channel amplifier used widely across industrial electronics, instrumentation, measurement systems, and laboratory setups.
Designed for general-purpose amplification applications. Operates with supply voltages from 10V to 22V. Features low input offset voltage of 6 mV and low input bias current of 1.5 μA. Wide operating temperature range from -55°C to 125°C.
Compact 9.4 mm width and 4.7 mm height TO-99 metal can package. Slew rate of 0.5 V/μs for accurate signal amplification. RoHS and REACH compliant ensuring environmental standards. Single channel operational amplifier ideal for industrial and laboratory use.
Explore more high-performance Operational Amplifiers and electronic components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the LM741H/NOPB operational amplifier is 1.5 MHz.
It operates with supply voltages ranging from 10V to 22V.
The input offset voltage is 6 mV.
This model has a wide operating temperature range from -55°C to 125°C.
The slew rate is 0.5 V/μs, allowing for accurate signal amplification.
The TO-99 package has a width of 9.4 mm and a height of 4.7 mm.
This operational amplifier is a single-channel device.
The input bias current is 1.5 μA.
Yes, it is compliant with RoHS and REACH environmental standards.
This operational amplifier supports through-hole mounting.
The input offset current is 500 nA.
It belongs to the LM741-MIL series of operational amplifiers.
