Hirose DF40 Series Straight Surface PCB Socket 10-Contact, 2 Row, 0.4 mm Pitch, 30V, 300mA

Free Delivery in India | Lowest Global Shipping Charges

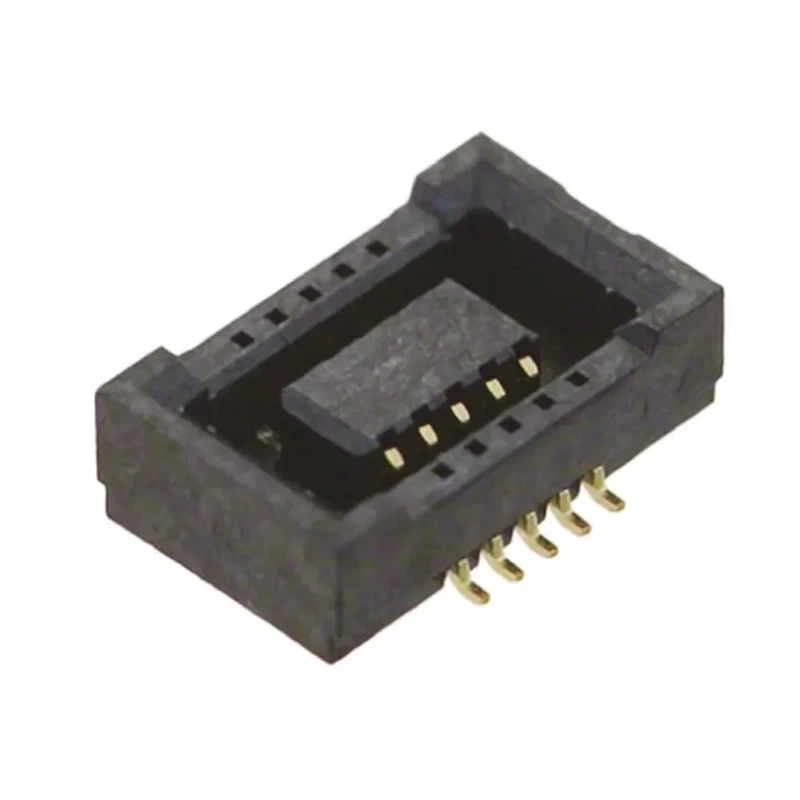

Hirose DF40 Series Straight Surface PCB Socket 10-Contact, 2 Row, 0.4 mm Pitch, 30V, 300mA

Name: Hirose DF40 Series Straight Surface PCB Socket 10-Contact, 2 Row, 0.4 mm Pitch, 30V, 300mA
Brand: Hirose
SKU: 368058
Price: 0.43 USD
Availability: InStock



Category PCB Socket Brand Hirose Condition New

Specifications

Country of Origin	India
Voltage	30V
Brand	Hirose
Orientation	Straight
Current	300mA
Model	DF40
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Copper
Series	DF40
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-35°C
Number of Rows	2
Pitch	0.4mm
Contact Plating	Gold
Number of Contacts	10
Contact Gender	Female
Connector System	Board-to-Board, Board-to-FPC
Stacking Height	4mm
Row Pitch	2.38mm

Key Features

This PCB socket features a high density, low profile Liquid Crystal Polymer housing.
It supports a current of 300 mA and a voltage rating of 30 V.
The connector includes a locking mechanism with an audible click for mating assurance.
Gold-plated copper contacts ensure high reliability and corrosion resistance.
Stacking height is 4 mm allowing for versatile mounting options.
Designed with nickel-plated barriers to prevent solder wicking during assembly.
Guide ribs enable self-alignment of 0.33 mm for precise mating.
Operating temperature range extends from -35°C up to 85°C for broad application use.

Product Description

Hirose DF40C-10DS-0.4V(58) is a Straight Surface PCB Socket from the DF40 Series, featuring a 10-contact, 2-row configuration with a precise 0.4 mm pitch. This connector is designed for reliable board-to-board and board-to-FPC interconnections, commonly used in miniature electronic devices.

The socket housing is made of Liquid Crystal Polymer, offering a high-density and low-profile solution, while the gold-plated copper contacts provide excellent conductivity and oxidation resistance. The connector supports currents up to 300 mA and voltages up to 30 V, suitable for low power signal connections.

Key functional elements include a locking mechanism that produces a tactile click to assure proper mating, and nickel-plated barriers to prevent solder wicking during surface mount assembly processes. The connector system's stack height is 4 mm, facilitating various design layouts requiring compact stacking.

Operational temperature ranges from -35°C to 85°C, making it suitable for diverse industrial and commercial electronics applications. Its guide ribs allow for a self-alignment tolerance of 0.33 mm, ensuring reliable and easy mating. The reinforced structure incorporates shock absorbing ribs to enhance durability against vibration and mechanical impact.

High-density, low-profile design suitable for space-saving electronics. Wide range of stack heights for design versatility. Gold-plated copper contacts for enhanced conductivity and corrosion resistance. Locking mechanism with tactile click for secure mating.

Nickel-plated barriers prevent solder wicking, ensuring reliable solder joints. Guide ribs that facilitate self-alignment during mating. Shock-absorbing ribs protect against mechanical stress and vibration. Contamination-resistant design keeps contacts clean and functional.

This PCB socket is ideal for applications in mobile phones, developer chipsets, LCD displays, notebook PCs, and keyboards, delivering high reliability and compact form factor. Available with various stack heights, it accommodates different mounting requirements for compact electronic device designs.
