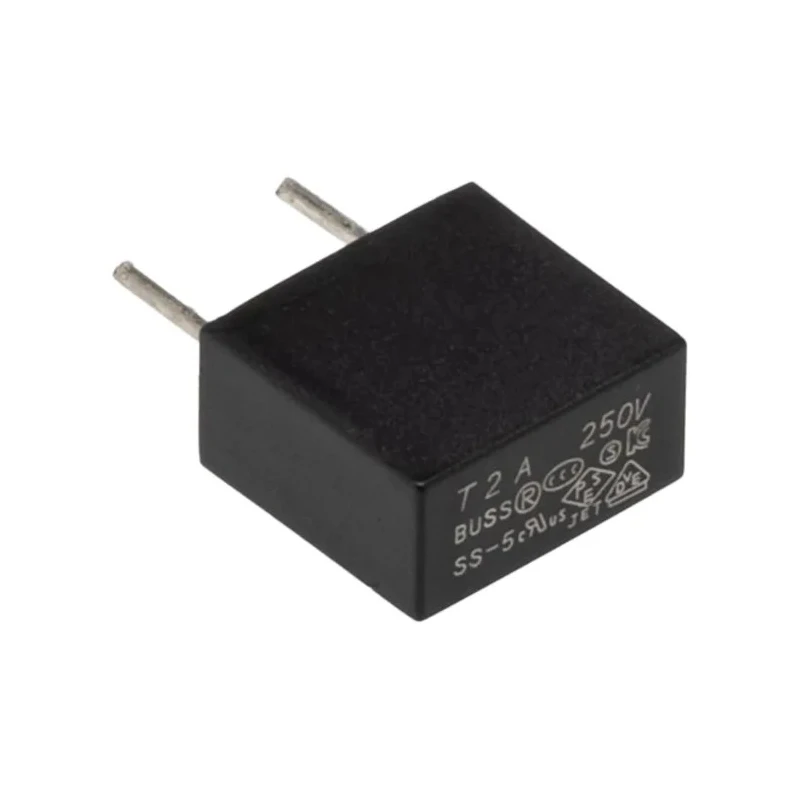

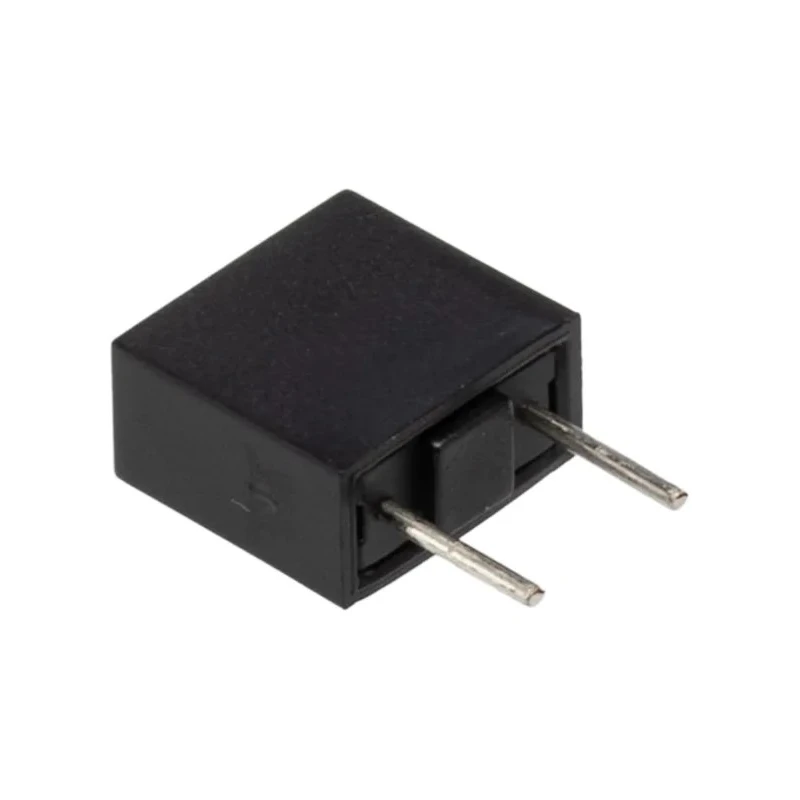

Eaton Time Delay Radial Fuse 2A 250V AC Plastic Body SS-5-2A-BK

Free Delivery in India | Lowest Global Shipping Charges

Eaton Time Delay Radial Fuse 2A 250V AC Plastic Body SS-5-2A-BK

Name: Eaton Time Delay Radial Fuse 2A 250V AC Plastic Body SS-5-2A-BK
Brand: Eaton
SKU: 367247
Price: 1.25 USD
Availability: InStock



Category Fuse Brand Eaton Condition New

Specifications

Country of Origin	China
Voltage	250V ac
Diameter	0.6mm
Brand	Eaton
Body Material	Plastic
Height	8.35mm
Length	8.5mm
Model	SS-5-2A-BK
Width	4.3mm
Current Rating	2A
Series	SS5
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Lead Length	4.3mm
Breaking Capacity	35A
Standards/Approvals	IEC 600680, UL 94V0, RoHS, VDE
Fuse Characteristics	Time Delay
Lead Orientation	Radial

Key Features

The 2A current rating offers precise overcurrent protection for low current circuits.
Time delay (T-speed) characteristic tolerates brief surge currents.
Radial lead orientation enables simple PCB insertion.
Plastic body material meets flammability and safety standards.
Breaking capacity of 35A allows safe interruption of higher fault currents.
Operational temperature range from -40°C to 125°C supports use in warm environments.
Complies with IEC 600680, UL 94V0, RoHS, and VDE standards.
Ideal for protecting control, sensor, and actuator circuits in automation panels and electronics modules.

Product Description

Eaton SS-5-2A-BK is a time delay radial fuse with a 2A current rating and 250V AC voltage rating designed for reliable overcurrent protection on printed circuit board layouts. This fuse features a plastic body that complies with stringent flammability and environment safety standards such as UL 94V0 and RoHS.

The fuse's time delay characteristic (T-speed) enables it to tolerate short inrush currents or transient surges without nuisance blowing, making it suitable for sensitive electronic and control circuits. The radial lead configuration with a diameter of 0.6mm and length of 4.3mm supports through-hole mounting in typical PCB manufacturing and assembly processes.

With a breaking capacity of 35A, this fuse can safely interrupt potentially damaging fault currents, providing reliable protection for automation panels, small power supplies, consumer electronics modules, and sensor/actuator interface boards. Its compact size of 8.5mm length, 4.3mm width, and 8.35mm height makes it well suited for space-constrained applications.

The fuse is rated for operation in environments ranging from -40°C to 125°C, allowing use in warm ambient conditions and demanding industrial settings. It complies with IEC 600680 and VDE standards ensuring consistent quality and safety.

Common industrial and laboratory applications include electrical automation systems, control panels, manufacturing equipment, and retrofit protection for legacy PCB designs. The 2A rating ensures accurate protection for low current systems.

Time delay fuse characteristic enhances reliability and reduces false trips. Radial lead orientation simplifies PCB assembly and mounting. Plastic body meets key safety and flammability certification requirements. High breaking capacity of 35A provides enhanced circuit protection.

Compact dimensions support versatile PCB footprint planning. Wide operating temperature for industrial environments. Compliance with IEC, UL, RoHS, and VDE guarantees global standards adherence. Suitable for use in diverse electrical, automation, and consumer electronics applications.

This product is a key component within the Eaton SS5 series of non-resettable fuses, providing trusted protection in many industrial and commercial electrical circuits. For related parts, browse the Circuit Breakers & Fuse category on EnvMart.
