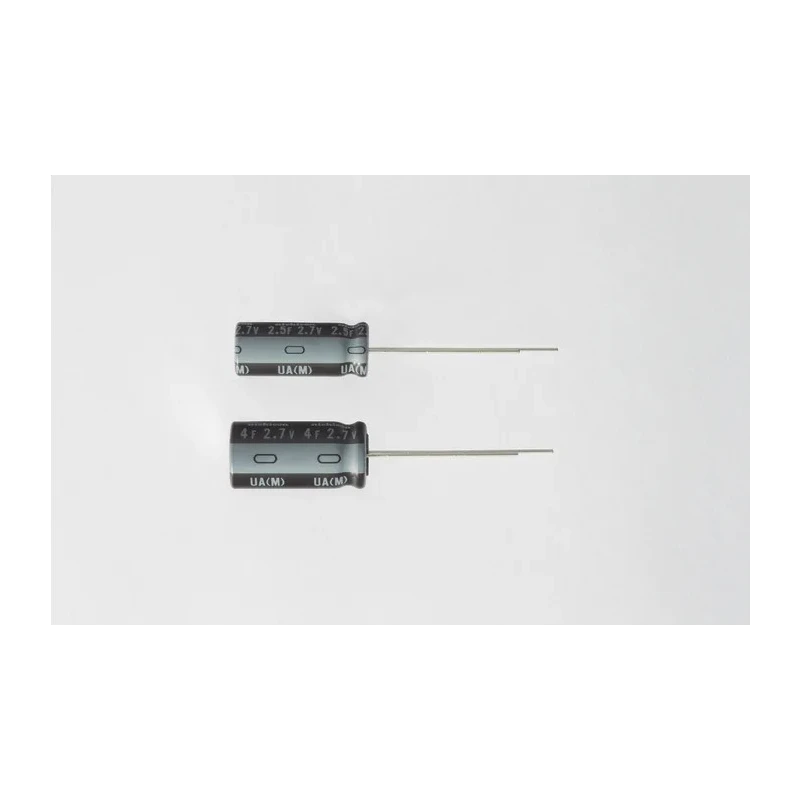

Nichicon 4F Electric Double Layer Supercapacitor ±20% Tolerance 2.7V DC Through Hole Mount JUAT1405MPD
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 2.7V dc |
| Diameter | 10mm |
| Brand | Nichicon |
| Height | 20mm |
| Model | JUAT1405MPD |
| Mount Type | Through Hole |
| Series | JUA |
| Maximum Operating Temperature | 70°C |
| Tolerance | ±20 % |
| Lifetime | 2000 h |
| Capacitance | 4F |
| Minimum Operating Temperature | -40°C |
| Polarity | Polar |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Lead Pitch | 5mm |
| Equivalent Series Resistance ESR | 0.1Ω |
| Capacitor Family | Electric Double Layer |
Key Features
- Rated capacitance of 4 Farads with ±20% tolerance.
- Operating voltage of 2.7 V DC suitable for energy storage.
- Through hole radial lead mounting for secure PCB installation.
- Low Equivalent Series Resistance (ESR) of 0.1 ohm for efficient charge/discharge.
- Wide operating temperature range from -40°C to 70°C.
- Designed for long life with 2000 hours at maximum temperature.
- Polar capacitor with 2 pins spaced at 5 mm lead pitch.
- Complies with RoHS directive for environmental safety.
Product Description
Nichicon JUAT1405MPD is a 4 Farad Electric Double Layer Supercapacitor designed for energy storage applications requiring high capacitance and reliability. Featuring a rated voltage of 2.7 V DC, it supports through hole mounting via radial leads for effective PCB integration.
This supercapacitor offers a capacitance tolerance of ±20%, ensuring performance consistency under varying conditions. The device maintains a low Equivalent Series Resistance (ESR) of 0.1 ohm, facilitating efficient charge and discharge cycles with minimal power loss.
It operates effectively within a temperature range from -40°C up to 70°C, making it suitable for industrial, electronic, and power management systems. With a load life of 2000 hours at 70°C, it provides long-term stability for demanding applications.
Mechanical dimensions include a 10 mm diameter and 20 mm height, with a lead pitch of 5 mm between two pins. Its polar design requires proper orientation during assembly to maintain functional integrity.
Compliant with RoHS standards, this supercapacitor meets environmental safety requirements. Typical uses include backup power supplies, energy harvesting circuits, and other electronic components where rapid charge/discharge and endurance are critical.
Rated 4 F capacitance with ±20% tolerance. Operating voltage of 2.7 V DC suitable for power applications. Through hole mounting with a 5 mm lead pitch and radial leads. Low ESR value of 0.1 ohm improves efficiency. Wide operating temperature range from -40°C to 70°C.
Long operational life of 2000 hours at maximum temperature. Dimensionally compact with 10 mm diameter and 20 mm height. RoHS compliance ensures environmental safety.
This Nichicon Supercapacitor is ideal for applications in electronics manufacturing, industrial automation, and power systems requiring reliable capacitive energy storage. Browse the Nichicon collection on EnvMart to find compatible components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Nichicon JUAT1405MPD has a rated capacitance of 4 Farads with a tolerance of ±20%.
This supercapacitor operates at a maximum voltage of 2.7 V DC, suitable for energy storage applications.
It features a low Equivalent Series Resistance (ESR) of 0.1 ohm, which enhances charging and discharging efficiency.
The Nichicon JUAT1405MPD has a diameter of 10 mm and a height of 20 mm, with a lead pitch of 5 mm between its two pins.
This supercapacitor operates effectively within a temperature range from -40°C to 70°C.
It has a load life of 2000 hours at the maximum temperature of 70°C, ensuring stability for demanding applications.
This model features through hole mounting with radial leads for secure PCB installation.
Yes, it complies with RoHS standards, ensuring environmental safety.
The Nichicon JUAT1405MPD is a polar capacitor, which requires proper orientation during assembly.
Typical applications include backup power supplies, energy harvesting circuits, and other electronic components requiring rapid charge/discharge.
This model has 2 pins, which are spaced at a lead pitch of 5 mm.
It belongs to the Electric Double Layer capacitor family, designed for high capacitance and reliability.
