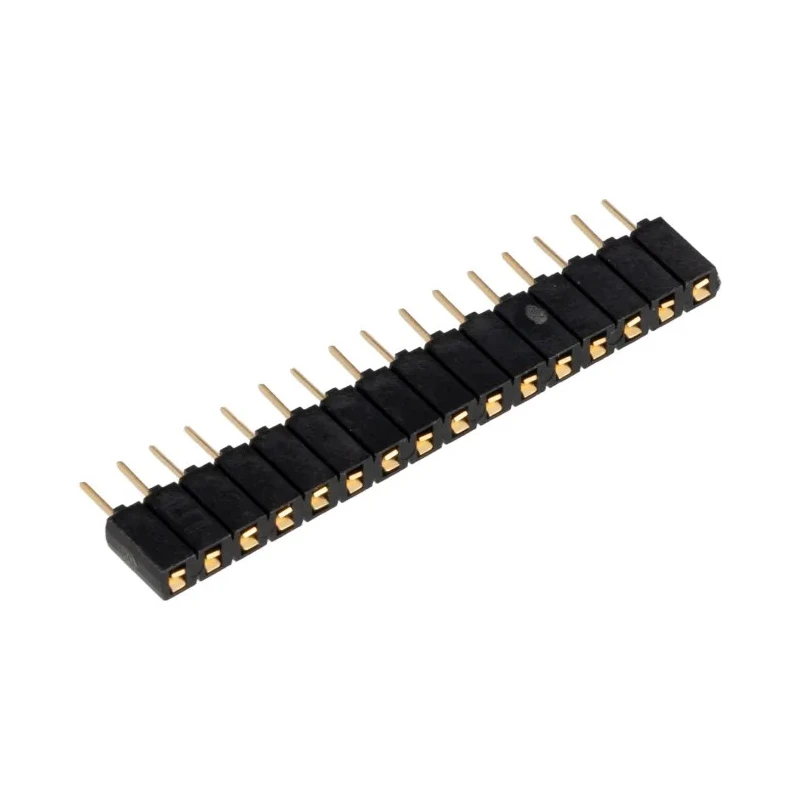

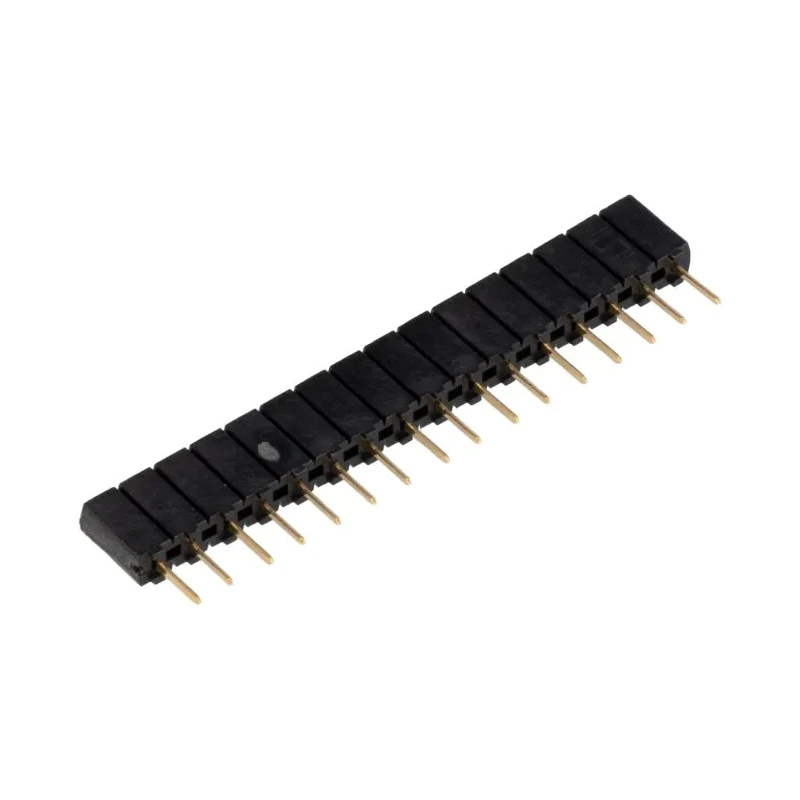

Samtec SSA Series Straight Through Hole PCB Socket 16-Contact 1 Row 2.54 mm Pitch Solder SSA-116-S-G
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV |
| Brand | Samtec |
| Orientation | Straight |
| Current | 12A |
| Model | SSA-116-S-G |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Bronze |
| Series | SSA |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 16 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Features 16 female phosphor bronze contacts for enhanced conductivity.
- Single-row configuration with 2.54 mm pitch for precise spacing.
- Polyester housing provides durable insulation and protection.
- Rated for 12A current and 1kV voltage withstand capability.
- Operates reliably within -55°C to 125°C temperature range.
- Gold-plated contacts ensure corrosion resistance and long-term performance.
- Through-hole mount offers secure and vibration-resistant PCB attachment.
- Straight orientation simplifies circuit board integration.
Product Description
The Samtec SSA-116-S-G SSA Series Straight Through Hole PCB Socket is a high-quality board-to-board connector engineered to provide a dependable electrical interface with 16 female contacts arranged in a single row, each spaced at a 2.54 mm pitch. Its phosphor bronze contacts deliver excellent conductivity, while the gold plating ensures superior corrosion resistance for prolonged reliable operation.
The connector's polyester housing offers robust insulation and protects against electrical hazards during installation and use. It is rated for a current capacity of 12 amps and can safely handle voltages up to 1 kilovolt, making it suitable for a broad range of low to medium power electronic applications.
This through-hole mount socket is designed for secure mechanical connection to printed circuit boards, providing enhanced vibration resistance and stability. The straight orientation facilitates ease of integration into board layouts while the 1-row configuration supports compact designs.
Operating effectively in temperatures ranging from minus 55 °C to plus 125 °C, it meets the demands of industrial environments including CNC machinery, process equipment, and HVAC systems. Its flame-resistant construction limits fire propagation, ensuring safety compliance.
16 female phosphor bronze contacts with gold plating for enhanced conductivity and corrosion resistance. Polyester housing provides safe insulation and mechanical durability. Current rating of 12A and withstand voltage of 1kV suitable for various industrial electronic applications.
Effective operation over a wide temperature range from -55°C to 125°C. Through-hole mount ensures reliable and vibration-proof board attachment. Straight contact orientation for easy PCB integration. Flame-resistant design conforms to safety standards limiting fire spread.
This robust PCB Socket is ideal for use in electronics manufacturing, industrial control systems, and commercial equipment assembly where secure and reliable electrical connections are critical. Choose the Samtec SSA-116-S-G for consistent performance in demanding conditions.
Browse more PCB connectors and sockets on EnvMart to find compatible parts for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 12A, making it suitable for various low to medium power electronic applications.
The SSA-116-S-G is rated for a voltage withstand capability of 1kV, ensuring reliable performance in electrical applications.
It operates effectively within a temperature range of -55°C to 125°C, suitable for industrial environments.
This unit features a through-hole mount, providing a secure and vibration-resistant attachment to printed circuit boards.
This connector has 16 female contacts arranged in a single row, each spaced at a 2.54 mm pitch.
The housing is made of polyester, and the contacts are made of phosphor bronze with gold plating for enhanced conductivity and corrosion resistance.
The contacts in the SSA-116-S-G are arranged in a straight orientation, facilitating easy integration into circuit board layouts.
It uses a solder termination type, which is standard for securing connections on printed circuit boards.
Yes, this model features a flame-resistant design that limits fire propagation, ensuring safety compliance in applications.
The SSA-116-S-G is classified as a board-to-board connector, suitable for connecting two printed circuit boards together.
This product is manufactured in India, ensuring quality standards are met during production.
It is ideal for use in electronics manufacturing, industrial control systems, and commercial equipment assembly where secure electrical connections are critical.
