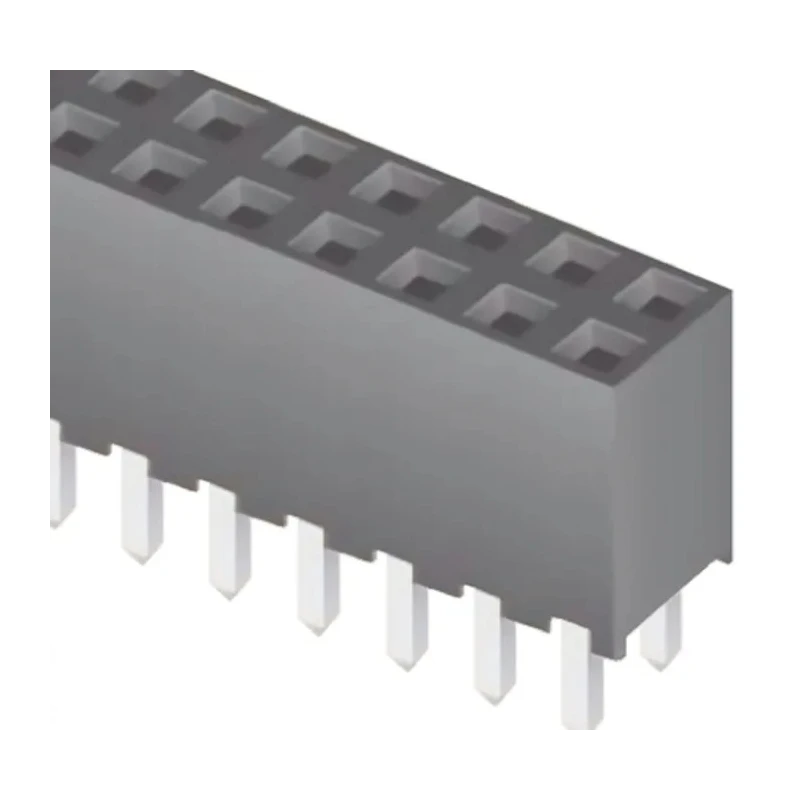

Samtec SQW Series 10-Contact 2 Row 2 mm Pitch Straight Through Hole PCB Socket 500V SQW-105-01-L-D

Samtec SQW-105-01-L-D is a high-performance PCB socket from the SQW Series featuring 10 contacts arranged in 2 rows with 2 mm pitch. This straight orientation, female gender socket is designed for board-to-board applications requiring reliable electrical connections. The housing is constructed from Black Liquid Crystal Polymer (LCP), providing excellent insulation and mechanical strength suitable for demanding use cases.

Rated for 12A current and 500V voltage, this socket supports moderate to high electrical loads. Its contact material is bronze with 0.25 μm gold plating on the contact area, enhancing conductivity and corrosion resistance, while the PCB tails are plated with matte tin for optimal soldering.

The operating temperature range from -55°C to 125°C allows usage in both extreme cold and hot conditions, making it suitable for industrial, laboratory, manufacturing, and power electronics environments. The socket's above board height is 6.35 mm, supporting compact PCB layouts and efficient stacking.

These through-hole mount sockets use Tiger Buy Contacts technology, ensuring robust connections and durability. The package contents consist solely of one PCB socket strip with the stated technical features. Compatible mating headers include TMM SMT and TMM through-hole headers for versatile integration in complex assemblies.

The socket features a straight orientation with female contact gender for board-to-board connections. Housing is made of durable Black Liquid Crystal Polymer (LCP) ensuring ruggedness. Rated for 12A current and 500V voltage suitable for robust electrical applications.

Operating temperature range from -55°C to 125°C supports a wide range of environments. Contacts are bronze material plated with gold for reliable conductivity and corrosion resistance. The above board height of the socket strip is 6.35 mm facilitating compact PCB stacking.

The series uses Tiger Buy Contacts providing 0.25 μm gold plating on contact areas and matte tin plating on PCB tails. Ideal for use in industrial electronic components, power connectors, and circuit board assembly. This socket system enables efficient mechanical insertion and soldering into PCBs with through-hole mount type.
