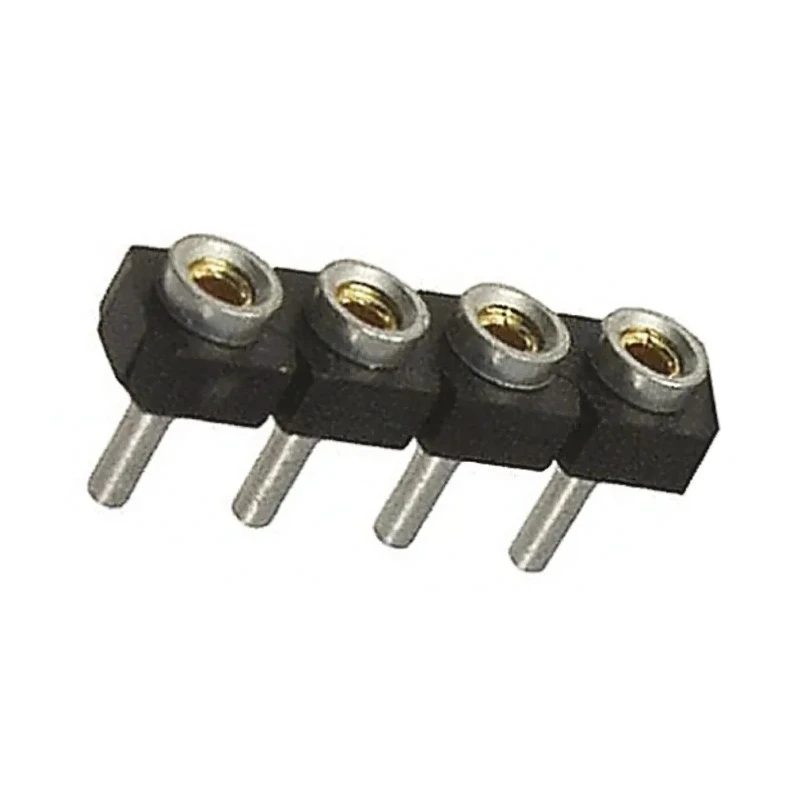

Samtec Straight Through Hole PCB Socket 4-Contact 1 Row 2.54 mm Pitch Solder SL-104-T-10

Samtec SL-104-T-10 is a high-quality straight through hole PCB socket featuring 4 contacts arranged in a single row with a 2.54 mm pitch. This connector is engineered for board-to-board applications, offering a low profile and robust mechanical reliability through its screw-machined socket strips.

The housing is constructed of black glass-filled polyester, which ensures strong mechanical stability and resistance to environmental factors. Contacts consist of phosphor bronze alloy plated with 0.76 μm thick gold over a tin shell, providing excellent conductivity and corrosion resistance.

This socket supports a maximum operating temperature of 125°C and a minimum of -55°C, making it suitable for various industrial, laboratory, and commercial electronic applications requiring stable performance across temperature extremes.

The device supports a continuous current rating of 12 amperes, making it apt for power and data transmission applications in PCB connector systems. The female contact gender ensures compatibility with typical male header strips.

Mounting is designed for through-hole PCB assembly with a straight orientation, facilitating reliable solder connections and ease of installation. The socket is fully RoHS compliant, aligning with modern environmental and regulatory standards.

These sockets are compatible with several header series, such as BBL series (stock 766-6367), BBS series (stock 766-6442), and TS series (stock 765-6414), which enhances their flexibility in electronic design and manufacturing.

Low profile 2.54mm screw-machined socket strips provide strong mechanical and electrical performance. Housing made of black glass-filled polyester for durability and chemical resistance. Phosphor bronze contacts plated with 0.76μm gold over tin shell for corrosion resistance.

Operating temperature range from -55°C to 125°C for wide application use. Supports 12A current rating in board-to-board connector systems. Through-hole mounting and straight orientation for stable PCB installation. Female contact gender compatible with male headers.

RoHS compliant meeting environmental standards. Mates with BBL, BBS, and TS series header terminal strips for versatile connectivity. Ideal for use in electronics manufacturing, industrial machines, laboratory equipment, and commercial electronic devices where reliable PCB socket connections are required.
