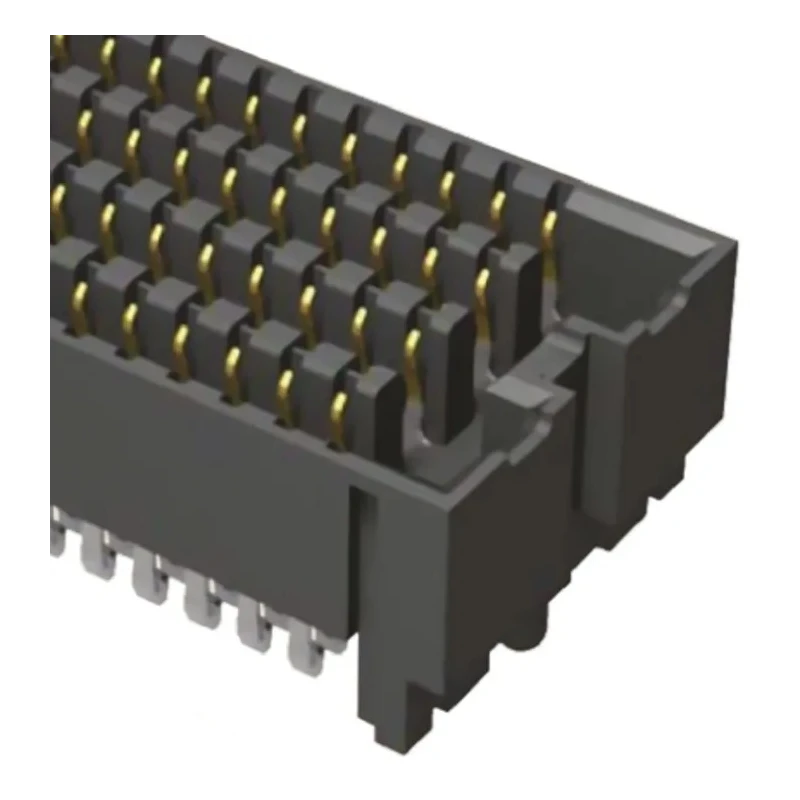

Samtec SEAF Series Straight Surface PCB Socket, 160-Contact, 8 Row, 1.27 mm Pitch, 240V, 2.3A SEAF-20-05.0-S-08-2-A-K-TR

Samtec SEAF-20-05.0-S-08-2-A-K-TR is a straight surface PCB socket designed for board-to-board interconnections, delivering high performance in dense electronic assemblies.

This socket features 160 contacts arranged in 8 rows with a 1.27 mm pitch, enabling compact and reliable connection with high current capacity of 2.3A and operating voltage of 240V.

Manufactured with a liquid crystal polymer housing, it offers excellent mechanical strength and temperature resistance, supporting operating temperatures from -55°C up to 125°C. The SEARAY™ contact system used in this SEAF series ensures high-speed signal integrity up to 12.5 GHz @ -3dB, making it ideal for demanding electronic applications.

Its solder termination and surface mount design simplify installation on printed circuit boards, while the 18.5 mm stacking height provides flexibility in board stacking applications.

The socket sustains a low contact resistance of 5.5 mΩ attributed to copper contacts with a 0.76 μm gold plating on the contact area and matte tin on the tail area. Designed for reliable, high-density board-to-board connections, it is widely used in industrial electronics, communications equipment, and high-frequency applications.

The SEAF series excels in environments requiring robustness and consistent electrical performance across a wide temperature range. No specific approvals or certifications are included with this product, focusing on functional reliability.
