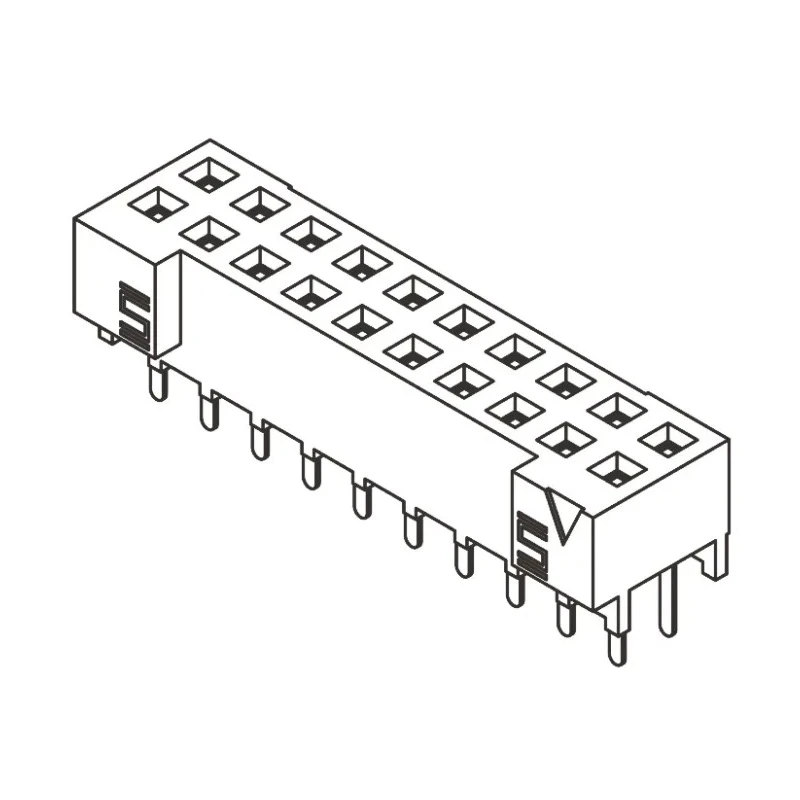

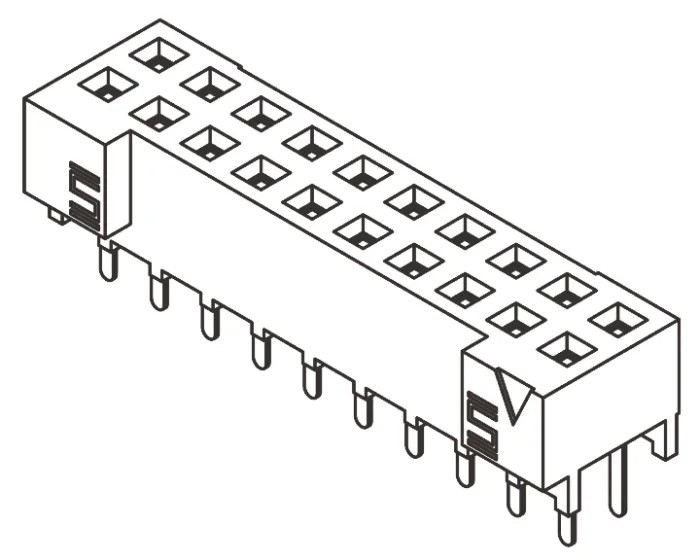

Samtec 30-Contact 2 Row 2 mm Pitch Straight Through Hole PCB Socket Liquid Crystal Polymer Housing S2M-115-01-L-D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 2.6A |
| Temperature range | -55 → 125 °C |
| Model | S2M-115-01-L-D |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | S2M |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Wire-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 30 |
| Connector System | Board-to-Board |
| Stacking Height | 7mm |
| Insulator Material | Black LCP |
Key Features
- The socket features solder termination suitable for through hole mounting.
- It has a current rating of 2.6A and supports operating temperatures from -55°C to 125°C.
- Constructed with black liquid crystal polymer housing for durability.
- Contacts are made from beryllium copper alloy with gold plating for excellent conductivity.
- The socket offers a stacking height of 7mm and a row pitch of 2mm.
- Designed as a board-to-board connector system with straight orientation.
- Suitable for applications requiring high reliability and precise pitch spacing.
Product Description
Samtec S2M-115-01-L-D is a high reliability straight through hole PCB socket featuring 30 contacts arranged in 2 rows with a 2 mm pitch. It is designed for board-to-board or wire-to-board connectivity, ensuring robust electrical connections in electronic assemblies.
The socket utilizes solder termination for through hole mounting and incorporates a black liquid crystal polymer (LCP) housing that provides excellent mechanical strength and thermal stability across a wide temperature range from -55°C to 125°C. The contact material consists of beryllium copper alloy with gold plating that ensures reliable conductivity and corrosion resistance.
Its stacking height is 7 mm, allowing compact and precise board stacking. The straight orientation and 2 mm row pitch make this socket ideal for various industrial, electronics manufacturing, and PCB assembly applications. This component conforms to the S2M series standards, delivering consistent performance for power connectors in demanding environments.
The socket supports a maximum current of 2.6A suitable for various low to medium power electronic applications. Housing and insulator materials are selected for durability and longevity in operational conditions. The solder termination ensures secure mechanical and electrical affixation to PCBs.
Gold plating on contacts enhances signal integrity and reduces contact resistance. Suitable for use in industrial electronics, telecommunications equipment, and instrumentation.
Samtec’s S2M series sockets like this model are widely used in industrial, laboratory, and manufacturing sectors where reliable electrical connections are critical. The product is supplied in a protective tube to facilitate easy handling and assembly.
Explore a wide range of PCB Sockets and connectors on EnvMart to find compatible components for your electronics projects and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The socket has a current rating of 2.6A, making it suitable for various low to medium power electronic applications.
This model supports operating temperatures ranging from -55°C to 125°C, allowing it to function in a wide variety of environments.
The housing is made from liquid crystal polymer (LCP), while the contacts are constructed from beryllium copper alloy with gold plating for enhanced conductivity.
The stacking height of this socket is 7mm, allowing for compact and precise board stacking in electronic assemblies.
This model features 30 contacts arranged in 2 rows with a 2 mm pitch, designed for board-to-board connectivity.
The socket utilizes solder termination, which is suitable for through hole mounting on PCBs.
This socket is designed with a straight orientation, facilitating easy installation in electronic assemblies.
It is suitable for use in industrial electronics, telecommunications equipment, and instrumentation, where reliable electrical connections are critical.
The contact pitch for this model is 2mm, which is designed for precise spacing in board-to-board connections.
The product is manufactured in India, ensuring compliance with local manufacturing standards.
This socket is part of a board-to-board connector system, designed for robust electrical connections in electronic assemblies.
The contacts are plated with gold, which enhances signal integrity and reduces contact resistance.
