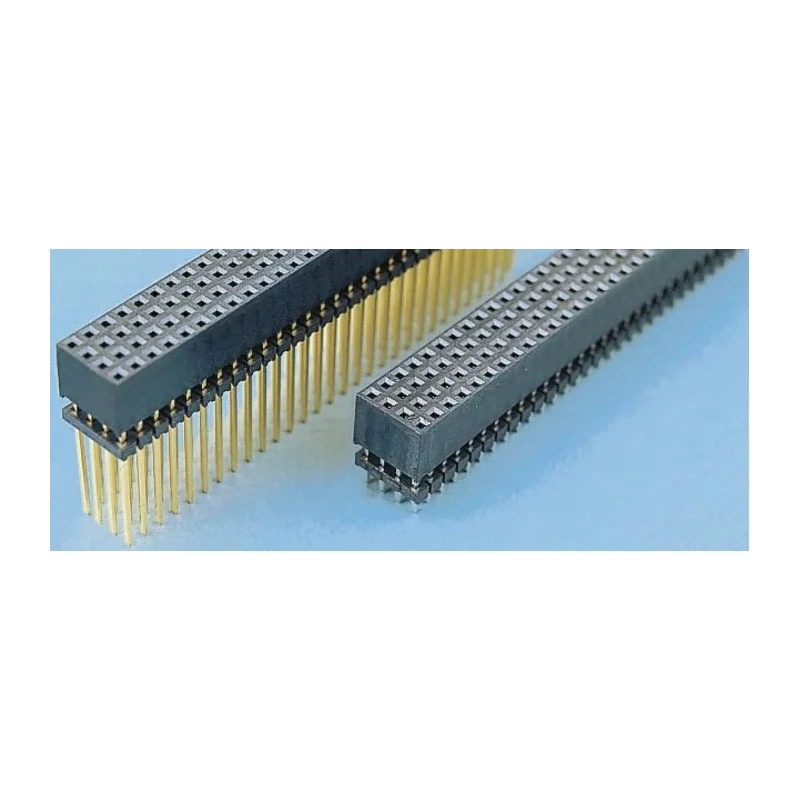

Samtec ESQT Series Straight Through Hole Board-to-Board PCB Socket 120-Contact 4 Row 2 mm Pitch Solder ESQT-130-03-M-Q-368

Samtec ESQT-130-03-M-Q-368 is a high-performance, straight through hole PCB socket from the ESQT series, featuring 120 contacts arranged in 4 rows with a 2 mm pitch. This connector is engineered for board-to-board applications requiring reliable electrical connections in industrial, manufacturing, and electronics assembly environments.

The socket incorporates a black liquid crystal polymer housing material, providing excellent mechanical stability and thermal endurance. Bronze contact material with gold plating ensures superior conductivity and corrosion resistance, maintaining signal integrity in demanding operational conditions.

Rated for a continuous current of 5.8A, this PCB socket supports moderate power loads while operating efficiently within a broad temperature range spanning from -55 degrees Celsius to 125 degrees Celsius. The maximum contact resistance is specified at 10 milliohms, minimizing electrical losses.

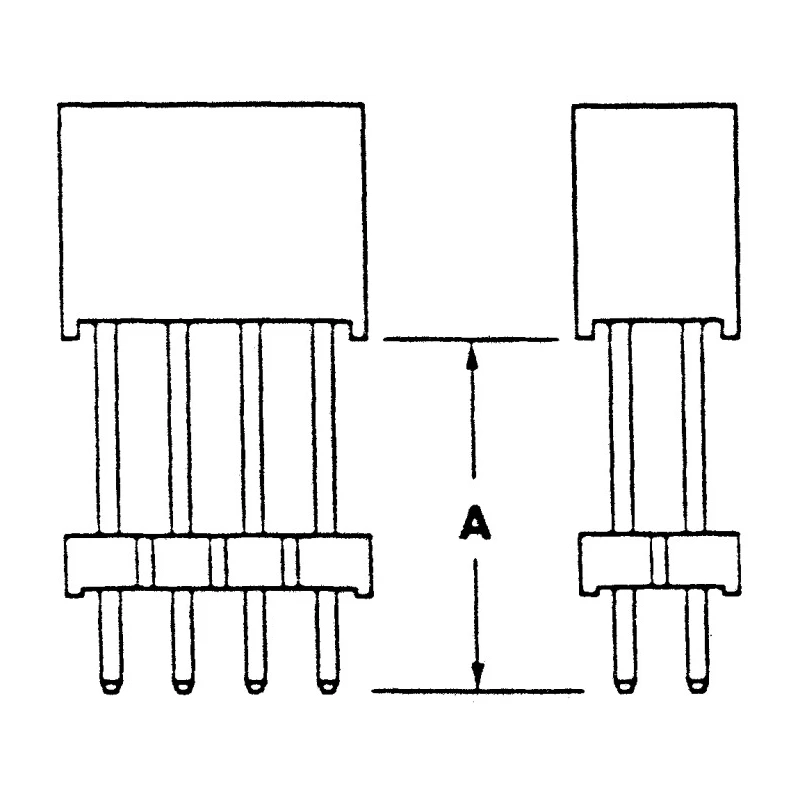

The ESQT series elevated sockets feature multiple lead styles and are compatible with the ATS-30-Q tail shroud, which provides secure mechanical locking for enhanced vibration resistance. This makes the socket ideal for applications in harsh industrial environments where reliable mechanical and electrical performance is critical.

Designed for through hole mounting with a straight orientation, this PCB socket facilitates easy assembly and strong solder connections. Its compact 2 mm pitch and quad row configuration enable high-density PCB designs while ensuring robust interconnection performance.

The product is RoHS compliant, underscoring its suitability for environmentally conscious manufacturing processes. This socket is part of the PC104 range and caters to industries spanning electronics manufacturing, industrial automation, and water treatment systems.

Features a 2 mm pitch and 4 rows for high-density mounting. Constructed with a liquid crystal polymer housing for heat resistance and durability. Gold-plated bronze contacts ensure low resistance and excellent conductivity.

Designed for through hole mounting with straight orientation. Rated for a maximum current of 5.8A suitable for robust power requirements. Operates reliably across a wide temperature range from -55°C to 125°C. Offers contact resistance capped at 10 mΩ for efficient signal integrity.

RoHS compliant, meeting environmental and safety standards. Ideal for high vibration industrial environments and board-to-board applications. Explore more PCB Sockets and connectors at EnvMart for reliable electronic component integration in professional applications.
