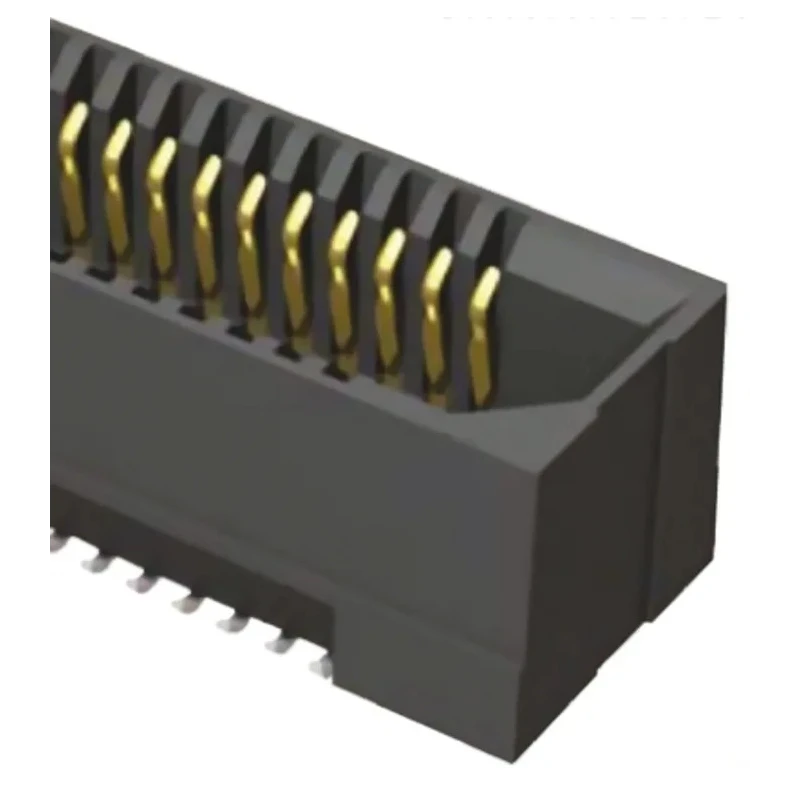

Samtec Series Straight Surface PCB Socket, 100-Contact, 2 Row, 0.8 mm Pitch, 200V, 1.4A, Black Liquid Crystal Polymer ERF8
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 200V |
| Brand | Samtec |
| Orientation | Straight |
| Operating Temperature | -55 → 125 °C |
| Current | 1.4A |
| Model | ERF8 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | ERF8 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Contact Plating | Gold |
| Number of Contacts | 100 |
| Connector System | Board-to-Board |
| Stacking Height | 18mm |
| Row Pitch | 4.5mm |
| Insulator Material | Black LCP |
Key Features
- Constructed with black liquid crystal polymer housing for durability.
- Contacts made of beryllium copper alloy with gold plating for reliable conductivity.
- Surface mount type with straight orientation suitable for automated assembly.
- Operational temperature range from -55°C to 125°C ensures performance in harsh environments.
- Stacking height of 18 mm supports compact PCB designs.
- Mates with ERM8 Series headers for versatile applications.
- Row pitch of 4.5 mm enhances connector density.
- Ideal for industrial, electronic, and communication equipment assemblies.
Product Description
Samtec ERF8 Series Straight Surface PCB Socket, model ERF8, is a high-performance 100-contact, 2-row board-to-board connector designed for surface mounting on PCBs. Featuring a pitch of 0.8 mm, it supports currents up to 1.4A and voltages up to 200V, suitable for compact electronic assemblies.
The connector is built with a rugged black liquid crystal polymer (LCP) housing, ensuring durability and thermal stability in operating temperatures ranging from -55°C to 125°C. Its contacts are crafted from beryllium copper alloy with 0.76 µm gold plating on the edge rate contacts and tin plating on PCB tails, delivering excellent conductivity and resistance to corrosion.
Its straight orientation and stacking height of 18 mm allow it to fit in closely packed PCB arrangements, maintaining high signal integrity and mechanical stability. This connector mates perfectly with the ERM8 Series headers, providing an efficient solution for board-to-board interconnection in various industrial, laboratory, telecommunications, and manufacturing applications.
The robust construction and precise pitch make the ERF8 Series ideal for use in high-speed electronic devices and equipment requiring reliable and compact connector systems. Rated for a maximum temperature of 125°C, it ensures stable operation in demanding environments.
Black liquid crystal polymer housing provides mechanical strength. Beryllium copper alloy contacts with gold plating ensure reliable signal transmission. Supports a wide temperature range from -55°C to 125°C. Surface mount technology for efficient PCB assembly.
Stacking height of 18 mm suitable for dense electronic layouts. Pitch of 0.8 mm and 2-row design maximize contact density. Compatible with ERM8 Series headers for board-to-board connection. Ideal for industrial, electronic component manufacturing, and communication equipment.
This ERF8 Series PCB Socket supports enhanced production efficiency and product reliability in electronics manufacturing and is a vital component for advanced PCB connector solutions. Browse the Electronics Components category at EnvMart for related connectors, sockets, and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating of this PCB socket is 200V.
This model supports a current capacity of up to 1.4A.
The operating temperature range for this connector is from -55°C to 125°C.
The contacts are made from beryllium copper alloy and feature gold plating for reliable conductivity.
The pitch size of this PCB socket is 0.8 mm.
This model has a total of 100 contacts.
The stacking height of this connector is 18 mm.
Yes, this connector is designed for surface mount applications.
This model uses solder termination.
This connector mates with the ERM8 Series headers.
The orientation of this PCB socket is straight.
This connector is suitable for industrial, electronic component manufacturing, and communication equipment applications.
