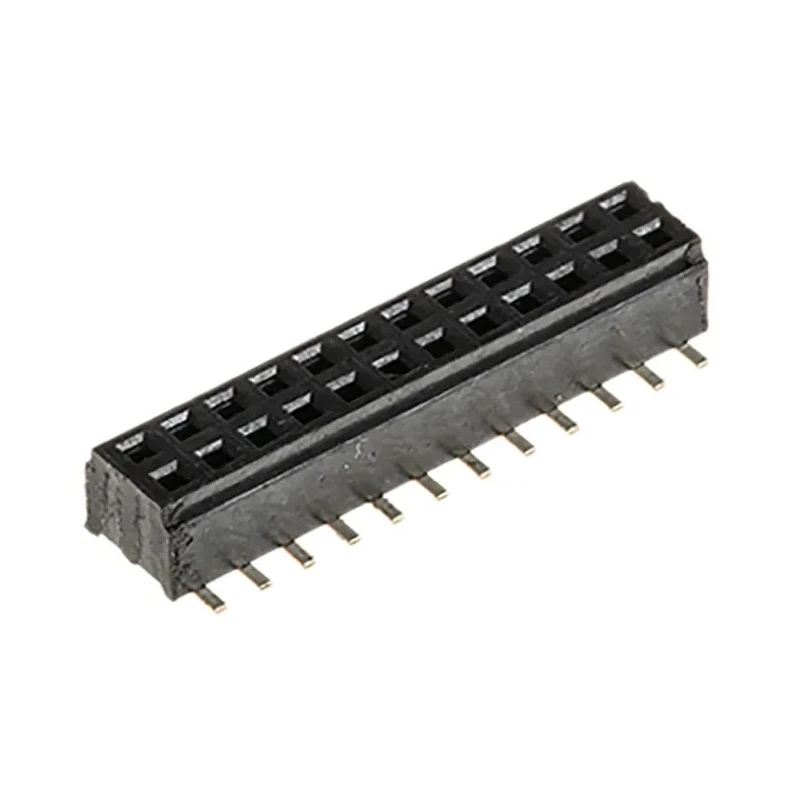

Samtec Straight Surface 24-Contact 2-Row Board-to-Board PCB Socket 1mm Pitch 270V Current 12A CLM-112-02-L-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 270V |
| Brand | Samtec |
| Orientation | Straight |
| Operating Temperature | -55 → 125 °C |
| Current | 12A |
| Model | CLM-112-02-L-D |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | CLM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1mm |
| Contact Plating | Gold |
| Number of Contacts | 24 |
| Connector System | Board-to-Board |
| Insulator Material | Black LCP |
Key Features
- Supports a current rating of 12 Amperes at 270 Volts.
- Constructed with a black Liquid Crystal Polymer housing for high durability and thermal stability.
- Contacts made of bronze material with 0.25 μm gold plating for reliable electrical conductivity.
- Operates reliably within a temperature range from -55°C to 125°C.
- Low profile design with a height of only 2.26 mm suitable for compact PCB assemblies.
- Features a straight orientation suitable for efficient board-to-board connections.
- Compatible with Samtec FTMH Series Headers for versatile application.
- Designed to support rugged SMT applications with micro socket technology.
Product Description
The Samtec CLM-112-02-L-D is a high-performance straight surface mount PCB socket designed for board-to-board connections with 24 contacts arranged in 2 rows with a 1 mm pitch.
This PCB socket features a Liquid Crystal Polymer (LCP) housing in black, providing excellent thermal and chemical resistance. Its bronze contacts are plated with 0.25 micrometer gold to ensure low contact resistance and enhanced durability.
Rated for a current of 12 Amperes at 270 Volts, the CLM series socket operates reliably across a wide temperature range from -55°C to 125°C. The low profile height of 2.26 mm facilitates integration into compact and dense PCB layouts without sacrificing performance.
Its solder termination type and surface mount configuration enable efficient automated assembly processes. The straight orientation and board-to-board connector system design it for seamless mating with compatible headers, specifically the FTMH series from Samtec.
Applications for this PCB Socket include industrial electronics, telecommunications, instrumentation, and other high-reliability situations where rugged micro sockets are required.
Supports up to 12A current and 270V voltage. High durability black LCP housing. Gold-plated bronze contacts ensure excellent conductivity. Wide operating temperature range: -55°C to 125°C. Low profile height suitable for compact boards.
Surface mount solder termination for automated assembly. Compatible with Samtec FTMH Series Headers. Explore the range of Samtec PCB connectors and sockets at EnvMart for trusted industrial-quality components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 12 Amperes.
The socket is rated for a maximum voltage of 270 Volts.
It operates reliably within a temperature range from -55°C to 125°C.
The housing is made of black Liquid Crystal Polymer, and the contacts are made of bronze with 0.25 μm gold plating.
It features a 1 mm pitch with 24 contacts arranged in 2 rows.
The termination type is solder, suitable for surface mount applications.
It is compatible with Samtec FTMH Series Headers for versatile applications.
The socket has a low profile height of only 2.26 mm.
The country of origin for this product is India.
It is designed for industrial electronics, telecommunications, instrumentation, and other high-reliability applications.
It uses a board-to-board connector system for efficient connections.
This model belongs to the CLM series of PCB sockets.
