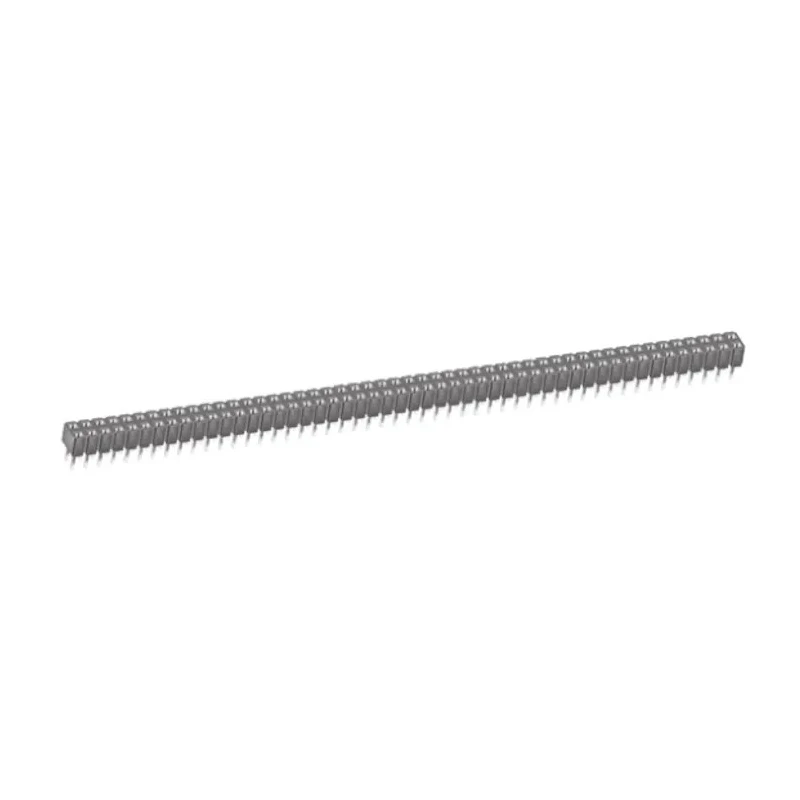

Samtec CES Series 100-Contact 2 Row 2.54 mm Pitch Straight Through Hole PCB Socket CES-150-01-T-D

Samtec CES-150-01-T-D is a high-performance PCB socket from the CES Series, designed for board-to-board connections with 100 contacts arranged in 2 rows. This straight through hole PCB socket features a 2.54 mm pitch, making it ideal for standard electronic assemblies.

The socket housing is made from black glass filled polyester, providing excellent mechanical strength and thermal stability. Contacts are fabricated from bronze with a matte tin plating for corrosion resistance and enhanced conductivity. The connector supports AC/DC currents up to 12A and voltages as high as 333V, suitable for demanding electrical applications.

Designed for use in industrial, electronics manufacturing, and commercial equipment, this socket operates effectively across a wide temperature range from -55°C to 105°C, ensuring reliability in varying environment conditions. Its low profile and 3.25 mm solder tails facilitate straightforward PCB assembly with through hole mounting, contributing to durable and consistent electrical connection.

Key compatibility includes TLW series low profile square post headers, TSM series square post headers, and TSW series square post headers, allowing seamless integration into diverse PCB configurations.

Durable black glass filled polyester housing resists mechanical stress and high temperatures. Phosphor bronze contacts with matte tin plating optimize electrical performance and longevity. Wide operating temperature range suitable for harsh industrial environments.

Supports high current (12A) and voltage (333V) operation for robust power transmission. Low profile design with 3.25 mm solder tail supports efficient PCB soldering and reliable contact. Through hole termination ensures secure mechanical and electrical connection to PCB.

RoHS compliant for environmentally responsible manufacturing. Compatible with multiple header series to provide flexible design options.

This Samtec CES Series PCB socket is widely used in electronics, power connectors, telecommunications, and industrial control systems. It contributes to enhanced system reliability and efficient electrical performance.
