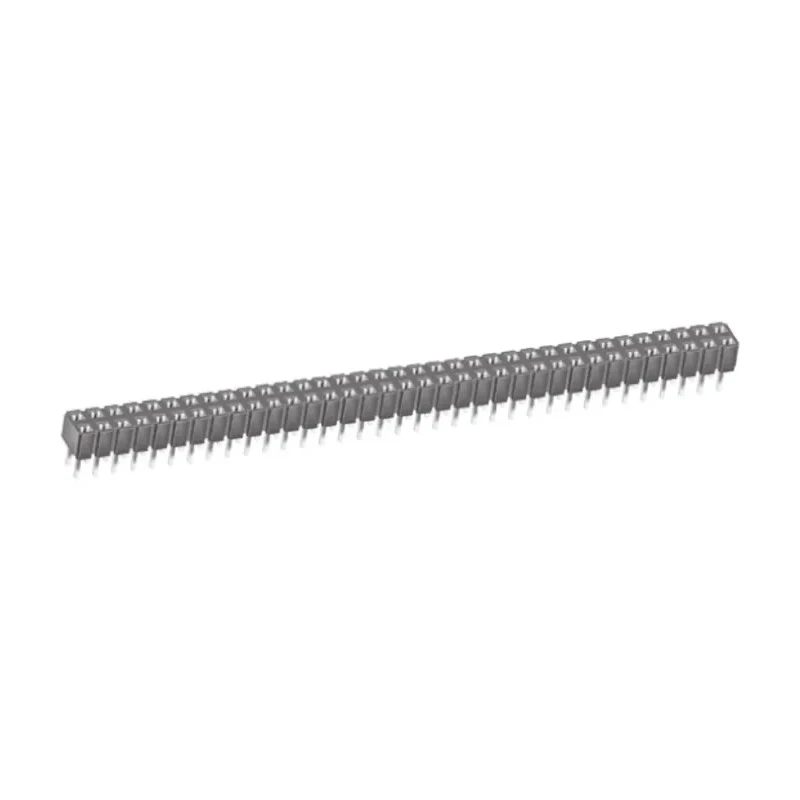

Samtec CES Series Straight Through Hole PCB Socket 70-Contact 2 Row 2.54mm Pitch Through Hole CES-135-01-T-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 333V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 12A |
| Model | CES-135-01-T-D |
| Mount Type | Through Hole |
| Housing Material | Black Glass Filled Polyester |
| Contact Material | Bronze |
| Series | CES |
| Termination Type | Through Hole |
| Maximum Operating Temperature | 105°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Number of Contacts | 70 |
| Connector System | Board-to-Board |
| TLW series low profile square post headers | see stock number 765-6168 typically |
| TSM series square post headers | see stock number 765-6613 typically |
| TSW series square post headers | see stock number 767-1044 typically |
Key Features
- Low profile design with 3.25 mm solder tail for easy PCB mounting.
- Made of black glass filled polyester housing for durability.
- Phosphor bronze contacts with matte tin plating ensure reliable connection.
- Rated for 12 A current and 333 V voltage for robust electrical performance.
- Supports operating temperature from -55°C to 105°C for versatile applications.
- Through hole termination and straight orientation for secure mounting and connection.
- Compatible with TLW, TSM, and TSW series square post headers for board-to-board connections.
- RoHS compliant ensuring environmentally safe manufacturing standards.
Product Description
Samtec CES-135-01-T-D is a straight through hole PCB socket featuring 70 contacts arranged in 2 rows with a 2.54 mm pitch, designed for board-to-board electrical connections.
This CES series socket strip has a low profile design with a 3.25 mm solder tail, suitable for durable and compact PCB assembly. Its black glass filled polyester housing provides excellent mechanical strength and thermal resistance.
The contact material is phosphor bronze plated with matte tin, providing reliable conductivity and resistance to corrosion. It supports a current rating of 12 A and a voltage rating of 333 V, making it suitable for demanding electronic applications.
Its operating temperature range from -55°C to +105°C ensures performance reliability under harsh industrial and electronic environments. The socket features a through hole termination type with a straight orientation, facilitating secure and stable PCB mounting.
It is compatible with several header types including TLW series low profile square post headers, TSM series square post headers, and TSW series square post headers, allowing versatile board-to-board connectivity options.
The product complies with RoHS directives for hazardous substance control, ensuring environmental safety and regulatory compliance. Low profile design with 3.25 mm solder tail for effective PCB integration. Housing constructed from black glass filled polyester for durability.
Contacts made from phosphor bronze with matte tin plating for corrosion resistance. Electrical ratings: 12 A current, 333 V voltage. Wide operating temperature range from -55°C to 105°C. Through hole termination with straight orientation for secure mounting.
Compatible with multiple series of square post headers for board-to-board setups. RoHS compliant for environmental safety. This Samtec CES-135-01-T-D PCB Socket is ideal for industrial, electronics manufacturing, telecommunications, and other applications requiring reliable board-to-board connections.
Explore more high-quality PCB connectors and sockets in the Electronics & Electricals category at EnvMart for integrated electronics solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 12 A and a voltage of 333 V, ensuring robust electrical performance for various applications.
The CES-135-01-T-D supports an operating temperature range from -55°C to +105°C, making it suitable for diverse environments.
It features a housing made of black glass filled polyester for durability, and the contacts are made from phosphor bronze with matte tin plating for reliable conductivity.
This socket has 70 contacts arranged in 2 rows, designed for effective board-to-board connections.
The contact pitch for this model is 2.54 mm, which is standard for many PCB applications.
The CES-135-01-T-D uses a through hole termination type, which facilitates secure mounting on PCBs.
Yes, this model is RoHS compliant, ensuring it meets environmental safety standards regarding hazardous substances.
It is compatible with TLW, TSM, and TSW series square post headers for versatile board-to-board connections.
This socket features a straight orientation, which aids in secure mounting and connection during PCB assembly.
The weight of this model is not specified in the provided data. Please refer to the manufacturer for detailed specifications.
This model is ideal for industrial, electronics manufacturing, telecommunications, and other applications requiring reliable board-to-board connections.
The CES-135-01-T-D socket is manufactured in India.
