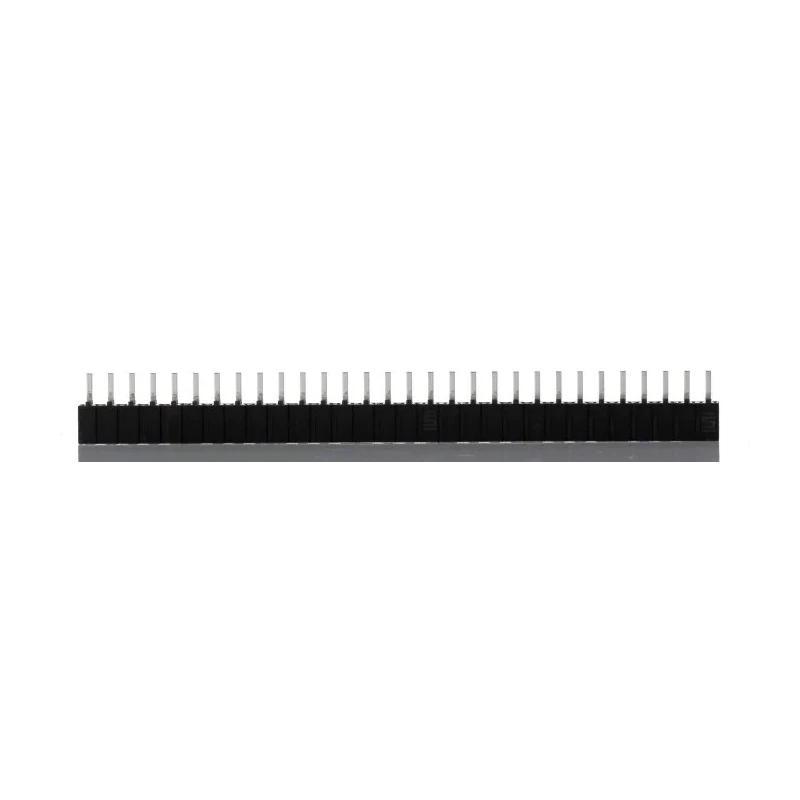

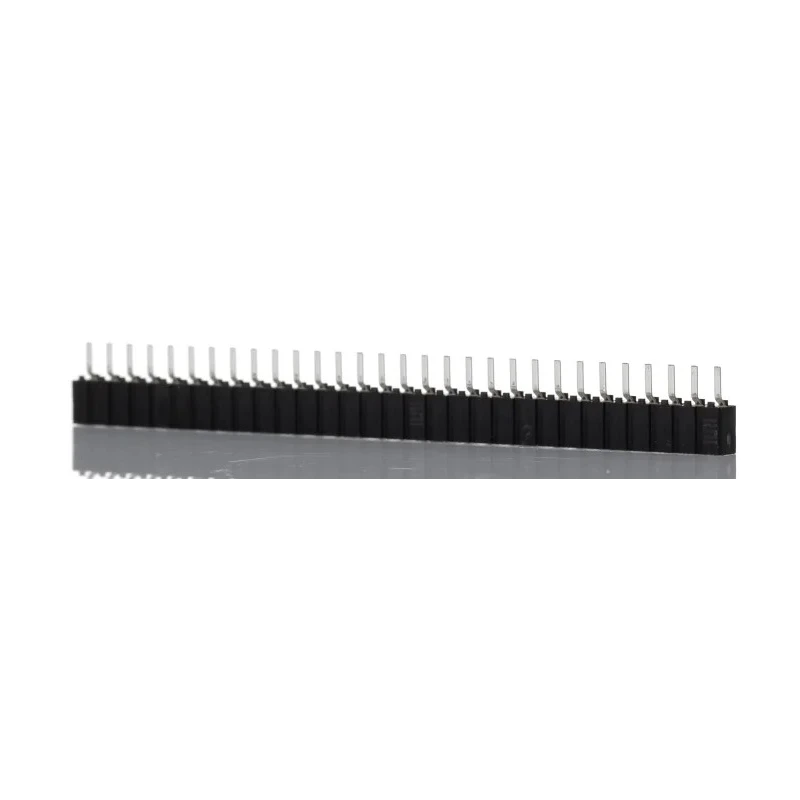

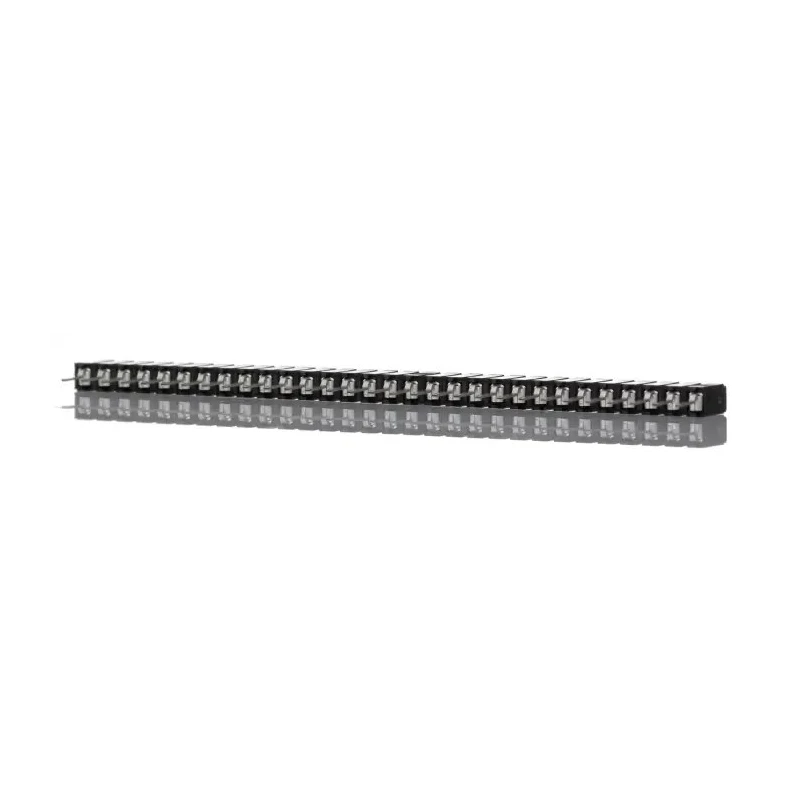

Samtec CES Series Straight Through Hole PCB Socket 30-Contact 1 Row 2.54 mm Pitch 12A Current Rating CES-130-01-T-S

Name: Samtec CES Series Straight Through Hole PCB Socket 30-Contact 1 Row 2.54 mm Pitch 12A Current Rating CES-130-01-T-S
Brand: Samtec
SKU: 366404
Price: 4.38 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	400V ac
Brand	Samtec
Orientation	Straight
Current	12A
Model	CES-130-01-T-S
Mount Type	Through Hole
Housing Material	Black Glass Filled Polyester
Contact Material	Bronze
Series	CES
Termination Type	Through Hole
Maximum Operating Temperature	105°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	2.54mm
Standards/Approvals	RoHS
Contact Plating	Matt Tin
Number of Contacts	30
Connector System	Board-to-Board

Key Features

Designed for reliable board-to-board connections with 30 contacts in a single row.
Features a 2.54 mm pitch suitable for standard PCB layouts.
Made with black glass filled polyester housing for durability.
Bronze contacts plated with matt tin provide excellent conductivity and corrosion resistance.
Rated for 12A current and 400V AC voltage applications.
Through hole termination ensures secure mechanical and electrical connection.
Operating temperature range from -55°C to 105°C enables use in harsh environments.
Compliant with RoHS standards ensuring environmental safety.

Product Description

The Samtec CES-130-01-T-S is a high-quality PCB socket designed for straight through hole mounting on printed circuit boards, offering a reliable connection for industrial and electronic applications. Featuring 30 contacts arranged in a single row with a 2.54 mm pitch, it facilitates efficient board-to-board connections with a robust current rating of 12A.

This socket is constructed with a black glass filled polyester housing that offers enhanced mechanical stability and heat resistance. The contact material is bronze, providing excellent electrical conductivity and durability, while the matt tin plating helps resist corrosion for long-term reliable performance.

With a voltage rating of 400V AC and an operating temperature range from -55°C to 105°C, this PCB socket is suitable for use in varied environments including industrial automation systems, electronic devices, and mechanical applications where secure and durable board connections are essential.

The through hole termination type ensures a strong mechanical bond between the socket and PCB, reducing the risk of connection failure under mechanical stress. The connector system is designed specifically for board-to-board applications, enhancing performance in electrical equipment requiring efficient contact configurations.

Reliable 12A current capacity for demanding applications. 30-contact single row design enables compact board layouts. Durable black glass filled polyester housing provides stability and heat resistance. Bronze contact material with matt tin plating ensures conductivity and corrosion resistance.

Wide operating temperature range from -55°C to 105°C suits harsh environments. Compliant with RoHS standards for environmental safety. Through hole mount for secure mechanical and electrical connection.

This Samtec CES series PCB socket is ideal for industrial automation, electronic device manufacturing, HVAC control systems, and other sectors where secure and consistent electrical connections are critical. Its robust design and electrical specifications make it a dependable choice for high-voltage and high-current requirements in commercial and industrial applications.
